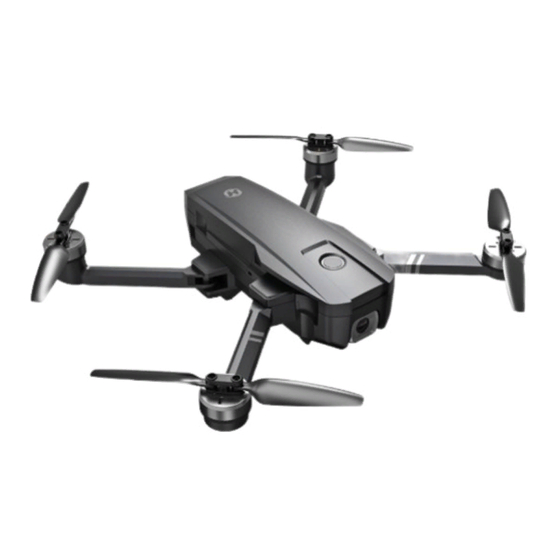

- Page 1 Instructions For Use Gebrauchsanweisung V 4.0 HS720-4K www.holystone.com +1(855) 888-6699 eu@holystone.com (EU) usa@holystone.com (USA) ca@holystone.com (CA)
- Page 3 English 01-44 Deutsch 45-85...
-
Page 4: Table Of Contents
Contents 1.0 Disclaimer&Warning ..................2.0 Safety Guidelines ..................3.0 Maintenance ....................4.0 Package Contents ..................5.0 Drone Details ....................6.0 Transmitter Details 6.1 Transmitter Functions ................6.2 LCD Screen Functions ................6.3 Low Battery Warning ................6.4 Mode Switch ..................... 7.0 Installation 7.1 Drone Battery .................. - Page 5 10.0 Functions Details 10.1 Camera Angle Adjustment ............... 10.2 Return to Home ..................10.3 Optical Flow Positioning ..............11.0 APP Operation Instruction 11.1 Operation Interface ................11.2 Follow Me .................... 11.3 Point of Interest .................. 11.4 Headless Mode ................... 11.5 TapFly ....................11.6 Take Photo/ Video ................
-
Page 6: Disclaimer&Warning
1.0 DISCLAIMER & WARNING 1. Please read this Disclaimer & Warning and Safety Guidelines carefully before using our product. This product is not recommended for people under the age of 16. You hereby agree to this disclaimer and signify that you have read it thoroughly by using this product. - Page 7 ④ Please perform a thorough check of the product before each use. Inspect the integrity of the parts, any signs of cracks and wear off on the propellers, battery power and effectiveness of the indicator, etc. If there is any problem found after checking the drone, please refrain from using it until the problem is resolved.
- Page 8 2.3 Operation Requirements ① DO NOT use this product to follow any moving vehicles. ② During the flight, turn off the motors only in an emergency. ③ When the battery runs low, return the drone back to your starting point. ④...
- Page 9 ⑥ If the device is not going to be used for an extended period of time, please remove batteries to prevent potential damage to the drone from battery leakage. ⑦ Only use the USB charging cable that comes with the drone to charge the battery.
-
Page 10: Maintenance
3.0 MAINTENANCE ① Clean the drone after each use with a clean, soft cloth. ② Avoid prolonged exposure to direct sunlight and avoid the buildup of heat on the drone or batteries. ③ This device is not waterproof and must not be submerged or subjected to water under any circumstance. -
Page 11: Package Contents
4.0 PACKAGE CONTENTS Drone Transmitter Drone Battery USB Charging Propeller Charger Hub Cable Instructions For Use Gebrauchsanweisung V 4.0 HS720-4K www.holystone.com +1(855) 888-6699 eu@holystone.com (EU) usa@holystone.com (USA) ca@holystone.com (CA) Screwdriver Instructions For Use -06-... -
Page 12: Drone Details
5.0 DRONE DETAILS Propeller A Propeller B Propeller B Short-press: Turn on Long-press: Turn off Propeller A HD Camera Lights Vision Positioning Lens Drone Battery Battery Indicator -07-... -
Page 13: Transmitter Details
6.0 TRANSMITTER DETAILS 6.1 Transmitter Functions Phone Holder One Key Takeoff/ Landing Return to Home Right Joystick Left Joystick Unlocking/Locking Power Switch LCD Screen Folded Handle - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Camera Angle Adjustment Short-press: Take Photo... - Page 14 •GPS Mode Switch When turning on the transmitter, the default mode is the GPS Mode. Turn off GPS by sliding GPS switch. Check the icon “ ” or “ ”on the LCD screen to confirms GPS status. •Return to Home (RTH) Press the button to start the RTH, the transmitter makes a beep sound and the drone will fly back to the recorded Home Point.
-
Page 15: Lcd Screen Functions
6.2 LCD Screen Functions Return to Home (RTH) Signal Strength Drone Transmitter Battery Level Battery Level Photo/ Video Distance Against High/ Low Home Point Speed Mode Amount Altitude against Transmitter GPS Mode Home Point Throttle Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6.3 Low Battery Warning Pic. -
Page 16: Mode Switch
6.4 Mode Switch 6.4.1 MODE 2 (Left hand throttle MODE 2 will be default setting.) Left Joystick Right Joystick Forward Ascend Descend Down Backward Down Left Right Right Left Fly to Fly to Rotate Left Rotate Right Left Right - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6.4.2 MODE 1 ①... -
Page 17: Installation
7.0 INSTALLATION 7.1 Drone Battery Push the battery into the battery compartment at the rear of the drone. Make sure that you hear a click sound indicating the battery is firmly installed. Attention: ・Before installing the battery, please remove the insulation gasket from the battery. -
Page 18: Propellers
7.2 Propellers Installation HEAD The drone will not fly unless the correct propeller is installed on the correct motor shaft. See illustration above. An “A” “B” is printed on the back of each propeller. Lock the propeller to the motor shafts with screws rotating each screw clockwise. -
Page 19: Tf Card
7.3 TF Card HEAD As shown in the above figure, place drone on the backside and slide the TF card (not included) into the TF slot on the left side of the fuselage. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7.4 Antenna There is a buckle on the antenna, please follow the steps shown above to open the antenna. -
Page 20: Phone Holder
7.5 Phone Holder 1. Pull out the mobile phone holder upwards completely (Pic. 3). Pic. 3 2. Tilt the holder 30 degrees towards you and then you will hear a click sound (Pic. 4). Pic. 4 3. Rotate and fix the support board in place (Pic. -
Page 21: Transmitter Battery
7.6 Transmitter Battery ② ① ③ (Not included) Step 1: Unfold the hand sticks and open the battery cover. Step 2: Install 2*AA batteries into the battery compartment according to the given polarity. Step 3: Close the battery compartment . ・Insert batteries with correct polarity. -
Page 22: Charging
8.0 CHARGING USB Adapter (5V/2.0A) Charging Indicator Light ① Power Bank Power Indicator Light Charging Indicator Light ② ① Connect the Battery, Charger Hub and USB Charging Cable. ② Connect the USB Charging Cable with Power Bank or a USB Adapter (5V/2.0A) for charging. -
Page 23: Operation Guide
9.0 OPERATION GUIDE 9.1 Download APP Android APP on Google play Scan the QR code, corresponding to either App Store™ or Google Play™ Store and download the Ophelia GO app for free. Required Operating Systems: iOS 9.0 or later/Android 5.0 or later 9.2 Connect to Wi-Fi Connect your phone to the Wi-Fi network created by the drone. -
Page 24: Paring
All of the operations shown in this manual are demonstrated using MODE 2. 9.3 Pairing ① Simultaneously hold the “ “ button and slide the power switch to the right to power on the transmitter. It will beep 2 times and the signal icon “... -
Page 25: Initialization Detection
9.4 Initialization Detection HEAD First use Non-first use Place the drone on the level surface and it will enter the Initialization Detection. The red, green and yellow lights of the drone will alternate flickering for about 7 seconds to complete the initial detection. When the transmitter sends out “Di Di”, the drone can be divided into two states: ・First use: the indicator lights turn yellow and flash alternately. - Page 26 When the “ ” icon appears on the LCD screen in the state of slow flashing and the indicator lights turn yellow alternately, it indicates that the drone can start compass calibration. Step 2: Hold the drone horizontally and rotate the drone in 3 complete circles.
-
Page 27: Unlocking/Locking
9.6 Unlocking/Locking 9.6.1 Unlocking the Motor Please unlock the motor before take-off. Short press the red button “ ” . The motors rotate and the drone is unlocked. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9.6.2 Locking the Motor Pic. -
Page 28: One Key Takeoff/Landing
9.7 One Key Takeoff/Landing ① ② Landing Takeoff ① After unlocking the drone, short press the “ ” button, the drone will automatically take off and hover at 5 feet altitude. ② When the drone is flying, short press the “ ”... -
Page 29: Return To Home
10.2 Return to Home (RTH) ・The Return to Home function brings the drone back to the last record- ed Home Point. ・The Home Point is the location at which the drone takes off or the GPS receives a signal from 7 or more satellites for the first time during flight. The current position of the drone will be recorded as the Home Point. - Page 30 10.2.3 Low Voltage RTH ① When the drone's rear lights flash slowly, the “ ” symbol is displayed on the screen of the transmitter, the First Low Voltage RTH will be triggered. And the drone will return automatically in the following two conditions: this time, the drone can only fly within a safe range of the height no more than 98 feet and the distance no more than 328 feet .) H＞98 feet...
- Page 31 ② If the drone’s rear lights begin to flash rapidly the “ “ symbol will be displayed on the transmitter screen and the transmitter will emit a “Di..., Di...” alert. The Second Low Voltage RTH is automatically triggered. H＞50 feet a.
-
Page 32: Optical Flow Positioning
10.3 Optical Flow Positioning ① The Optical Flow Positioning System consists of a camera ① module, which acquires the position information of the drone through visual images to ensure precise positioning of the drone. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - The Optical Flow Positioning System is typically used in indoor environ- ment when GPS is weak or unavailable. - Page 33 is not available, your drone will switch to Gesture Mode automatically. Be cautious to operate the drone in the following situation: 1. Fly fast at an altitude below 0.5m. 2. Fly over monochrome surfaces (like pure black, pure red, pure red and pure green).
-
Page 34: App Operation Instruction
11.0 APP OPERATION INSTRUCTION 11.1 Operation Interface Record General Settings Homepage Video GPS Signal Camera Follow Me Parameters Drone Point of Battery Level Interest Waypoint Transmitter Mode Headless Battery Level Mode Transmitter Delete Signal Strength RTH Switch Signal Submit Strength One Key Takeoff/ Landing Zoom in... -
Page 35: Follow Me
11.2 Follow Me When the Follow Me function is enabled, the drone will follow the GPS in your smart phone to follow you wherever you go. 1. Ensure the drone's flight range is within 15~95 feet. 2. Click the “ ”... -
Page 36: Point Of Interest
11.3 Point of Interest 1. Click the “ ” icon first, then select the “ ” icon, and follow the prompt box to enter the Point of Interest function. 2. The drone will record it’s flight position the moment you enter this function as the point of interest. -
Page 37: Headless Mode
11.4 Headless Mode ① Click the “ ” icon first, then select the “ ” icon, and follow the prompt box to enter the Headless Mode. ② Exit the Headless Mode by clicking the“ ” icon again. HEAD TAIL HEAD TAIL TAIL HEAD... -
Page 38: Tapfly
11.5 TapFly It is recommended to enlarge the map if you want to use TapFly. 1. Please click on the Map first, then click the “ ” icon, and follow the prompt box to enter the TapFly function. MODE 1: Click the“ ”... -
Page 39: Take Photo/Video
11.6 Take Photo/Video ① Click the “ ” icon to take a photo, click once to take a photo. ② Click the “ ” icon to record the video, click once to start recording, and click again to stop recording. ③... -
Page 40: Drone Status Indicator
12.0 DRONE STATUS INDICATOR Indicator Status Indicator Status Meanings Front and rear lights alternate flashing The drone is not connected to the yellow. transmitter. Red, green and yellow lights flashing Drone is currently in Initialization Detec- and alternate. tion status. Front light turns solid red, rear light No GPS signal or weak GPS signal. -
Page 41: Specifications
13.0 SPECIFICATIONS DRONE Model: HS720 Weight: 460g/16.2oz Flight Time: 26 minutes Operating Temperature Range: 32° to 104°F Dimensions: 173 x 104 x 56 mm (Folded) 336 x 370 x 56 mm (Unfolded) DRONE BATTERY Capacity: 2800 mAh Voltage: 7.4 V Battery Type: Lithium-ion Polymer Battery Energy: 20.72 Wh Charging power: 15.2 W... - Page 42 CAMERA Camera frequency: 5500-5700MHz Video/ Photo Resolution: 3840×2160P (stored in TF card) 1920×1080P (stored on mobile phone) Lens: FOV 120° Max Transmission Distance:1640 feet/500m(outdoor and unobstructed) Transmission Frame Rate: 16 fps Photo: JPEG Video: AVI/MP4 Memory Card Tape: Supports a TF Card (Class 10 above) with capacity of up to 32 GB...
-
Page 43: Trouble Shooting
14.0 TROUBLE SHOOTING Problem Solution When the drone is powered on, The drone is in the gyroscope the indicator light keeps flashing calibration state. Please place the rapidly. drone on an flat and level surface. Place the drone on a flat, level The drone cannot hover after surface and repeat the gyro takeoff and tilts to one side. -
Page 44: General Information
16.0 GENERAL INFORMATION FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interfer- ence that may cause undesired operation. - Page 45 WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF Exposure The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiator &...
- Page 46 2) I'utillsateur de I'appareil doit accepterbrouillage radioélectrique subi meme si le brouillage est susceptible d'encompromettre le fonctionnement. mauvais fonctionnement de I'appareil. Cet appareil numériquie de la classe B est conforme à la norme NMB-003 du Canada. CAN NMB-003 (B) RF Exposure Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.
- Page 47 BATTERY WARNING: 1. Failure to follow all the instructions may result in serious injury, irreparable damage to the battery and may cause a fire, smoke or explosion. 2. Always check the battery’s condition before charging or using it. 3. Replace the battery if it has been dropped, or in case of odor, overheat- ing, discolouration, deformation or leakage.
- Page 48 11. Non-rechargeable batteries are not to be recharged. Rechargeable batteries are only to be charged under adult supervision. 12. Different types of batteries or new and used batteries are not to be mixed. 13. Batteries are to be inserted with the correct polarity. 14.
- Page 49 The Statement of compliance is available at the following address: http://www.holystone.com/Download/CE/HS720_EU_DOC.pdf This product can be used across EU member states. MANUFACTURER INFORMATION Manufactured by Xiamen Huoshiquan Import & Export CO., LTD Unit 1, Room 501, Hongxiang Building, No.258 Hubin Nan Road, Siming District, Xiamen, China +1(855) 888-6699 FAA REGISTRATION: PLEASE FOLLOW ALL FEDERAL,...
