- Page 1 Instructions For Use Gebrauchsanweisung V 2.0 HS280 www.holystone.com +1(855) 888-6699 eu@holystone.com (EU) usa@holystone.com (USA) ca@holystone.com (CA)
- Page 3 English 01-31 Deutsch 32-59...
-
Page 4: Table Of Contents
Contents 1.0 Disclaimer & Warning ................2.0 Safety Guidelines ..................3.0 Maintenance ....................4.0 Package Contents ..................5.0 Drone Details ....................6.0 Transmitter Details ..................7.0 Mode Switch ....................8.0 Installation 8.1 Propellers ....................8.2 Drone Battery ..................9.0 Charging ....................... 10.0 Using the App 10.1 Download App ................... - Page 5 12.5 Headless Mode .................. 12.6 Trimmer ....................12.7 Altitude-Hold Function ..............13.0 Specifications ..................... 14.0 Contact Us ....................15.0 General Information ................
-
Page 6: Disclaimer & Warning
1.0 DISCLAIMER & WARNING 1. Please read this Disclaimer & Warning and Safety Guidelines carefully before using our product. This product is not recommended for people under the age of 14. You hereby agree to this disclaimer and signify that you have read it thoroughly by using this product. - Page 7 ④ Please perform a thorough check of the product before each use. Inspect the integrity of the parts, any signs of cracks and wear off on the propellers, battery power and effectiveness of the indicator, etc. If there is any problem found after checking the drone, please refrain from using it until the problem is resolved.
- Page 8 2.3 Operation Requirements ① DO NOT use this product to follow any moving vehicles. ② During the flight, turn off the motors only in an emergency. ③ When the battery runs low, return the drone back to your starting point. ④...
- Page 9 ⑥ If the device is not going to be used for an extended period of time, please remove batteries to prevent potential damage to the drone from battery leakage. ⑦ Only use the USB charging cable that comes with the drone to charge the battery.
-
Page 10: Maintenance
3.0 MAINTENANCE ① Clean the drone after each use with a clean, soft cloth. ② Avoid prolonged exposure to direct sunlight and avoid the buildup of heat on the drone or batteries. ③ This device is not waterproof and must not be submerged or subjected to water under any circumstance. -
Page 11: Package Contents

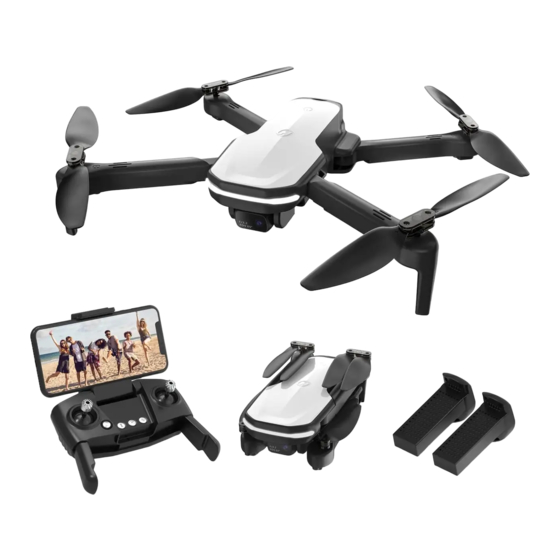

4.0 PACKAGE CONTENTS Drone Transmitter Drone Battery USB Charging Spare Propellers Screwdriver Cable Instructions For Use Gebrauchsanweisung V 2.0 HS280 +1(855) 888-6699 www.holystone.com usa@holystone.com (USA) eu@holystone.com (EU) ca@holystone.com (CA) Instructions For Use -06-... -
Page 12: Drone Details
5.0 DRONE DETAILS Drone Battery Power Switch Propeller B Propeller A Propeller A Propeller B HD Camera 6.0 TRANSMITTER DETAILS Phone Holder Take Photo Lens Up Lens Down Record Video Left Joystick Right Joystick Folded Handle Power Switch One Key Takeoff/ Headless Mode Landing Speed Switch... - Page 13 Battery Cover 4×AAA Battery (Not included) Battery Compartment Open the battery cover on the back of the transmitter, insert the four AAA batteries (Not included) into the battery compartment, and close the battery cover to complete the installation. · When installing the batteries, please pay attention to the positive and negative polarity of the battery to ensure the correct installation of the batteries.
-
Page 14: Mode Switch
7.0 MODE SWITCH 7.1 MODE 2 (Left hand throttle MODE 2 will be the default setting.) Left Joystick Right Joystick Forward Ascend Down Backward Down Descend Left Right Left Right Fly to Fly to Rotate Rotate Left Right Left Right - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7.2 MODE 1 To enter MODE 1, turn on the transmitter while holding the “Record... -
Page 15: Installation
8.0 INSTALLATION 8.1 Propellers HEAD The propeller and the motor shaft marked with the same letter should be connected together (both are marked with the letter either A or B). Then install the propeller to the motor shaft with a screw. •... -
Page 16: Drone Battery
8.2 Drone Battery Installation: ① ② ① Please remove the red insulation gasket first. ② Push the battery correctly into the drone battery compartment. Make sure that you hear a click sound, which indicates that the battery is firmly installed. Attention: The battery should be installed firmly. -
Page 17: Charging
9.0 CHARGING USB Adapter (5V/2A) Power Bank 1) When the drone battery runs low, the indicator lights on the drone will flash continuously. 2) Remove the battery from the fuselage and connect the USB charging cable to the battery charging interface. 3) Plug the USB charging cable into a USB charging port on a power bank or a USB adapter (5V/2A). -
Page 18: Using The App
10.0 USING THE APP 10.1 Download App Android APP on Google play Scan the QR code, corresponding to either App Store™ or Google Play™ Store, and download the HS FPV V4 app for free. Required Operating Systems: iOS 9.0 or later/Android 5.0 or later 10.2 Connect to Wi-Fi Connect your phone to the Wi-Fi network created by the drone. -
Page 19: Operation Guide
11.0 OPERATION GUIDE All of the operations shown in this manual are demonstrated using MODE 2. 11.1 Pairing ① Long press the power switch to turn on the drone and the indicator lights on the drone begin to flash. Long press HEAD ②... -
Page 20: Calibrating The Gyro
11.2 Calibrating the Gyro Simultaneously push the left joystick and the right joystick to the bottom right corner to calibrate the gyro. The indicator lights on the drone will blink, then turn solid, which indicates that the calibration is completed. Tip: To ensure a stable flight, we suggest that the pilot calibrates the gyro every time after pairing the drone and after a crash. -
Page 21: One Key Takeoff/Landing
11.4 One Key Takeoff/Landing Please unlock the motors before takeoff. ① ② Landing Takeoff ① Short press the One Key Takeoff/Landing button, the drone will take off automatically and hover at 5 feet. Now you can control this drone by using the joysticks. -
Page 22: Functions Details
12.0 FUNCTION DETAILS 12.1 Emergency Stop The Emergency Stop function should only be used in an emergency during the flight to avoid any damage or injury. Press the Record Video and the Lens Down button simultaneously, and you will hear one beep from the transmitter. The drone will fall down immedi- ately. -
Page 23: Take Photo/Record Video
12.3 Take Photo/Record Video Take Photo: Short press the Photo button on the transmitter to take photos. You will hear one beep, which indicates that the camera has successfully taken one photo. Record Video: Short press the Video button on the transmitter. You will hear two beeps which means the recording has started. -
Page 24: Headless Mode
12.5 Headless Mode The Headless Mode is a great training tool for beginner pilots. It is also useful when the drone is too far from the pilot (which makes it difficult to tell its orientation). It keeps the drone traveling forward, backward, left, or right when you move the right joystick in those directions, regardless of which way the front of the drone is pointed. - Page 25 * Why is the orientation of the drone important? In normal flying mode, the control of the drone movement can sometimes be counter-intuitive for beginners. For instance, when the drone is in the air with its head pointing to your right, if you push the right joystick forward, the drone will fly to your right, instead of flying forward.
-
Page 26: Trimmer
12.6 Trimmer F/B Sideward Fly Trim: If the drone tends to drift forward, press down the left joystick and do not release it while pushing the right joystick down to balance the drone. If the drone tends to drift backward, press down the left joystick and do not release it while pushing the right joystick up to balance the drone. -
Page 27: Altitude-Hold Function
12.7 Altitude-Hold Function The drone is designed with an altitude-hold function to maintain its altitude after releasing the left joystick. (The left joystick will automatically spring back to the middle) -22-... -
Page 28: Specifications
13.0 SPECIFICATIONS DRONE Model: HS280 Weight: 151g/5.33oz Max Flight Time: 13minutes (per battery) Operating Temperature Range: 32° to 104°F (0° to 40°C) Size: 329 × 210 × 53 mm (Unfolded) 135 × 98 × 53 mm (Folded) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -... - Page 29 CAMERA Operating Frequency: 2417MHz Photo Resolution: 1920×1080P Video Resolution: 1920×1080P@25fps Max Transmission Distance: 328 feet/100m (outdoor and unobstructed) Lens: FOV 65° Controllable Range: -80° to 0° Photo Formats: JPEG Video Formats: AVI/MP4 Operating Temperature Range: 32° to 104°F (0° to 40°C) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - USB CHARGING CABLE Input: 5V/2A...
-
Page 30: Contact Us
14.0 CONTACT US Please do not hesitate to contact us if you need further support. 4:00 PM ~ 7:00 AM (PST) usa@holystone.com (America) ca@holystone.com (Canada) eu@holystone.com (Europe) +1(855) 888-6699 For online support, please scan this code with Live Chat -25-... -
Page 31: General Information
15.0 GENERAL INFORMATION FCC Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interfer- ence that may cause undesired operation. - Page 32 WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF Exposure The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with a minimum distance of 20cm between the radiator &...
- Page 33 CAN NMB-003 (B) RF Exposure Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operat- ed with a minimum distance of 20cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé.
- Page 34 BATTERY WARNING: 1. Failure to follow all the instructions may result in serious injury, and irreparable damage to the battery may cause a fire, smoke, or explosion as well. 2. Always check the battery’s condition before charging or using it. 3.
- Page 35 13. Batteries MUST be inserted with the correct polarity. 14. The supply terminals MUST not be short-circuited. Regular examination of transformer or battery charger for any damage to their cords, plugs, enclosures, and other parts MUST be done. If there is damage, they MUST not be used until the damage has been repaired.
- Page 36 Directive 2009/48/EC have been fully fulfilled on our product with indication below: Product Name: Remote control four axis series Model/Mark : HS280/HOLYSTONE The Statement of compliance is available at the following address: http://www.holystone.com/Download/CE/HS280_EU_DOC.pdf This product can be used among EU member states.
