- Page 1 Instructions For Use V 4.0 HS190 +1(855) 888-6699 www.holystone.com usa@holystone.com (USA) eu@holystone.com (EU) ca@holystone.com (CA) jp@holystone.com (JP)
-
Page 3: Table Of Contents
Contents 1.0 Disclaimer & Warning ................ 2.0 Safety Guidelines ................. 3.0 Maintenance ..................4.0 Package Contents ................5.0 Drone Details ..................6.0 Assemble the Propeller Guards ............7.0 Transmitter Details ................8.0 Charging....................9.0 Operation Guide Pairing ...................... Calibrate the Gyro ................Unlocking the Motors ................. -
Page 4: Disclaimer & Warning
You agree to only use this product for its designed purposes and under the local laws, regulations, and applicable policies and guidelines that Holy Stone may provide. 2. When using this product, please strictly abide by the specification requirements and safety guidelines stated in this document. - Page 5 ④ Please perform a thorough check of the product before each use. Inspect the integrity of the parts, any signs of cracks and wear off on the propellers, battery power and effectiveness of the indicator, etc. If there is any problem found after checking the drone, please refrain from using it until the problem is resolved.
- Page 6 2.3 Operation Requirements ① DO NOT use this product to follow any moving vehicles. ② During the flight, turn off the motors only in an emergency. ③ When the battery runs low, return the drone to your starting point. ④ DO NOT use this product if you feel tired, take medicine or feel unwell and drink alcohol.
- Page 7 ⑦ Only use the USB charging cable that comes with the drone to charge the battery. ⑧ DO NOT connect the battery directly to wall outlets or car cigarette -lighter sockets will damage your battery since they have different voltages. ⑨...
-
Page 8: Maintenance
3.0 MAINTENANCE ① Clean the drone after each use with a clean, soft cloth. ② Avoid prolonged exposure to direct sunlight and avoid heat buildup on the drone or batteries. ③ This device is not waterproof and must not be submerged or subjected to water under any circumstance. -
Page 9: Package Contents
4.0 PACKAGE CONTENTS Drone Transmitter Propeller Spanner USB Charging Propeller Screwdriver Cable Instructions For Use V 4.0 HS190 +1(855) 888-6699 www.holystone.com usa@holystone.com (USA) eu@holystone.com (EU) ca@holystone.com (CA) jp@holystone.com (JP) Propeller Guard Instructions For Use -06-... -

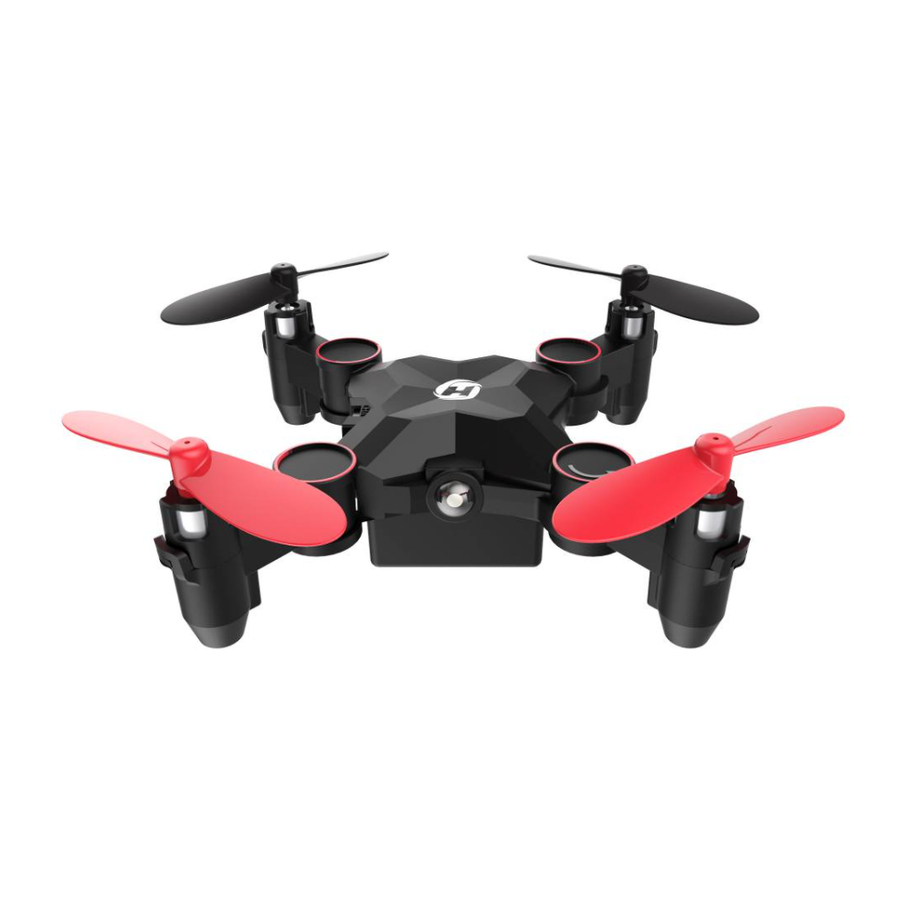

Page 10: Drone Details
5.0 DRONE DETAILS Light Propeller A HEAD Propeller B Collapsible Arm Charging Port/ Body Frame Power ON/OFF TAIL Propeller B Propeller A “A”-- Clockwise “B”-- Counterclockwise (Red and Blue wire) (Black and White wire) Attention: Pay attention to the “A” “B”... -
Page 11: Transmitter Details
7.0 TRANSMITTER DETAILS High Speed Charging Cable Rotation/ Circle Fly Forward (Long press) Trimmer Speed Backward Switch Trimmer Right Left Joystick/ Joystick 360° Flip One Key Takeoff Right Trimmer One Key Landing Left Trimmer Power Switch One Key Return Headless Mode Battery Cover Battery Cover 4 x 1.5V AAA Batteries... -
Page 12: Charging
8.0 CHARGING There are two ways to charge the drone battery(3.7V 220mAh). ① Turn off the drone and insert the USB charging cable into a computer USB port or a USB adapter (5V/1.0A). ② Connect the drone to the USB charging cable, the red indicator light on the charging cable will turn on, indicating that the battery is charging. - Page 13 Note: The charging time is around 30~40 minutes. ● Flying time is about 5~7 minutes. ● When the drone’s battery is in low power, the LED indicator ● lights on the drone will be blinking. Please make sure the batteries of transmitter are full of power ●...
-
Page 14: Operation Guide
9.0 OPERATION GUIDE Rotating propellers can be dangerous. Do not start the motors ● when there are people nearby. Always keep your hands on the transmitter so long as the motor ● is still spinning. Before Flight Please unfold the collapsible arms before the flight. 9.1 Pairing ①... -
Page 15: Calibrate The Gyro
② Then, turn on the Transmitter. One second later, one beep will be heard, and the drone’s indicator lights will start flashing and then turn solid, indicating that the drone and the transmitter have been paired successfully and automatically. Calibrate the Gyro After pairing, push the left joystick down to the bottom right and the right joystick down to the bottom left at the same time. -
Page 16: Unlocking The Motors
9.3 Unlocking the Motors After pairing or calibration, push the left joystick down to the bottom left, the right joystick down to the bottom right at the same time to unlock the motors. The indicator lights on the drone will blink and turn sold, and the propellers will start spinning. 9.4 One Key Takeoff Press the One Key Takeoff button, the drone will take off automatically. -
Page 17: One Key Landing
9.5 One Key Landing Press the One Key Landing button during the flight, the drone will land automatically. 10.0 FUNCTIONS DETAILS 10.1 Joystick Mode Left Joystick Right Joystick Forward Ascend Descend Backward Down Down Left Right Left Right Fly to Fly to Rotate Rotate... -
Page 18: Emergency Stop
10.2 Emergency Stop The Emergency Stop function should only be used in an emergency during the flight to avoid any damage or injury. As shown above, push the left joystick down to the bottom right and the right joystick down to the bottom left at the same time. The motors will stop immediately. - Page 19 Left Trimmer Right Trimmer L/R Sideways Drift Trim: When the drone drifts to the left, press the right trimmer button to rebalance the drone; if the drone drifts to right, press the left trimmer button to rebalance the drone. NOTE: When the drone loses balance, calibration and the trim buttons don't work, we suggest the pilot try to reset the drone’s trimmer data.
-
Page 20: High-Speed Rotation
10.4 High-Speed Rotation Short press the High-Speed Rotation button during the flight, the transmitter will make a "Di" sound, which indicates that the drone enters the High-Speed Rotation function. You can press the same button again will exit the High-Speed Rotation function. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10.5 Speed Switch This drone comes with 3 speed modes (Low/Medium/High). -
Page 21: 360° Flip
10.6 360° Flip 10 Feet When you get familiar with all the drone's functions, you can try this fantastic flip mode. When you fly the drone at least 10 feet, press in the Right Joystick on the transmitter, then push the right joystick Forward/Backward or Left/Right, and the drone will do a flip towards the corresponding direction. -
Page 22: One Key Return
10.7 One Key Return Please avoid using this function when the drone is near the pilot. Otherwise, it may cause injury. Wrong Track Right Track Please make the pilot stays facing the same direction that the drone head faces at pairing. With a press of the One Key Return button, the drone will return along the parallel direction where the tail of the drone pointed to when the drone was paired. -
Page 23: Headless Mode
10.8 Headless Mode The Headless Mode is a great training tool for beginner pilots. It is also useful when the drone is too far from the pilot (which makes it difficult to tell its orientation). It keeps the drone traveling forward, backward, left, or right when you move the right joystick in those directions, regardless of which way the front of the head of the drone points to. - Page 24 * Why is the orientation of the drone important? In normal flying mode, the control of the drone movement can sometimes be counter-intuitive for beginners. For instance, when the drone is in the air with its head pointing to your right, if you push the right joystick forward, the drone will fly to your right, instead of flying forward.
-
Page 25: Circle Fly
10.9 Circle Fly Press and hold the Circle Fly button for about 3 seconds, the drone will enter the Circle Fly mode. Exit the Circle Fly mode by long pressing the same button again or pushing the right joystick in any dircetion. 10.10 Altitude-hold Function The drone is designed with an altitude-hold function to maintain its altitude after releasing the left joystick. -
Page 26: Trouble Shooting
11.0 TROUBLE SHOOTING THE PROBLEMS REASONS SOLUTIONS 1. Refer to the preparation 1. The transmitter is not The indicator lights of the for FLIGHT and pair synced to the drone. drone are flashing and do not again. 2. Insufficient battery power. respond to the transmitter. -
Page 27: Specifications
12.0 SPECIFICATIONS DRONE Model: HS190 Weight: 23.3g/0.82oz Flight Time: 5~7 minutes Motor Model: 615 Operating Temperature Range: 14° to 104°F Dimensions: 62 x 62 x 24mm TRANSMITTER Operating Frequency: 2452-2474MHz Max transmission distance: 30m(Outdoor And Unobstructed) Battery: 1.5V AAA Battery (not Included) Operating Temperature: 14°... -
Page 28: Contact Us
13.0 CONTACT US Please do not hesitate to contact us if you need further support. 4:00 PM ~ 7:00 AM (PST) usa@holystone.com (America) ca@holystone.com (Canada) eu@holystone.com (Europe) jp@holystone.com (Japan) +1(855) 888-6699 For online support, please scan this code with Live Chat. -25-... -
Page 29: General Information
14.0 GENERAL INFORMATION FCC Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 30 WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF Exposure The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiator &...
- Page 31 CAN NMB-3 (B) RF Exposure Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonne- ments IC établies pour un environnement non contrôlé.
- Page 32 3. Please replace the battery if the battery is dropped or has any peculiar smell, overheating, discoloration, deformation, or leakage. 4. Never use anything other than the approved LiPo Charger to charge the battery. Always use a balancing charger for LiPo cells or a LiPo cell balancer.
- Page 33 Directive 2009/48/EC have been fully fulfilled on our product with indication below: Product Name: Remote control four axis series Model/Mark: HS190/HOLYSTONE The Statement of compliance is available at the following address: http://www.holystone.com/Download/CE/HS190_EU_DOC.pdf This product can be used among EU member states.
- Page 34 MANUFACTURER INFORMATION Manufactured by Xiamen Huoshiquan Import & Export CO.,LTD. Address: Unit 1, Room 501, Hongxiang Building, No.258 Hubin Nan Road, Siming District, Xiamen, China +1(855) 888-6699 MADE IN CHINA(CN) -31-...
