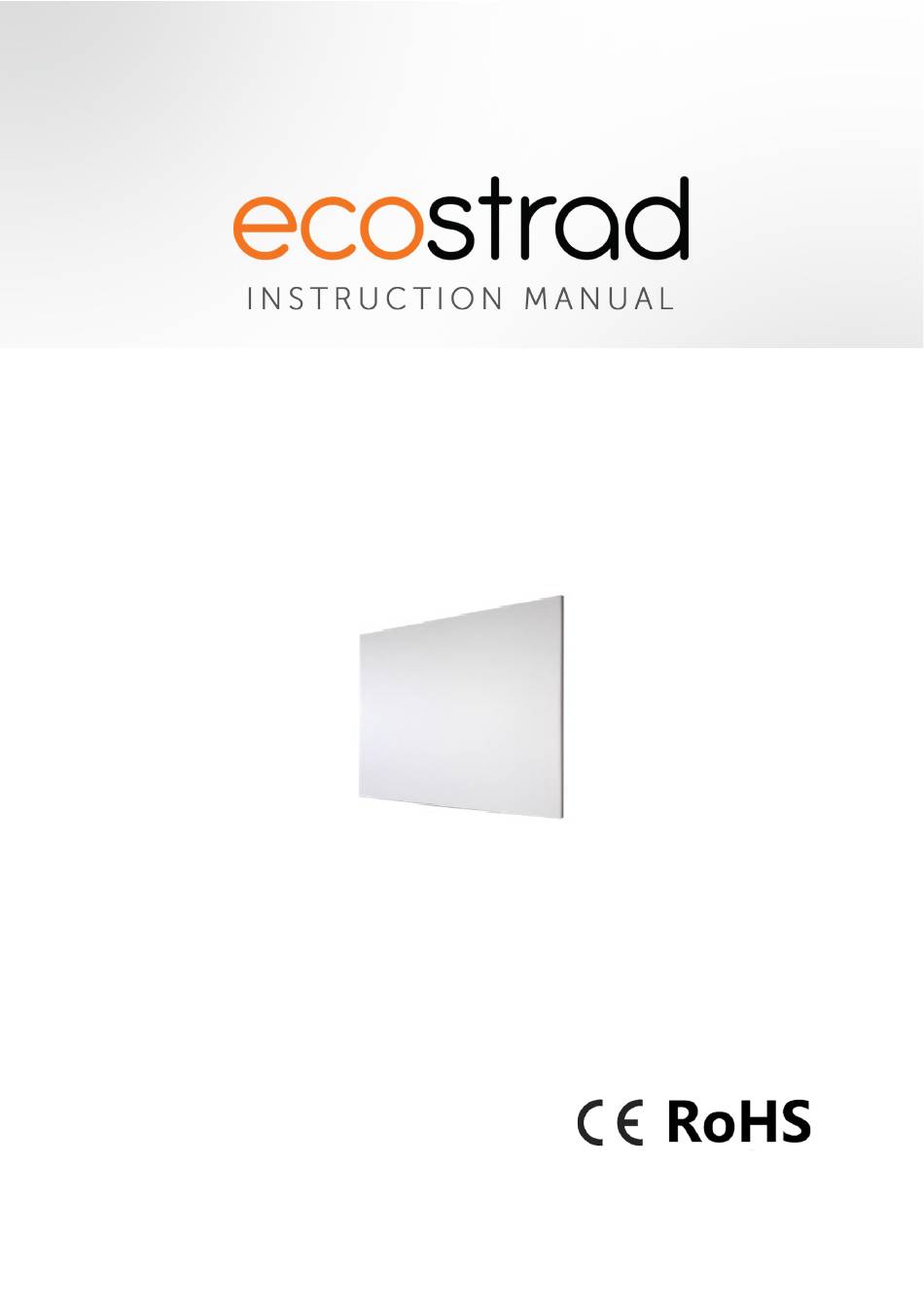

Ecostrad Opus Instruction Manual

Infrared heating panel

Advertisement

Quick Links

Ecostrad Opus Infrared Heating
Panel
Ratings: 220 – 240 V, 50 Hz, Class I, IP54
1

Advertisement

Table of Contents
loading

Summary of Contents for Ecostrad Opus

  • Page 1 Ecostrad Opus Infrared Heating Panel Ratings: 220 – 240 V, 50 Hz, Class I, IP54...
  • Page 2 Symbols Warning This symbol indicates a hazard with an average risk level which, if not avoided, could result in serious injury or death. Warning of electrical voltage This symbol indicates danger to the life and health of persons due to electrical voltage.
  • Page 3: Table Of Contents

    Contents About the Device Warnings & Precautions Technical Information Supplied Parts Device Structure Installation Troubleshooting Maintenance & Servicing Storage 10 | ErP Ecodesign Information 11 | Disposal...
  • Page 4: About The Device

    They are ideal for homes, schools, hospitals and offices. They should not be used outdoors or in large internal spaces such as workshops or warehouses. The Ecostrad infrared panel range is available in a wide range of sizes and styles. 2 | Warnings & Precautions Read this manual carefully before using or installing the device.
  • Page 5 its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate, or clean the appliance, or perform maintenance. Warning Do not use the device in enclosed spaces if persons are present who cannot leave the room independently and are not under constant supervision.
  • Page 6 • Check accessories and connection parts for possible damage prior to every use of the device. Do not use defective devices or device parts. • Ensure all electric cables outside of the device are protected from damage – e.g. from animals or furniture. Never use the device if electric cables or power connections are damaged.
  • Page 7: Technical Information

    3 | Technical Information Heating element Carbon crystal Heating method Far infrared heating Voltage 220-240V/50Hz Surface temperature Wall panels: approx. 85-95 °C Ceiling panels: approx. 90-105 °C Body material Aluminium IP rating IP54 (excluding plug) Overheat protection Power cable length 1.9m Model Specifications Model...
  • Page 8: Supplied Parts

    4 | Supplied Parts • 1 x Heating Panel (A) • 1 x Control Guide • 1 x Installation Manual • 1 x Wall Mounting Kit: o 4 x Screws (B) o 4 x Wall Plugs (C) o 1 x Drilling Template (D) The kit provided should be used for wall mounting only.
  • Page 9 Wall Mounting Instructions These instructions apply to wall mounting only. Turn to page 10 for ceiling mounting instructions. If the device is being fitted in a bathroom, the unit must not be plugged in. The plug should be removed and the unit hardwired into a fused spur. This is a job for a qualified electrician.
  • Page 10 Ceiling Mounting – Direct Method This method should only be used with panels designed for ceiling mounting, when the kit below has been purchased: Ecostrad Ceiling Mounting Kit: 1. Drill four holes on the ceiling, positioned as per the diagram below, according to the measurements given per size in the table below.
  • Page 11 2. Push the wall plugs into the holes. Mount the four hanging brackets onto the ceiling, with the ends with the screw holes pointing outwards, as per the diagram above. Fix in place with screws. Turn the screws to the end tightly. This is important for a secure fitting.
  • Page 12 Ceiling Mounting – Suspended Method This method should only be used with panels designed for ceiling mounting, when the kit below has been purchased: Ecostrad Suspended Mounting Kit: Components • 1 x Heating Panel (A) • 4 x Panel Caps (B) •...
  • Page 13 2. Thread suspension wires (I) through wire caps (C). Screw (C) onto (B). 3. Drill four 6mm holes in the ceiling, using a 6mm drill bit. Fix the four expansion plugs (H) into the holes. 4. Insert the four long screws (F) into ceiling lock heads (E) and screw tight into the expansion plugs (H).
  • Page 14 5. Attach ceiling lock screws (D) to suspension wires. Screw (D) tight into (E). 6. To adjust the length of the suspension wire, hold down the catch on the ceiling lock heads and feed the wire through the gap in the lock head. Release the catch and the wire will lock automatically in your chosen position.
  • Page 15: Troubleshooting

    7 | Troubleshooting Problem Possible Cause Action Noise from the panel Expansion sounds from the This is normal. The device will when it is first heating panel as its structure stop making noise after it has adapts to being heated been in use for some time.
  • Page 16: Storage

    Cleaning the device: Warning of electric voltage • Allow the device to cool down completely before cleaning. • Never immerse the device in water! • Clean the device with a soft, damp and lint-free cloth. • Ensure that no moisture enters the housing. Protect electrical components from moisture.
  • Page 17: Disposal

    Information requirements for electrical local space heaters Item Unit Type of heat input, for electric storage local space heaters only (select one) manual heat charge control, with integrated thermostat manual heat charge control with room and/or outdoor temperature feedback electronic heat charge control with room and/or outdoor temperature feedback fan assisted heat output Type of heat output/room temperature control (select one)
