point Cruise POCRUISE Manual

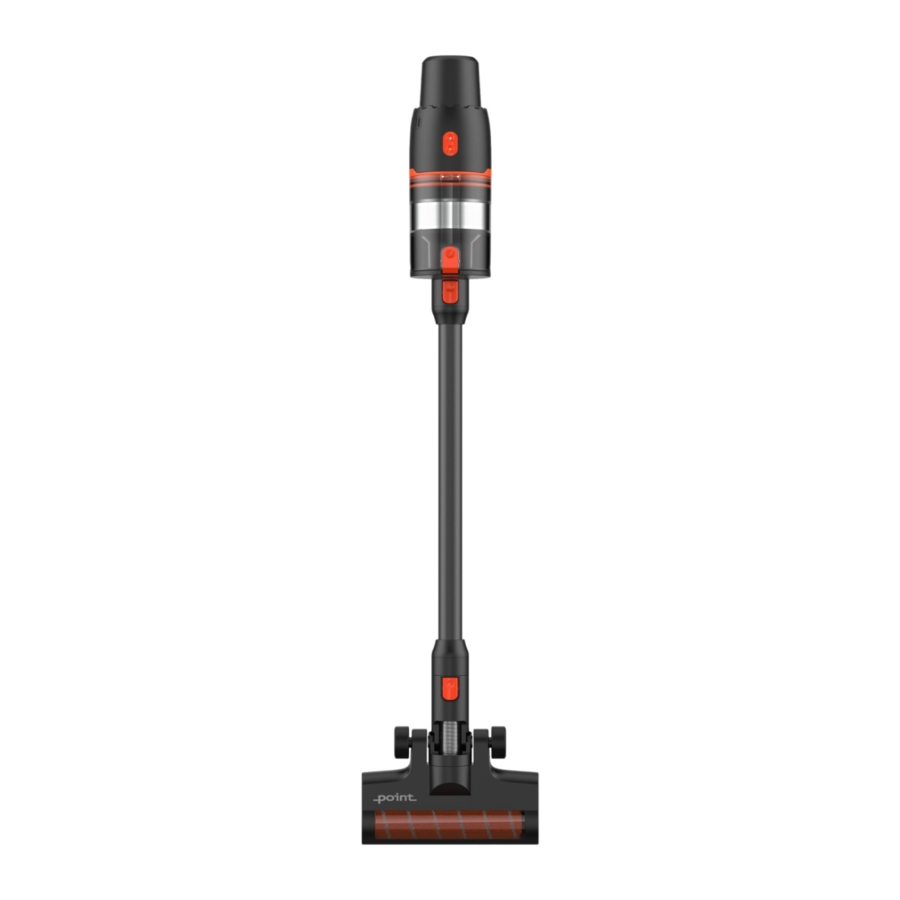

PRODUCT OVERVIEW

NOTE: Your Battery does not come fully charged. Prior to first use, fully charge. During first use, discharge fully to condition your battery.

1. Battery pack
2. Motor
3. Dust cup
4. Tube
5. Motorized brush head
6. Crevice tool
7. Dusting brush
8. Foldable tube connector
9. Bed brush
10. Wall-mounted dock with screws
11. Adapter

ASSEMBLING

THE MAIN BODY

THE BATTERY

THE SOFT ROLLER (FOR HARD FLOOR)

THE FOLDABLE TUBE CONNECTOR

INSTALL THE WALL-MOUNTED DOCK

Place mount against wall and use pencil to mark drill holes with the height of 40-55cm. Drill holes and insert screws through holes on mount and tighten until firmly attached. Place assembled vacuum cleaner and accessories on wall mount.

Charging

Plug the adapter into the charging connector on the appliance handle. After charging, all the bars on the battery will light up.

USING YOUR VACUUM

	Filter cleaning alert: Clean filter when this sign lights up, ignoring this alert may cause suction loss and fast drainage of battery.
	AUTO mode: This sign will light up when the vacuum turn into intensive cleaning by detected heavy dirt.
	Battery indicator: Shows the remaining capacity of battery.

MAINTAINING YOUR VACUUM

Hand wash filters only with water to prevent damage from cleaning chemicals. Allow ALL filters to air-dry completely before replacing them in the vacuum to prevent liquid from being drawn into electric parts.

Turn off power and remove power pack before servicing.

Clean the dust screen inside the dust cup as required.
NOTE: Empty dust cup when debris reaches the MAX fill line.

EMPTYING THE DUST CUP

• To empty dust cup, first remove the handheld vacuum from the wand by pressing the Wand Release button and pulling up on the handheld vacuum. Position dust cup over a bin, then open the bottom of the dust cup by pressing the dust cup cover buckle on the side.


CLEANING THE DUST CUP AND FILTERS

• To clean the dust cup, remove the dust cup from handheld vacuum by pressing the release button and rinse it with water. Flush the dirt off as needed. Once dust cup is completely dry, return it to handheld vacuum.
• We recommend that you tap the HEPA filter every time after you empty the dust cup. HEPA filter should be cleaned every fifth use. To clean the filter, compressed air is the best option. The high pressure air will remove the dry debris and fine dust from the HEPA filter. HEPA filter should be replaced every 3 months.

TROUBLESHOOTING GUIDE

To reduce the risk of shock and unintended operation, turn off power and remove power pack before servicing.

SPECIFICATION

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

• The product is not suitable for people with physical, sensory or mental disabilities or people who lack experience and common sense (including children), unless supervised or directed by others to ensure its safe use.
• DO NOT use to vacuum any liquids.
• This product is only suitable to be used in dry environments, do not take it outdoors or use it in wet environments.
• Do not touch the plug or any live part of the product with wet hands, to avoid the danger of electric shock. If the charger or plug is damaged, stop using it. Please call our professional maintenance personnel to follow and replace, to avoid harm. DO NOT immerse in water when cleaning.
• If handheld vacuum/wand is damaged, discontinue use.
• Do not vacuum hot materials (unextinguished cigarette butts, matches or hot ashes, etc.), ultrafine substances in non-domestic environments (e.g. lime, cement, wood chips, gypsum powder, ash, toner, etc.), large sharp fragments (of glass, nails, pins, etc), hazardous materials (e.g. solvents, scale remover, etc.), chemicals (e.g. acids, detergents, etc.), flammable and explosive liquids (gasoline, alcohol products) and other substances with uncertain physical properties.
• DO NOT leave vacuum cleaner unattended.
• Always turn off this appliance before connecting or disconnecting floor nozzle.
• DO NOT incinerate appliance, even if it is severely damaged, as the power pack may explode in a fire.
• Keep the vacuum cleaner moving over the carpet surface at all times to avoid damaging the carpet fibres.
• DO NOT place vacuum cleaner on unstable surfaces such as chairs or tables.
• Keep your work area well lit.
• DO NOT put any objects into openings. DO NOT use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• DO NOT allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
• DO NOT use if airflow is restricted; if the air paths or thefloor nozzle become blocked, turn off the vacuum cleaner and remove the battery. Clear all obstructions before returning the battery to vacuum and powering on again. Keep floor nozzle away from hair, face, fingers, uncovered feet, or loose clothing.
• Store the appliance indoors. DO NOT use or store it below 4°C. Ensure the appliance is at room temperature before operating.
• DO NOT carry the appliance with your finger on the power button.
• DO NOT vacuum up hard or sharp objects such as glass, nails, screws, or coins that could damage the vacuum cleaner.
• DO NOT vacuum up drywall dust, fireplace ash, or embers. DO NOT use as an attachment to power tools for dust collection.
• DO NOT immerse vacuum cleaner in water or other liquids.
• Use extra care when cleaning on stairs.

DUST CUP/FILTERS/ACCESSORIES

• DO NOT use without filter, dust cup, and all filters in place. Make sure all accessories are in place after routine maintenance.
• Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
• Make sure that all filters are thoroughly dry and all accessories are free of blockages after routine cleaning.
• Buy the filters and accessories from the manufacturer. Using the incorrect accessories will void the warranty.

BATTERY PACK

• DO NOT charge appliance with the power on.
• DO NOT charge power pack at temperatures below 10°C or above 38°C. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
• DO NOT expose battery or appliance to fire or temperature above 130°C as it may cause an explosion. Battery should not be stored at temperatures below 3°C or above 40°C to maintain long-term battery life.
• Use Battery Charging Dock on flat, stable surfaces only.
• Use appliance only with specifically designated batteries and adapter. Use of any other battery packs or adapter may create a risk of injury and fire.
• Must use the original adapter to charge, otherwise it may damage the machine.
• When battery is not in use, keep it away from all metal objects, such as paper clips, coins, keys, nails, or screws. Shorting the battery terminals together increases the risk of fire or burns. Battery should not be exposed to or submerged in any water, salt water, or other liquids.
• Under abusive conditions, liquid may be ejected from the battery pack. Avoid contact with liquid, as it may cause irritation or burns. If contact occurs, flush with water. If liquid comes in contact with eyes, seek medical help.
• DO NOT modify or attempt to repair the appliance or the battery yourself, appliance should only be serviced by a qualified repair person using only identical replacement parts.
