point TORNADO 4894526085827 Manual

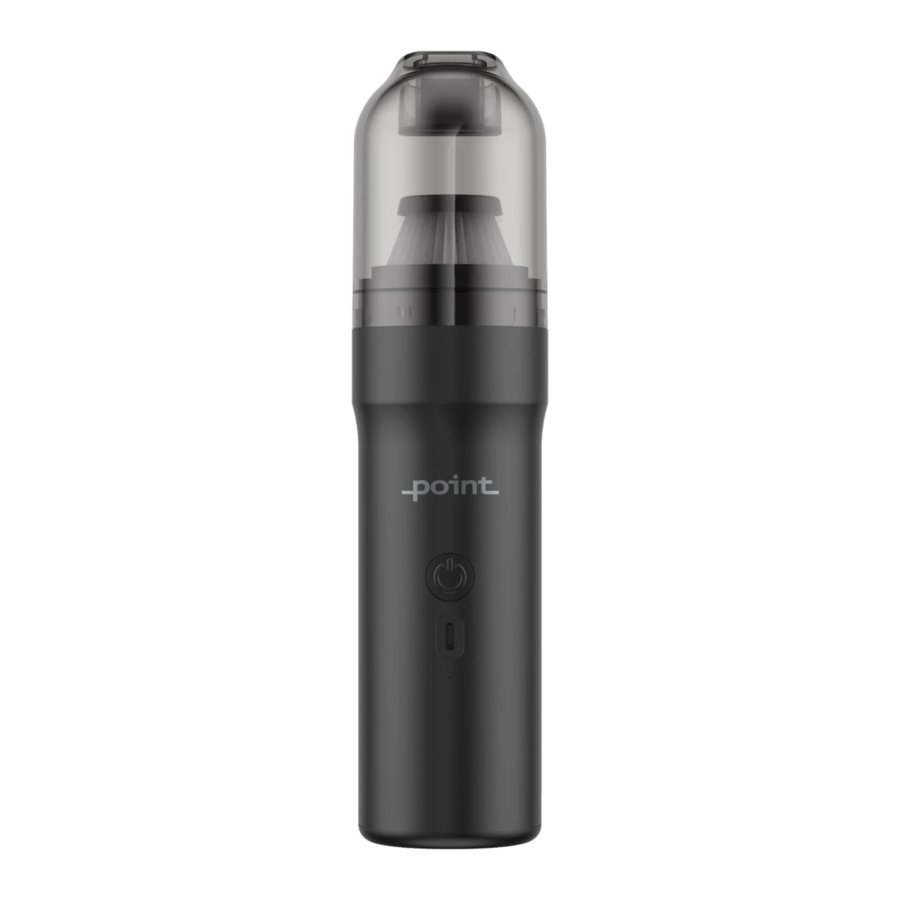

PRODUCT OVERVIEW

PRODUCT OVERVIEW

INDICATOR FUNCTION

INDICATOR FUNCTION

Description of charge and discharge indicators

Battery discharge Steady blue light: vacuum cleaner is powered on
Blinking blue light: the battery charge is getting low (6.1V ±0.1V)
Battery charge Blinking red light: the battery is charging
Steady blue light: the battery is fully charged

Alarm indicator and function description

Scene Function description
Over temperature of the discharge battery (higher than 70±5℃) or NTC short circuit The red light blinks four times
Motor tuyere is blocked After 5 seconds, the motor stops and the red and blue lights alternately flash 5 times
If the battery is high temperature or ntc short circuit occurs during charging Enter the false charge state, and continue charging when the temperature recovers
When the motor is working, the motor has a short circuit The motor stops and the red and blue lights alternately flash 3 times
No load (motor lead off) Keep the blue light on for 2 seconds, then turn it off

COMBINATION BRUSH INSTALLATION AND REMOVAL

The use of a combination brush
The use of a combination brush

Used to brush some stubborn dust or objects, such as keyboard surface, table surface, car surface, etc

Used to absorb some gaps or low adhesion dust or objects

DUST CUP INSTALLATION AND REMOVAL

Rotate the dirt container counterclockwise, as illustrated, to unscrew it, then gently remove the dirt container.

Rotate the outer mesh filter counter clockwise, then pull out the HEPA filter.

Remove the garbage in the dust bucket

DUST CUP INSTALLATION AND REMOVAL

warning Note

  1. Filter HEPA assembly
  2. HEPA can be washed in water, after washing, need to wait for water to dry before installation.

INSTALLATION OF ACCESSORIES

Loading and unloading of blow hood 1 and its function

Large blow hood is suitable for air mattress, rubber boat and other types of products.
Loading and unloading of blow hood 1 and its function

Loading and unloading of blow hood II and its function

Medium size blow hood is suitable for inflatable swimming pool, inflatable sofa and other types of products.
Loading and unloading of blow hood II and its function

Loading and unloading and function of blow hood 3

The small blow hood is suitable for swimming rings, inflatable toys and other types of products.
Loading and unloading and function of blow hood 3

SPECIFICATION

  • Voltage: 7.4V
  • Battery Capacity: 2000mAh
  • Rated Power: 60W
  • Dust cup Volume: 0.15L
  • Working Time: ≥12mins
  • Charging Time: 3-4H

IMPORTANT SAFETY INSTRUCTIONS

To prevent accidents including electric shock or fire caused by improper use, please read this manual carefully before use, and retain it for future reference.

Safety Warning

  • This appliance can be used by children aged 8 years and older and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instructed on the safe use of the appliance and understand the hazards involved. Children are not to play with the appliance. Cleaning and user maintenance are not be carried out by children without supervision.
  • This appliance contains batteries that are only replaceable by skilled persons.
  • Batteries in appliance are not replaceable by the user.
  • For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.
  • The vacuum cleaner is intended for home and in-car use only. Do not use in outdoor, commercial, or industrial environments.
  • The vacuum cleaner contains a built-in rechargeable battery. Do not expose the vacuum cleaner to fire, nor charge, use, or place it in a high-temperature environment. To prevent overheating and risk of fire or explosion, keep the vacuum cleaner out of direct sunlight when stored in a vehicle.
  • Keep the vacuum cleaner out of reach of children at all times.
  • Do not use the appliance with wet hands.
  • Do not suck up water or any other liquid.
  • Do not suck up any burning or smoking substances, such as unextinguished cigarette butts.
  • Do not use the product to vacuum metal objects such as coins, screws, nails, tacks, etc.
  • Do not vacuum or use this product near flammable or combustible liquids (e.g., gasoline or other fuels, lighter fluid, cleaners, oil-based paints), gases (e.g., natural gas, hydrogen), or explosive dust (e.g., coal dust, magnesium dust, grain dust, gunpowder).
  • Please strictly follow the instructions in this user manual when using the vacuum cleaner. Users are responsible for any loss or damage that may arise from improper use of the vacuum cleaner.

Battery and Charging

  • Do not dismantle, repair, or modify the battery on your own.
  • Do not charge the appliance near heat sources such as radiators, or in humid areas like bathrooms.
  • Do not use a wet cloth or wet hands to wipe or clean the appliance while it is charging.
  • The battery is not removable. When the appliance reaches the end of its service life, please dispose of, or recycle it in accordance with local laws and regulations of the country or region it is used in.
  • Do not operate an appliance with a damaged charging cable.
  • If the appliance will not be used for an extended period, fully charge and unplug it then store it in a cool, dry place. To avoid battery damage, recharge the vacuum at least once every three months.
  • The appliance should be powered off and kept in its original packaging during transport.
