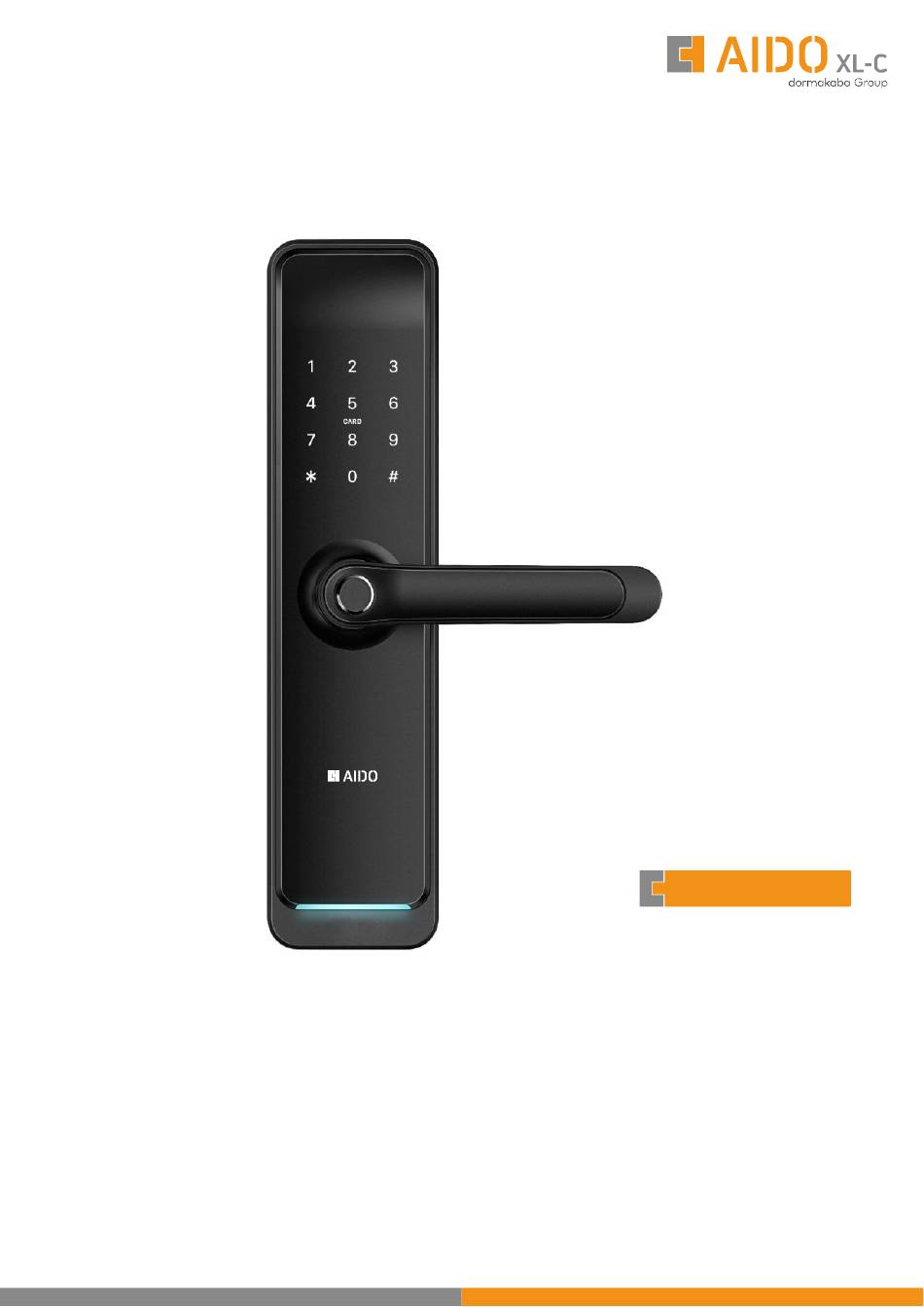

Digital Door Lock AML 552
XL-C 4606
User Manual
Special Attention:
1. Mechanical keys please keep outdoor, just in case keys lock in doors.
2. Please replace for the battery when low wattage alarm.
3. Reading this manual carefully before installation and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIDO AML 552 and is the answer not in the manual?

Questions and answers

Related Manuals for Dormakaba AIDO AML 552

Summary of Contents for Dormakaba AIDO AML 552

  • Page 1 Digital Door Lock AML 552 XL-C 4606 User Manual Special Attention: 1. Mechanical keys please keep outdoor, just in case keys lock in doors. 2. Please replace for the battery when low wattage alarm. 3. Reading this manual carefully before installation and keep it for future reference.
  • Page 2 1. Introduction 1.1. Lock Structure 1.2. Packing List Check the following drawing to check whether the package contains all the parts. Name Name Front Panel Mortise Screws : M5*10mm (For Aluminum Door) Back Panel Mortise Screws : M4*20mm (For Wooden Door) Mortise M5*25mm Screw Card...

  • Page 3: Specifications

    1.3. Specifications Suitable for Doors Aluminum door AML 552 Models Applicable Wooden door Working Aluminum alloy Materials 6V/4 x AA Batteries Voltage Door Lock Weight Thickness to 3 KG 35-60mm WiFi Password Unlocking Data Fingerprint+Password+Card ≤ Card Capacity (Fingerprint 100) ≤...

  • Page 4: Installation

    2. Installation 2.1 Adjust the Handles Direction Notice : Adjust the handle according to the direction you open the door. The door opens to the left, with the handle facing left. The door opens to the right, with the handle facing right For Front Panel 1.
  • Page 5 2.2. Installation Diagram (For Latch or 5572) Step 1 Install Mortise Step 2 Install Sliding Screw Casing Step 3 Install Back Panel and link wire Step 4 Install fixing screws Step 5 Installation complete...

  • Page 6: Operation

    3. Operation 3.1. Number Pad 1#: set 2#: EZ mode “ * ” : Cancel, Return, # Request remote unlock picking ： Exit and Delete 5#: Get a temporary password 6#: Time Updating “ # ” : Confirm and End 8#: AP mode Passage mode ：After verifying unlocking, press and hold "#"...

  • Page 7: Initialization Mode

    After initialization, the Master 3.2.2. Initialization Mode Password is restored to “ 123456 ” , and any fingerprint can be unlocked for customers to experience the lock function Open the battery cover, press and hold the “ Reset ” Within 5 seconds (release button, install the battery.
  • Page 8 4. Operation 4.1. Download You can search for [AIDO Smart] in various app stores or scan the QR code above to download 4.2. Register 1. Click “Sign Up”and read the Privacy Policy after it pops up. Click “Agree” and enter the registration page. 2.
  • Page 9 EZ Mode Method: a) After pressing “2” + “#” to verify the administrator, enter the Network config , The “5”starts flashing b) As shown in the figure, the mobile app connects the lock. Select the WiFi door lock, enter the WiFi password and connect the door lock c) Adding success: the voice prompt “successful”...

  • Page 10: User Management

    c) Remote dynamic password AIDO WiFi AIDO WiFi 1.Swipe the screen to the right AIDO WiFi and click get dynamic password 2.The password is valid for five minutes and needs to be retrieved after five minutes 3.If the password cannot be unlocked, the lock time may be wrong, press 6# on the lock to update the lock time, and then...
  • Page 11 1.Click on the added user, you can edit the corresponding user opening information 2.The lock and the app are synchronized through cloud information: enter the number of the door opening method on the lock. For example, Peter sets a password number 001 on the lock, then enter 1 in the app as shown in Figure 4, and use this number 001 later Password to open the door, the door opening record in the app will show that the door opened by Peter ，But if the user information is deleted on the APP, the...
  • Page 12 5. FAQ 1) How to read operation records? In the Records of the main interface. . 2) Why can ’t I unlock it after open You need to perform an unlock verification in any the passage mode method, than the passage mode will take effect. 3) What is the purpose of Auto Lock You can set how long to lock after unlocking 4) After installation, touch sensing...
  • Page 13 Notes : ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 14 Notes : ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 15 Notes : ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 16 India Private Limited Regd. Office & Factory: Plot No. 48/3, 8th Avenue, Mahindra World City, Anjur Village, Chengalpattu Dist. Tamil Nadu 603002. service.india@dormakaba.com...
