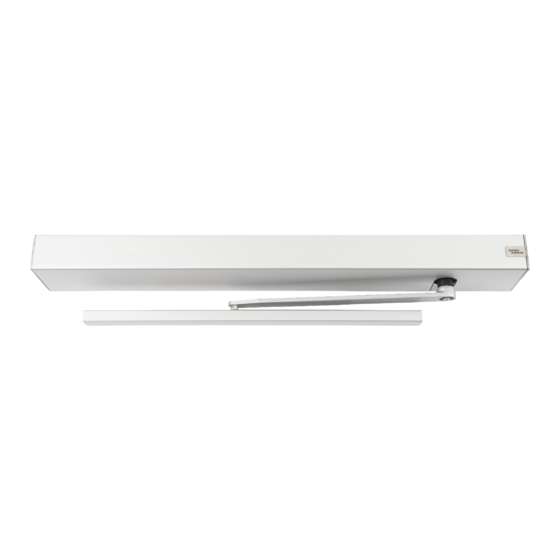

Dormakaba ED50LE Quick Start Manual

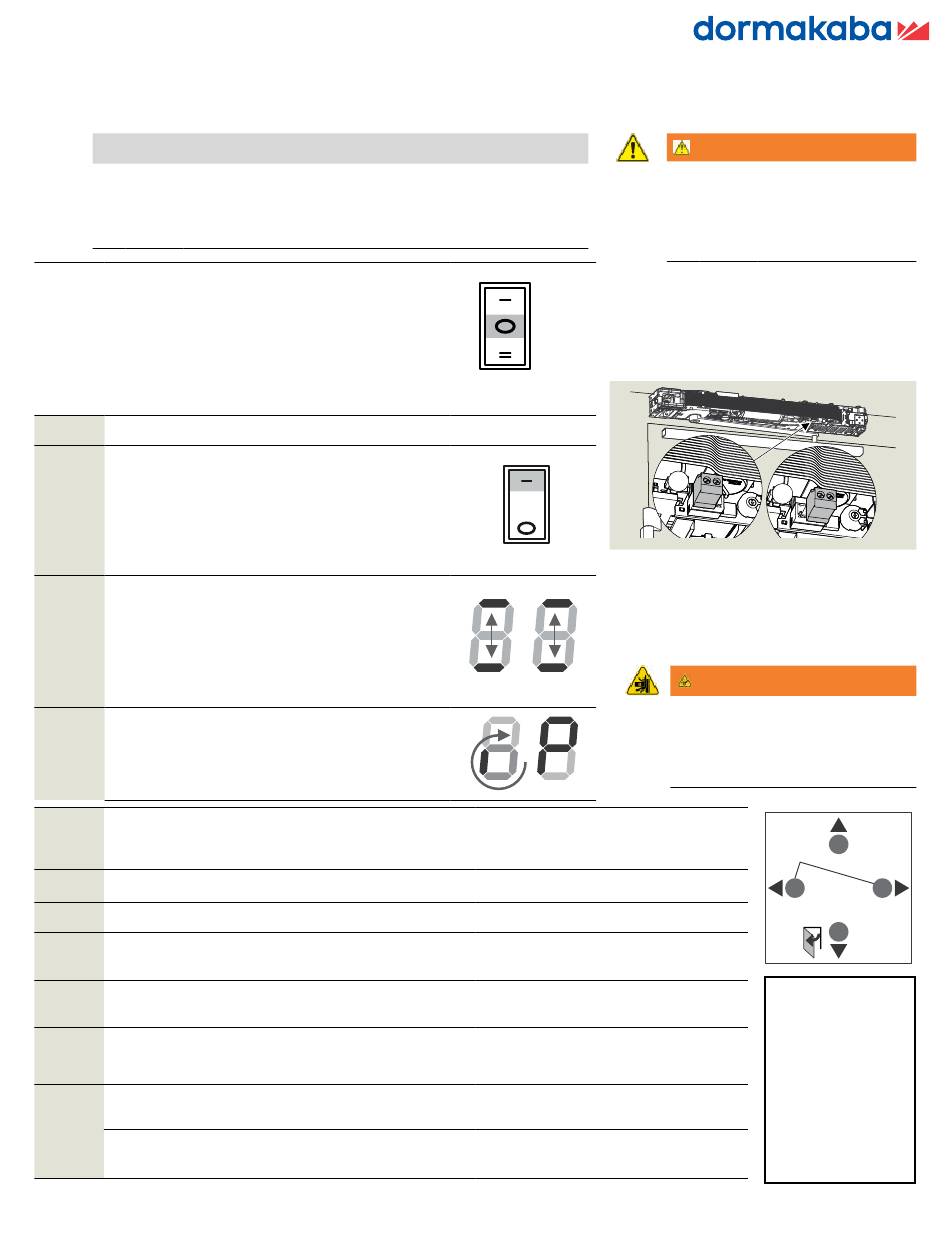

Quick Start Guide
ED50LE/ED100LE/ED900
NOTICE
This guide is intended to be used as a reference to assist in
programming the dormakaba operator in accordance with
ANSI A156.19 Standard for Low Energy Power Operated Doors.
• The operator must be completely installed per the
applicable dormakaba USA Inc. ED operator
Installation Instruction Manual.
• Door must be closed.
• Mode switch in the CLOSE position.
Step
Directions
Power switch to ON position.
• A series of numbers and letters will show
up on the display.
1
• This will stop after two horizontal dashes
side by side move up and down several
times.
While the dashes are moving up and down,
press the bottom button on the display.
• This will identify which way the unit is
2
mounted.
• Letters and numbers will now display
right side up.
The display will show a "P" on the right with
a rotating segment on the left.
Press and hold the right button until Parameter
ID is displayed (approximately 3 seconds), then
3
release the button.
4 Press the right button.
Press the right button again.
5
Press the up and down buttons to change the
6
setting.
7 Press the right button to accept the changes.
Press the left button to return to the
8
programming menu.
Press the down button to go to the next
parameter setting (or)
9
Press the left button to exit programming menu.
ED50LE/ED100LE/ED900
Expected results
Parameter ID will appear (ex. AS).
Displays the current setting.
Display will flash the current setting.
Displays the new parameter
setting.
Displays the current Parameter ID
(Step 3).
Go back to Step 4.
Display will show a rotating
segment and a "0".
08125350
Verify power fail closing speed
and braking circuit plug position
before programming the door
and completing a learn cycle.

Power fail closing speed.

• The door must be adjusted to close in
no less than three seconds but a
Close
minimum of five seconds is recommended.

Braking circuit plug position

A
28
A – Pull arm
When the braking circuit plug is in the
correct position the door will easily Press
open and close slowly. If the door is very
hard to Press open change the jumper
position.
If braking circuit plug is inserted
incorrectly, brake circuit will not
work. The door can close at high
speed!
www.dormakaba.us
WARNING
B
B – Press arm
WARNING
< 3s Quit
> 3s Reset
> 3s
< 3s
LEARN
> 8s
Fact-Setup
All four required
parameter settings
(AS, rd, Tb, dL)
must be made to
flash even if the
value does not
need to be
changed before the
door will move to
the learn cycle.
09-2021
> 3s
PRG
