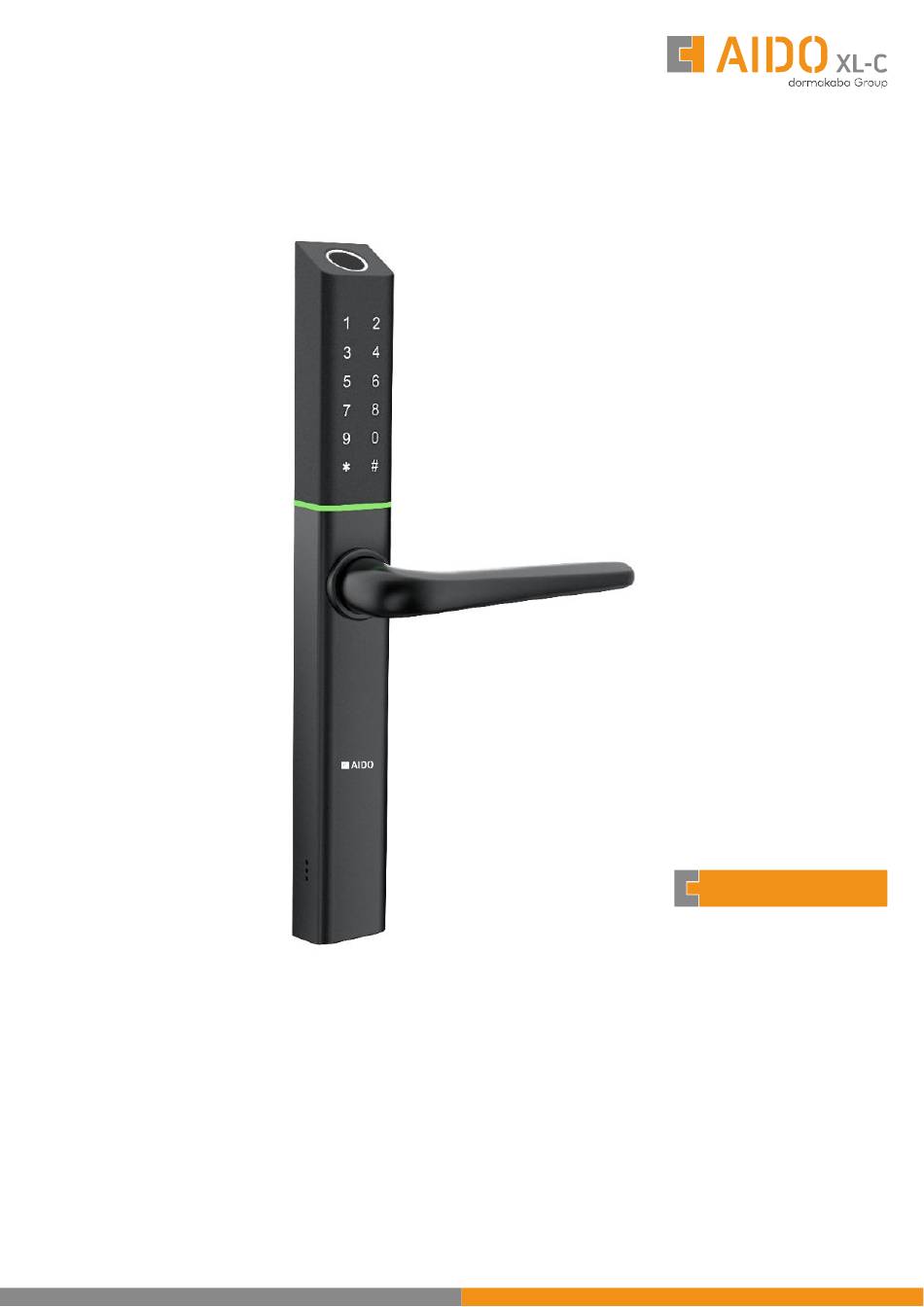

Digital Door Lock AML 455
XL-C 4607
User Manual
Special Attention:
1. Mechanical keys please keep outdoor, just in case keys lock in doors.
2. Please replace for the battery when low wattage alarm.
3. Reading this manual carefully before installation and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIDO XL-C AML 455 and is the answer not in the manual?

Questions and answers

Related Manuals for Dormakaba AIDO XL-C AML 455

Summary of Contents for Dormakaba AIDO XL-C AML 455

  • Page 1 Digital Door Lock AML 455 XL-C 4607 User Manual Special Attention: 1. Mechanical keys please keep outdoor, just in case keys lock in doors. 2. Please replace for the battery when low wattage alarm. 3. Reading this manual carefully before installation and keep it for future reference.
  • Page 2 1. Introduction 1.1. Lock Structure 1.2. Packing List Check the following drawing to check whether the package contains all the parts. Name Name Front Panel Mortise Screws : M5*10mm (For Aluminum Door) Back Panel Mortise Screws : M4*25mm (For Wooden Door) Mortise M5*25mm Screw Card...

  • Page 3: Specifications

    1.3. Specifications Suitable for Doors Aluminum door AML 455 Models Applicable Wooden door Handle : ADC12 Working Materials 6V/4 x AA Batteries Panel : Aluminium Alloy Voltage Door Lock Weight Thickness to 2.5 KG 35-60mm Bluetooth Password Unlocking Data Fingerprint+Password+Card ≤ Card Capacity (Fingerprint 100)

  • Page 4: Installation

    2. Installation 2.1 Adjust the Handles Direction Notice : Adjust the handle according to the direction you open the door. The door opens to the left, with the handle facing left. The door opens to the right, with the handle facing right For Exterior Assembly: 1.Loosen the screw 2.Adjust the direction of...
  • Page 5 2.2. Installation Diagram (for 3585) Step 1 : Install Mortise Step 1: Push upward 1. According to the size and Press it Tightly Step 2: Push the indicated by the hole icon, Latch Bolt in the Mortise open the corresponding hole position as needed, Step 3: and install the lock body.
  • Page 6 2.2. Installation Diagram (for 3585) Step 4 : Connect Front and Back Panels Wires 1. Fix the front and back panels with screws suitable for the thickness of the door 2. The Arrow aligned of the rear panel faces in the left and right directions of the handle 3.

  • Page 7: Operation

    3. Operation 3.1. Download You can search for [AIDO Smart] in various app stores or scan the QR code above to download 3.2. Register 1. Click “Sign Up”and read the Privacy Policy after it pops up. Click “Agree” and enter the registration page. 2.
  • Page 8 (1) Generally, If the lock has not been set locally,, as long as the lock keyboard is touched, it will enter the add mode. After searching for the door lock, Click “Add” (2) After local setting, press "8#" on the lock, and the lock will enter the adding mode after verifying the administrator.
  • Page 9 3.6.User Management 3.6.1. Add New Members 1. Touch "Member" on App. 2. Click the "+" at the top right to name the member. 3.6.2.Add New Code 1. Touch "Member" on App. 2. Click the member you want to add a passcode. Warm Tips: Please save your user passcodes in time since they cannot display on the App.

  • Page 10: Add Fingerprint

    3.6.3. Add card 1. Touch "Member" on App. 2. Click the member you want to add card 3. Place a card to the Card Detection Area. 3.6.4. Add Fingerprint 1. Touch "Member" on App. 2. Click the member you want to add a Fingerprint. Warm Tips: Place your finger on the fingerprint reader as prompted by the App.
  • Page 11 For the elderly and children or people with lighter fingerprints, create more fingerprint files and enter different angles of their fingerprints, which will help improve the fingerprint recognition rate. 3.6.5. Authorize APP Permission 1. 1 Select the member you want to authorize APP permission, Click "Me" in the lower right corner of the app. 2.

  • Page 12: Unlock Record

    3.7. Generate Temporary code Touch “Temporary” to add a user code. There are 3 different passcode types to choose from. You can enter the passcode you generated on the door lock keypad. Please do not forget to enter " √ "after the passcode to confirm the unlocking. Notes: To protect privacy and security, the passcode will not be displayed on the app.
  • Page 13 4. Local settings for locks Enter system menu: Press”*#”on the keypad,and then input administrator information (If the administrator Enter system menu: Press”*#”on the keypad,and then input administrator information (If the administrator has not been added yet, the initial password is 123456) has not been added yet, the initial password is 123456) 1.
  • Page 14 5. FAQ 1) How to read operation records? In the Records of the main interface. . 2) Why can ’t I unlock it after open You need to perform an unlock verification in any the passage mode method, than the passage mode will take effect. 3) What is the purpose of Auto Lock You can set how long to lock after unlocking 4) After installation, touch sensing...
  • Page 15 Notes : ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 16 India Private Limited Regd. Office & Factory: Plot No. 48/3, 8th Avenue, Mahindra World City, Anjur Village, Chengalpattu Dist. Tamil Nadu 603002. service.india@dormakaba.com...
