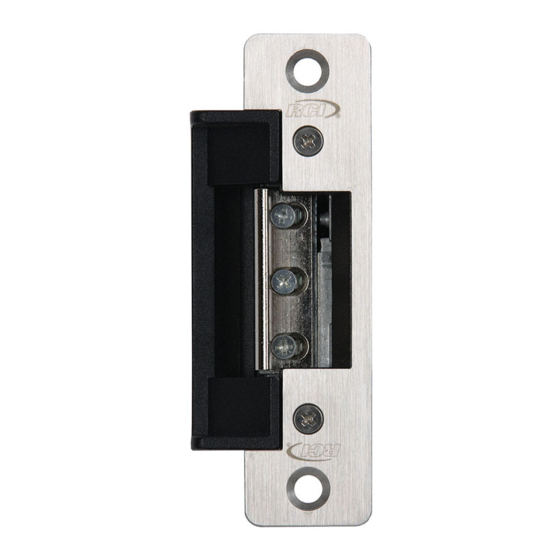

Dormakaba RCI 4 Series Installation Instructions

I N S T A L L A T I O N
1. Determine the vertical centerline of the door lock face and
the horizontal centerline of the latch.
IMPORTANT: When determining the horizontal centerline
observe the following:
FOR MORTISE LOCKS: Align the angled ramps of the lip
bracket with the deadlock trigger of the mortise latch.
FOR CYLINDRICAL LOCKS: Align the center of the latch with
the center of the strike opening.**
2. Transfer both the horizontal and vertical centerlines to the
doorframe.**

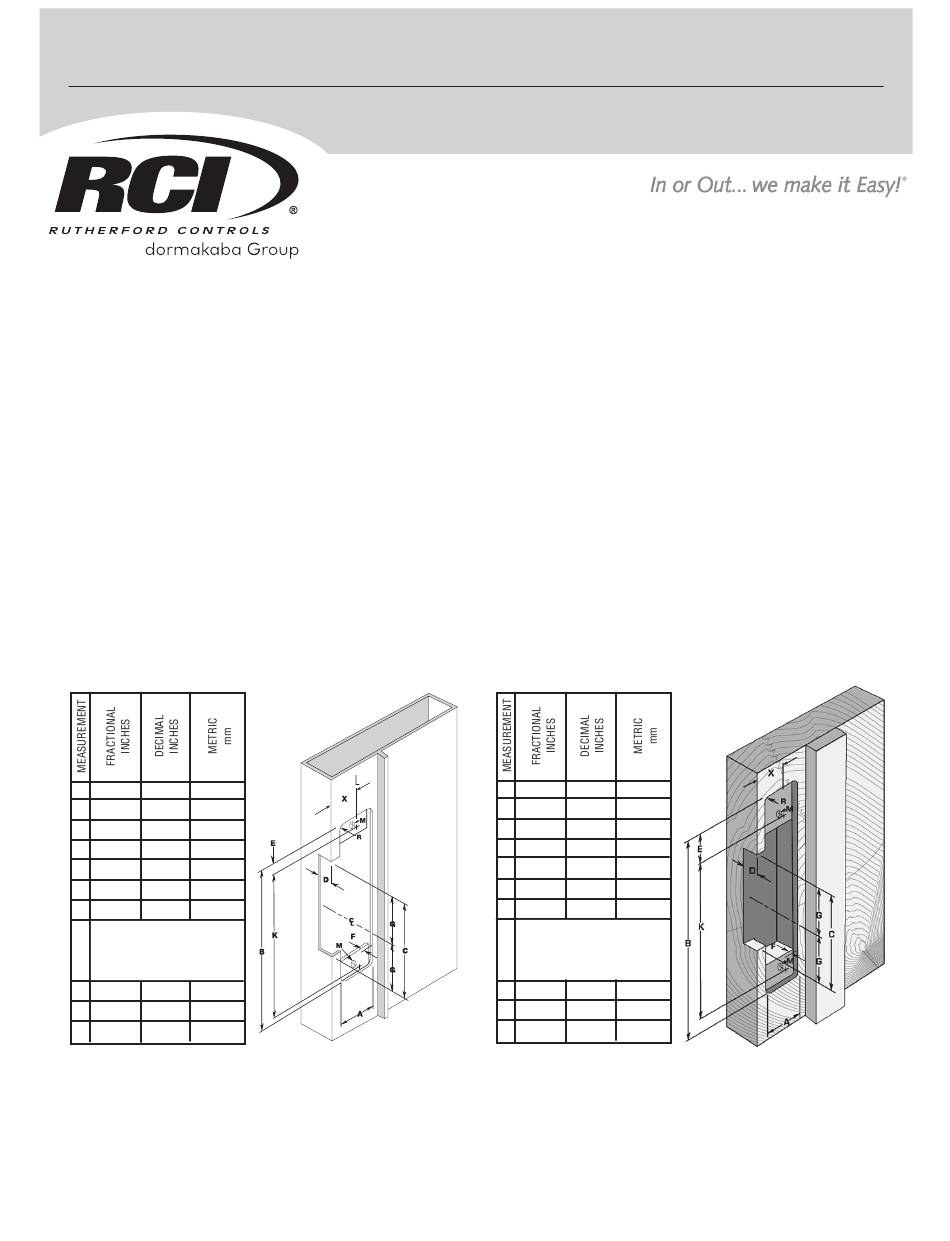

3. Prepare the doorframe for cutting as per the appropriate
drawing.
4. If required, install "no weld" mounting brackets as per the
instructions on page 3.
7104, 7304
Aluminum Frames, 1-1/2" D
4104, 4304
Aluminum Frames, 1-1/2" D
Any modular A41, A43, A71 or A73
with B4704 faceplate
A 1-1/4 1.250 31.75
B 4-7/8 4.875 123.83
C 3-3/8 3.375 85.73
D 7/8 .875 22.23
E 3/8 .375 9.53
F 1/8* .125* 3.18*
G 1-11/16 1.688 42.86
Vertical Vertical Vertical
Vertical Centerline
X C/L C/L C/L
of Door**
Door Door Door
R 5/32 .156 3.97
K 4-1/8 4.125 104.78
M 12-24 — —
NOTE: Specifications subject to change without notice.
* Dimension F is measured from face of mounting tab to face of frame.
** Dimension X on the drawing is determined by the vertical centerline of the door. If the latch incorporates a deadlocking pin additional steps will be
necessary to ensure proper operation of the deadlocking pin. Measure the thickness of the deadlocking pin and add this thickness to Dimension X to
relocate the vertical centerline an appropriate distance on the frame.
For wood frame door installations, substitute #12 wood screws for dimension M.
†
is47a
www.rutherfordcontrols.com • Phone: 1.800.265.6630 • fax: 1.800.482.9795 • e-mail: sales@rutherfordcontrols.com
Instructions
5. Attach the strike insert (coil unit or "motor") to the
lip bracket with the small machine screws provided.
(M4 x 9.5mm)
6. Attach the strike faceplate to the lip bracket with machine
screws (M4 x 9.5mm) provided. (It may be desirable to leave
these screws slightly loose to facilitate insertion into the
doorframe.)
7. Connect the incoming wiring from the power supply to the
terminal screws on the strike insert. RCI door strikes are
not polarity sensitive although be certain to observe proper
polarity if a suppression diode is required for access control
applications.
8. Install the door strike in the doorframe using the screws
provided.
7105, 7305
4105, 4305
Any modular A41, A43, A71 or A73
with B4705 faceplate
C
A 1-1/8
B 5-7/8
C 3-3/8
D
E
F 1/8*
G 1-11/16
Vertical Vertical Vertical
X
Door
R 5/32
K 5-3/8
M 12-24
© 2017 RutheRfoRd ContRols Int'l | dormakaba Group
Aluminum & Wood Frames, 1-1/2" D
Aluminum & Wood Frames, 1-1/2" D
1.125 28.58
5.875 149.23
3.375 85.73
7/8 .875 22.23
1/4 .250 6.35
.125* 3.18*
1.687 42.86
Vertical Centerline
C/L C/L C/L
of Door**
Door Door
.156 3.97
5.375 136.53
— —
†
4 /7 Series
Electric Strikes
PCN16045
R07/17GR
