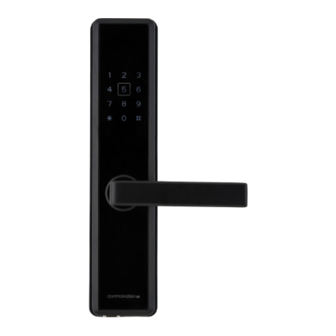

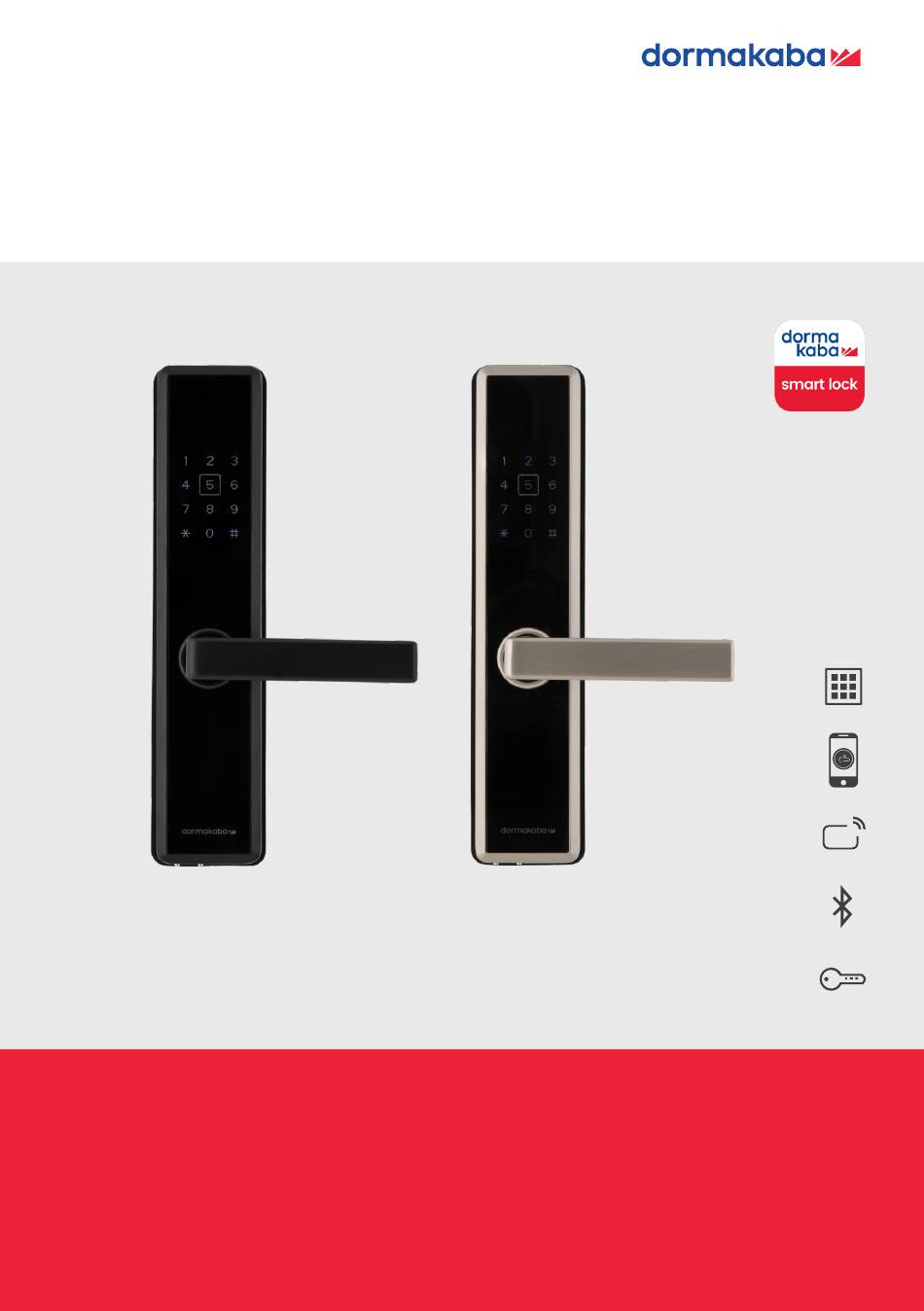

  • Page 1 M Series User‘s Guide...
  • Page 3 Please use the following QR-codes to download the Android/iOS apps and to access the app manual. Get the free dormakaba dormakaba SmartLock app app manual The M Series lock is supplied with the following: User fobs Keys AA alkaline batteries...

  • Page 4: Getting Started

    Getting Started Default Status Indicators Once the batteries are installed the M series M series will provide an audible message will ask you to change the administrator PIN “operation succeeded” every time a procedure code. has been correctly done. The default administrator PIN code is M series also provides visual indicators when 00123456.
  • Page 5 M Series Outside Escutcheon Inside Escutcheon Card/fob reader 9V terminals Battery cover Low battery indicator USB Type C port Inside lever Keypad Speaker Passage/privacy mode switch Unlocking indicator Key override cylinder Privacy mode indicator Outside lever Screw cover...
  • Page 6 BLE App user 00-09 To unlock the lock, share codes and lock logs Notes • Temporary PIN codes are shared using the dormakaba app • Temporary PIN and cards/fobs can’t be used to reset the lock or change administrator PIN codes...
  • Page 7 M Series Functions Low Battery alarm Keypad Lockout Breaking In Alarm The low battery indicator will The lock will enter into a lockout An alarm will be activated flash, an audible message is mode when a wrong user PIN if someone is attempting to...
  • Page 8 1. Register Administration PIN Code 1.1 Register Administrator PIN Code Factory reset or a brand new M series: The M series will ask you to change the default administrator PIN code (00123456) every time the screen is initialised. An audible message is heard “please reset administrator PIN code”.
  • Page 9 2. Register Users 2.1 Register User PIN Codes Please make sure an administrator PIN code (different to the default one) has been registered in the lock. Step 1 Step 2 ADMIN CODE • Wake up the keypad by placing a palm on •...
  • Page 10 2. Register Users 2.1 Register User PIN Codes continued Step 5 Step 6 USER • Audible message - “1 general user PIN • Audible message - “please input user ID” code” • Enter a user ID from 01 to 47 •...
  • Page 11 2. Register Users 2.2 Register General User Cards/Fobs Please make sure an administrator PIN code (different to the default one) has been registered in the lock. Step 1 Step 2 ADMIN CODE • Wake up the keypad by placing a palm on •...
  • Page 12 2. Register Users 2.2 Register General User Cards/Fobs continued Step 5 Step 6 USER • Audible message - “1 general user card key” • Audible message - “please input user ID” • Press 1 for general user card key • Enter a user ID from 10 to 79 •...
  • Page 13 2. Register Users 2.3 Register Temporary User Cards/Fobs Temporary user cards/fobs are to provide temporary access to users. Temporary PIN and cards/fobs can’t be used to reset the lock or change administrator PIN codes. Repeat steps 1,2,3 and 4 on page 11, then continue with the steps below. Step 5 Step 6 USER...
  • Page 14 2. Register Users 2.4 Register Admin Cards/Fobs Admin Cards/fob are used to provide a quick access to the lock menu to program it. Repeat steps 1,2,3 and 4 on page 11, then continue with the steps below. Step 5 Step 6 USER •...

  • Page 15: Delete Users

    3. Delete Users 3.1 Delete User Codes The following procedure is to delete an individual user PIN code. Step 1 Step 2 ADMIN CODE • Wake up the keypad by placing a palm on • Enter the 6 to 12 digit administrator PIN the screen code •...
  • Page 16 3. Delete Users 3.1 Delete User Codes continued Step 5 • Audible message - “please input user ID” • Enter the user ID from 01 to 47 to be USER deleted • Press # • Audible message - “user ID __” •...
  • Page 17 3. Delete Users 3.3 Delete Individual User Cards/Fobs The following procedure is to delete individual user cards/fobs. Step 1 Step 2 ADMIN CODE • Wake up the keypad by placing a palm on • Enter the 6 to 12 digit administrator PIN the screen code •...
  • Page 18 3. Delete Users 3.3 Delete Individual User Cards/Fobs continued Step 5 • Audible message - “please input user ID” • Enter the user ID from 00 to 89 to be USER deleted • Press # • Audible message - “user ID __” •...
  • Page 19 3. Delete Users 3.5 Delete All Temporary User Cards/Fobs Repeat steps 1,2 and 3 on page 17 and continue with below steps to delete all temporary user card/fobs. Step 4 Step 5 • Audible message - “3 delete all card keys” •...
  • Page 20 3. Delete Users 3.6 Delete All Master Admin Cards/Fobs Repeat steps 1,2 and 3 on page 17 and continue with below steps to delete all master admin cards/fobs. Step 4 Step 5 • Audible message - “3 delete all card keys” •...

  • Page 21: System Settings

    4. System settings 4.1 Sound/Volume setting The following procedure is to set the lock’s volume. Step 1 Step 2 ADMIN CODE • Wake up the keypad by placing a palm on • Enter the 6 to 12 digit administrator PIN the screen code •...
  • Page 22 4. System settings 4.1 Sound/Volume setting continued Step 5 • Audible message - “1 - high, 2 - medium, 3 - low, 4 - mute” • Select either 1 or 2 or 3 or 4 according to the level of volume desired •...
  • Page 23 4. System settings 4.3 Privacy Mode Repeat steps 1,2 and 3 on page 21 and continue with below steps to turn on/off privacy mode. Step 4 Step 5 • Audible message - “1 privacy mode” • Audible message - “1 turn on 2 turn off” •...
  • Page 24 5. Factory Reset And Deleting The Lock’s Memory 5.1 Factory Reset The administrator PIN code must be known to perform a factory reset. If the current master PIN code is unknown follow the instruction to set a master PIN code on page 8 of this manual before proceeding with the Factory Reset.

  • Page 25: Lock Modes

    6. Lock Modes 6.1 Passage Mode 6.2 Automatic Lock Mode Mode switch Mode switch OPEN LOCK OPEN LOCK Move the switch, located at the lock rear escutcheon, By default the lock is in this mode. Move the from LOCK position to OPEN position to enter into switch, located at the lock internal escutcheon, from the passage mode.

  • Page 26: Menu Summary

    Menu summary Creating a administrator PIN code after factory reset or brand new lock New 6 to 12 New 6 to 12 digit admin digit admin PIN code PIN code Creating user PIN codes 6 to 12 digit ID: 01 to 47 admin PIN code New 6 to 12...
  • Page 27 Menu summary Deleting user cards/fobs 6 to 12 digit (select an option below) admin PIN code Deleting individual user cards/fobs ID: 00 to 89 Deleting all general user cards/fobs Deleting all temporary user cards/fobs Deleting all admin user cards/fobs Systems settings New 6 to 12 (select an option below) digit admin...
  • Page 28 User Code List Please keep records in a safe place. Code Name...
  • Page 29 Products will be free from defects for a period of 1 year. 1. If a defect covered by warranty appears before the end of the Warranty Period, then dormakaba will, in its sole discretion, either: (a) replace or repair the Product or the defective part of the Product free of charge;...
  • Page 32 Head Office Head Office 12-13 Dansu Court Building P, 61-69 Patiki Road Hallam VIC 3803 Avondale, Auckland 1026 T: 1800 675 411 T: 0800 436 762 info.au@dormakaba.com info.nz@dormakaba.com www.dormakaba.co.nz www.dormakaba.com.au DDL-M Series Users Guide_A5_AU_NZ_JAN 2022 - DDL00003. Subject to technical alterations.
