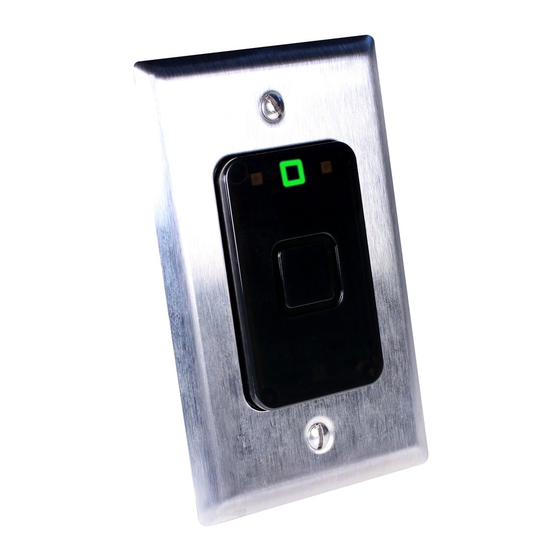

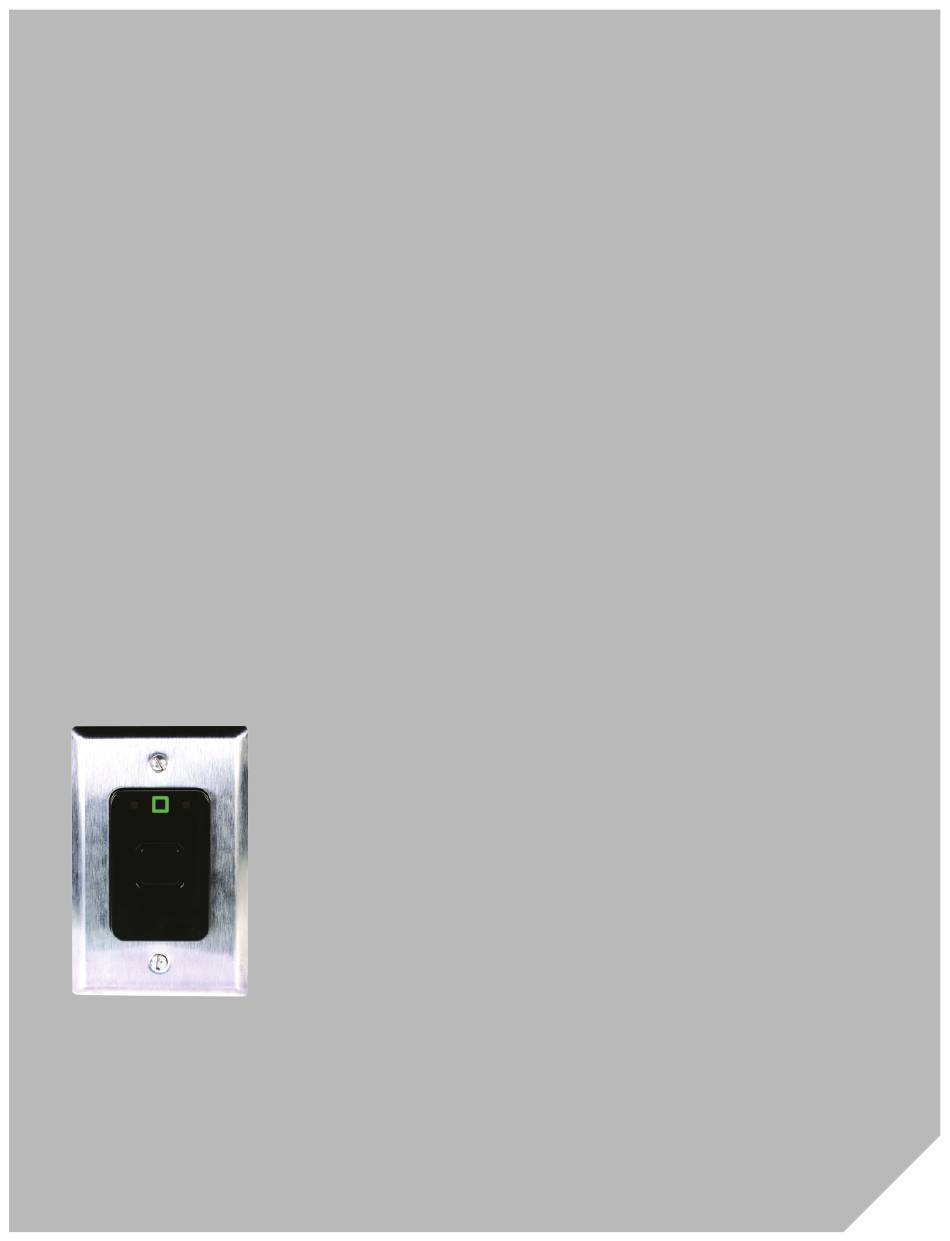

- Page 1 INSTALLATION GUIDE Saflok SR Series RFID Concierge...
- Page 2 Table of Contents Introduction ........................2 Installation Requirements .
- Page 3 Installation Requirements *Important* Review your local Fire, Electrical, and Building codes before installing this product. The installer must be capable and knowledgeable of electrical access control systems. There are many variations of access control systems and local codes; for this reason, the SR RFID Concierge kit must be installed by a qualified installer. •...
- Page 4 Door Preparation Layout (Part 1) For Door Installations with Saflok electric mortise lock Door Face View Saflok SR Series RFID Concierge Installation Guide - PK3673_T_07_16...
- Page 5 Door Preparation Layout (Part 2) For Door Frame with Saflok electric mortise lock Saflok SR Series RFID Concierge Installation Guide - PK3673_T_07_16...
- Page 6 Mounting Preparation SR1/SR2 mounting preparation dimensions SR1 Surface Mount installation SR2 Flush Mount installation 1-11/16 2-7/8 [42,9] [73] 17/32 [13,5] 1-7/8 [47,6] HOLE COMMENTS INCH[mm] INCH [mm] INSTALLATION WITH DRYWALL INSERT 7/32 1-1/2 [38,1] INSTALLATION WITH METAL SCREW 9/64 1/2 [12,7] 15.9 Controller box mounting prep dimensions Metal Controller Box...
- Page 7 Mounting Preparation SR2/SR3 - standalone mounting preparation for custom integration applications No controller box option bracket layout. Kaba recommends using the controller boxes that are available with the kits. However, there are several holes on the bracket available for custom mounting applications. It is the integrators responsibility to ensure the proper hardware is procured to mount the bracket in the desired location and that the bracket is properly secured.
- Page 8 Mounting Preparation SR2/SR3 - Integration rules For optimum reading performance the SR1 (surface mount), SR2 (with cover plate and box) and SR3 configurations are recommended. The readers in these configurations are specifically tuned to their configured environment. However, the SR2/SR3 readers can be integrated into custom applications. Successfully integrating the readers into a custom application is the sole responsibility of the integrator.
- Page 9 SR Concierge Kit Installation Instructions 1. Prepare door mortise pocket and wire routing tunnel as previously described. (Pg. 3-5) 2. Install power transfer hardware as outlined by manufacturer instructions. 3. Install any supplied mounting brackets, controller boxes, and assemblies as desired using the installation mount- ing templates/dimension guidelines outlined previously.
- Page 10 Annex Schematic diagram + (WHITE) - (BLACK) MOTOR - (BLACK) + (WHITE) DAJ SWITCH - (GREEN) + (RED) DEAD BOLT (3) 22 AWG TWISTED PAIR SWITCH SHIELDED CABLE (15 METER MAXIMUM) DEAD BOLT SWITCH POWER INPUT (WHITE) 12-24 VOLTS (WHITE) POWER AC OR DC SUPPLY...
- Page 11 Annex Mortise Preparation SWITCH DEAD BOLT MOTOR SWITCH Ground SR Controller Internal Parts Saflok SR Series RFID Concierge Installation Guide - PK3673_T_07_16...
- Page 12 Annex Programming Programming Port SR Controller Programming Port The SR RFID Concierge lock can be programmed the following two ways. 1. Through the USB port on the serial interface board of the controller using the standard hand held programming probe. 2.
- Page 13 Annex Parts list Saflok SR Series RFID Concierge Installation Guide - PK3673_T_07_16...
- Page 14 Annex Parts list Regulatory Compliance: This device complies with Part 15 of the FCC Rules,. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 15 Kaba Customer Services & Support Saflok: 1.800.999.6213 / + 1.248.837.3700 General Information: www.kabalodging.com Online Consumable Orders: www.saflokstore.com To access all of our easy steps, please visit our Support Website: PK3673_T_07_16 www.kabalodgingsupport.com...
