Sumake FPB030 Manual

Sumake FPB030 Manual

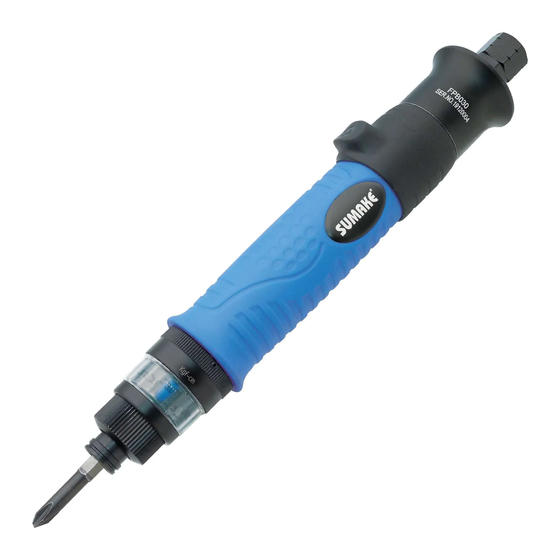

Full-auto shut off air composite screwdriver

Advertisement

Quick Links

SUMAKE
Free
Speed
MODEL
r/min
FPB030
1000
FPB085
1000
Recommend Air Pressure: 6.0 kg/cm²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
Full-Auto Shut Off
Air Composite Screwdriver
Specification:
Torque range
Min. air hose bore
(±3%)
Nm
Kgf-cm
6kg/cm
0.5-3
5-30
1.5-8.5
15-85
PNEUMATIC TOOLS
Vibration
(mm)
EN ISO 28927-2
5kg/cm
²
²
5.0
6.35
No Load : 0.9 m/s² No Load : 67 dB(A)
8.0
9.5
No Load : 1.0 m/s² No Load : 72 dB(A)
Uncertainty K= 1.5 m/s² Uncertainty K= 3dB
Noise and Vibration:
Noise
EN ISO 15744
Sound pressure level
Remark
Please always
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
hearing!
FPB030(85)-S-2001B-MIF

Advertisement

loading
Need help?

Need help?

Do you have a question about the FPB030 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sumake FPB030

  • Page 1 No Load : 1.0 m/s² No Load : 72 dB(A) noise level > 80 dB(A) due to risk of impaired Recommend Air Pressure: 6.0 kg/cm² Uncertainty K= 1.5 m/s² Uncertainty K= 3dB hearing! FPB030(85)-S-2001B-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
  • Page 2: Ec Declaration Of Conformity

    DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: FULL-AUTO SHUT OFF AIR COMPOSITE SCREWDRIVER Model/ Serial No.: FPB030, FPB085 to which this declaration applies, complies with these normative documents: ...
  • Page 3 No Load : 1.0 m/s² No Load : 72 dB(A) noise level > 80 dB(A) due to Uncertainty K= 1.5 risk of impaired Recommend Air Pressure: 6.0 kg/cm² Uncertainty K= 3dB m/s² hearing! FPB030(85)-S-2302C-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
  • Page 4 UK DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: FULL-AUTO SHUT OFF AIR COMPOSITE SCREWDRIVER Model/ Serial No.: FPB030, FPB085 to which this declaration applies, complies with these normative documents: ...
  • Page 5 OPERATION MANUAL AIR SUPPLY 1. Air tools are adversely affected by moisture. Since air from compressor contains much moisture and dust, it is desirable to provide a filter in the pipeline to remove such undesirable elements. Also take the drain out from air tank every day. 2.
  • Page 6 FPB085 FULL-AUTO SHUT OFF AIR COMPOSITE SCREWDRIVER FPB085-P-2306B-MI...
  • Page 7: Parts List

    Internal Gear 77-1 7S2113 Screw 1S6063 Internal Gear 2P3023 Silencer 32-1 4W6023 Washer 5N3113 Hook Plate 8E9963 SUMAKE Logo Plate 2Q5001 O Ring 5A6070 Center Housing (Blue) 7L0002 Washer 7S6503 Ball Bearing 2S6902 Air Inlet Bushing 6N2006 C Ring 7S2102...
  • Page 8 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
  • Page 9 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 10 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
  • Page 11 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
