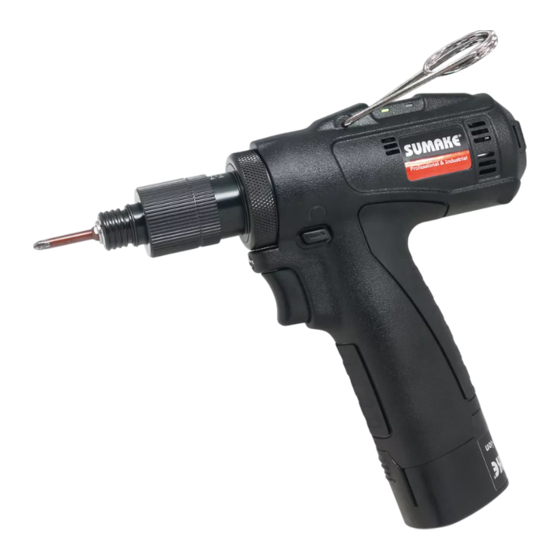

10.8v brushless full auto shut-off cordless screwdriver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATION AND MAINTENANCE MANUAL
ES-B11 series
ITEM NO.:
10.8V BRUSHLESS FULL AUTO SHUT-OFF
CORDLESS SCREWDRIVER
ES-B11002H(3)(5)(6)-I-2402D-K2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES-B11 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Sumake ES-B11 Series

Summary of Contents for Sumake ES-B11 Series

  • Page 1 OPERATION AND MAINTENANCE MANUAL ES-B11 series ITEM NO.: 10.8V BRUSHLESS FULL AUTO SHUT-OFF CORDLESS SCREWDRIVER ES-B11002H(3)(5)(6)-I-2402D-K2...

  • Page 2: Specifications

    Specifications ES-B11002H ES-B11003 ES-B11005 ES-B11006 MODEL INPUT VOLTAGE(DC) DC 10.8V 0.5-2 0.8-3 1.5-4.5 hard joints TORQUE (N.m) 0.5-1.6 0.8-2.4 1.5-3.6 2-4.8 soft joints 80%↓ ±3% Torque accuracy (%) Stepless Torque adjustment 2700 1400 Unloaded Speed (min )±10% 1900 1000 Machine 2.3~3.5 2.6~4.0 4.0~5.0...

  • Page 3: Torque Adjustment Operation

    Torque Adjustment Operation To adjust the torque on these screwdrivers. Proceed as follows: 1. Determine the torque output of the tool by checking a tightened fastener with a torque wrench. 2. Increase or decrease the torque by rotating torque Adjusting Ring. Rotating the Ring clockwise to a higher number on the torque Scale increase torque output while rotating the Ring counterclockwise to a lower number decreases the torque output.

  • Page 4: Icon Instructions

    Before you use the Cordless Screwdriver for the first time, it is essential to read and understand the manual completely (including the spare parts view). The term “Cordless Screwdriver” in all of the warning listed below refers to your main operated appliance. Icon Instructions 1.
  • Page 5 16. To prevent parts in gearbox from damage, replace the grease at least once for every year. 17. It is necessary for the operators to read and follow up all the operating instructions in this manual. SUMAKE is not responsible for any personal injury that might cause of disobeying the safety advice.
  • Page 6 2. Do not attempt to disassemble or reassemble the device it may result in poor performance or danger of injury; the warranty applies only to initial package. 3. Do not repair the device with other than genuine SUMAKE replacement parts may result in poor performance or danger of injury, the warranty will be considered void.

  • Page 7: Insert Battery Steps

    2. Follow below steps to correctly install & remove battery. Insert Battery Steps Remove Battery Steps (1) Take screwdriver (1) Press the release button and take it out of the and battery. Device. Battery Release Button (2) Insert the rechargeable battery into the device (2) Follow the arrow direction.

  • Page 8: Function / Operating Introduction

    Function / Operating Introduction Function Name Table Description Description Trigger Switch S Waist Hook Forward/Reverse Lever OK/NG/Power/Hi & Lo Indicating Light Bit Sleeve battery Torque Fixing Ring Driver Hook Torque Fixing Ring/Coupler...

  • Page 9: Manual / Function

    Manual / Function 1. Full Auto Shut-Off Screwdriver It stops automatically when the screw has been tightened up and reached the set-up torque level. The device will not cause damage of task since no continue running after screws are tightened. (1) Trigger Switch The LED lights are on when the trigger switch has been pressed about one-third down, and then the screwdriver starts functioning when the switch trigger has been pressed half way down;...
  • Page 10 (3) Bit Sleeve To Switch the bit and compatibility, pull the head of the type B screwdriver, and install the bit according to the diagram below, and push it in following the arrow indicated on the diagram. Pull the bit holder Insert the bit (4) Torque Adjustment Ring: Turn torque adjust ring counter clock wise to increase torque output, on the other hand decrease...
  • Page 11 (7) OK/NG/Power/Hi& Lo Indicating Light Explanation Protection Explanation: The indicating LEDS will show Hi/Lo when push Forward/Reverse lever to the middle position. Speed can't be adjusted when temperature protection is activated. Please wait until temperature protection is deactivated. Release Screw Current switch to reaches set...

  • Page 12: Other Cautions

    3. SUMAKE is not responsible for any poor performance or damage caused by customers own modification of the tool. 4. It is necessary for the management to have every operator to read and follow all instructions in this manual.

  • Page 13: Eu Declaration Of Conformity (Doc)

    EU Declaration of Conformity (DOC) SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： BRUSHLESS FULL AUTO SHUT-OFF CORDLESS SCREWDRIVER Model/ Serial No.： ES-B11002H, ES-B11003, ES-B11005, ES-B11006...
  • Page 14 ES-B11002H(3)(5)(6) FULL AUTO SHUT-OFF CORDLESS SCREWDRIVER ES-B11002H(3)(5)(6)-P-2401B-K2...
  • Page 15 ES-B11002H(3)(5)(6) FULL AUTO SHUT-OFF CORDLESS SCREWDRIVER PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty EPCD91041 Coupler EPGG21231 Gear Seat For ES-B11003 EPCAB00017-3 Housing-Upside (ESD) EPGG92287 Gear Seat For ES-B11005 EPCH20527 Screw EPG21311 Washer (High Speed) For ES-B11002H EPCJ20014-2 Waist Hook EPG20104-1 Central Gear For ES-B11003...
  • Page 16 NOTE www.SUMAKE.com www.aircompressors.com.tw...

This manual is also suitable for:

Es-b11002hEs-b11003Es-b11005Es-b11006
