Summary of Contents for Sumake ES-B1005M

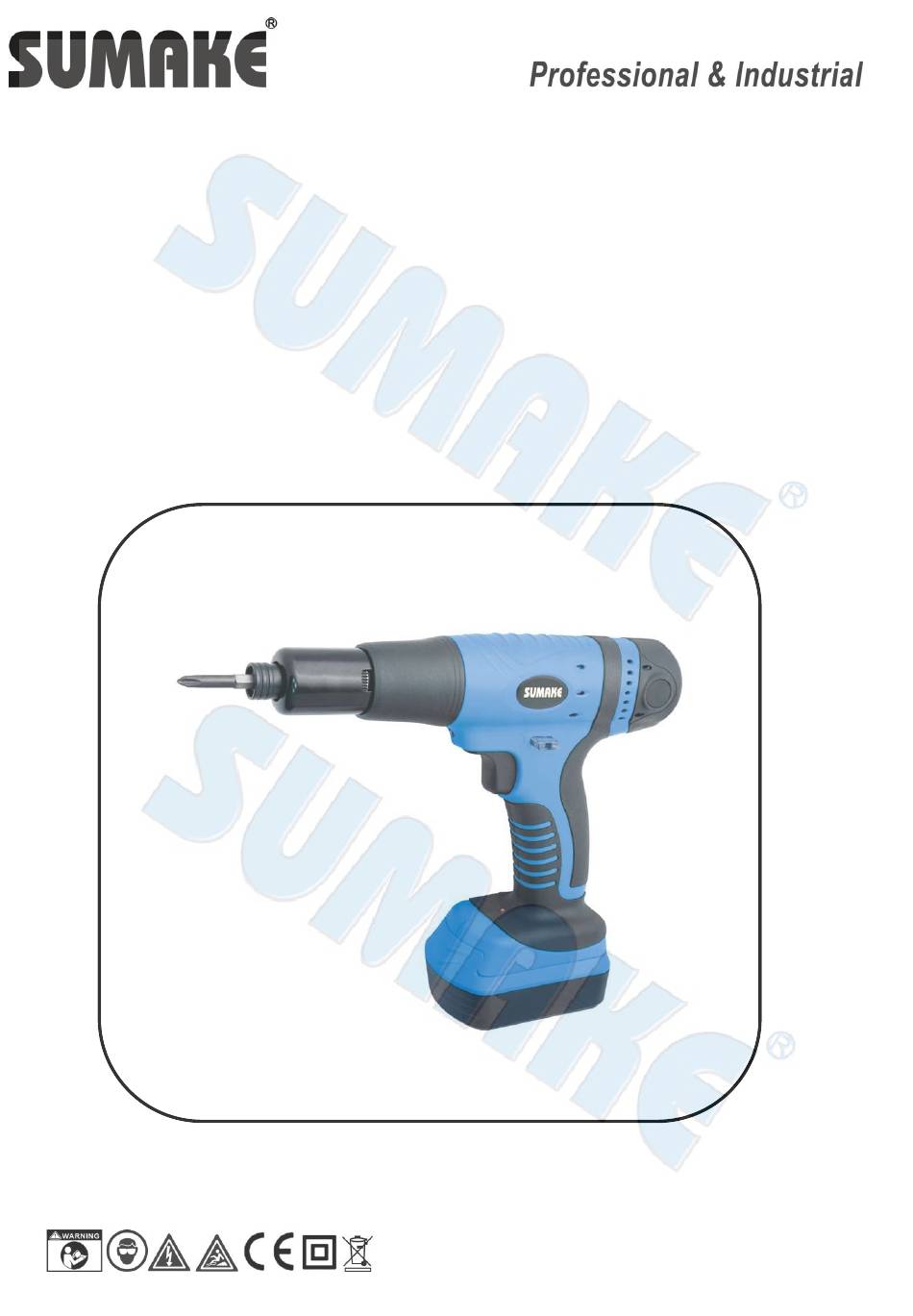

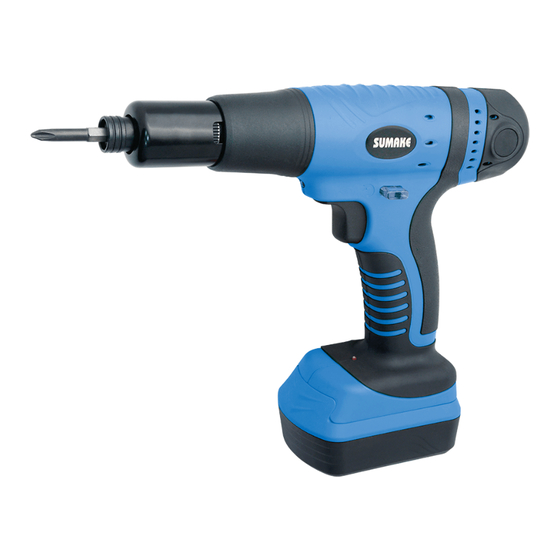

- Page 1 INSTRUCTION MANUAL ES-B1005M, ES-B1009M, ES-B1012M ITEM NO.: 10.8V BRUSHLESS FULL AUTO SHUT-OFF CORDLESS SCREWDRIVER - LOW COUNTERFORCE ES-B1005(9)(12)M-I-2002C-MI...
-
Page 2: General Safety Rules
General Safety Rules Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. 1. Work area (1) Keep work area clean and well lit. Cluttered and dark areas invite accidents. (2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. - Page 3 job better and safer at the rate for which it was designed. (2) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. (3) Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
-
Page 4: Technical Specification
We have left out all of the technical terms so that you can readily understand how to get the maximum performance from your SUMAKE Cordless screwdriver, and how to avoid damaging the tool or injuring yourself. But, to accomplish this, we need you to do two things: 1. -
Page 5: Safety Instructions
Safety instructions Carefully read this manual before using this cordless screwdriver. Make sure that you know how the power tool functions and how to operate it. Maintain the power tool in accordance with the instructions to ensure that it functions properly. Keep this manual with the power tool. -
Page 6: Electrical Safety
Electrical Safety When using electric power tools always observe safety regulations where applicable to reduce the risk of fire, electric shock and personal injury. Always check that the power supply corresponds to the voltage on the rating plate. Be sure the supply is the same as the voltage given on the rating plate of your charger. Your charger is fitted with a two core and plug. -
Page 7: Battery Charging System
Battery Charging System This battery and charging system combination is the only one that will work with all Cordless tools. It will accept either the round or oval shaped batteries. The first step in preparing a new tool for operation is to fully charge the battery. -
Page 12: Eu Declaration Of Conformity (Doc)
EU Declaration of Conformity (DOC) SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： CORDLESS SCREWDRIVER Model/ Serial No.： ES-B1005M, ES-B1009M, ES-B1012M The object of the declaration described above is in conformity with the relevant union harmonization legislation: ... - Page 13 EU Declaration of Conformity (DOC) SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： BATTERY CHARGER Model/ Serial No.： BC10T01A, BC10T01B, BC10T01C The object of the declaration described above is in conformity with the relevant union harmonization legislation: ...
- Page 14 ES-B1005M 10.8V BRUSHLESS FULL AUTO SHUT-OFF CORDLESS SCREWDRIVER - LOW COUNTERFORCE ES-B1005M-P-2211A-MI...
- Page 15 ES-B1005M 10.8V BRUSHLESS FULL AUTO SHUT-OFF CORDLESS SCREWDRIVER - LOW COUNTERFORCE PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 3S7088 Anvil 31-6 7S2007 Ball Bearing 3S2103 Bushing 31-7 BW110000 Washer 6N5123 Spring 6S1014 Washer 3S2138 Bushing 32-1 7S2161...
- Page 16 NOTE www.SUMAKE.com www.AIRCOMPRESSOR.com.tw...
