EMS FireCell Quick Start Manual page 3

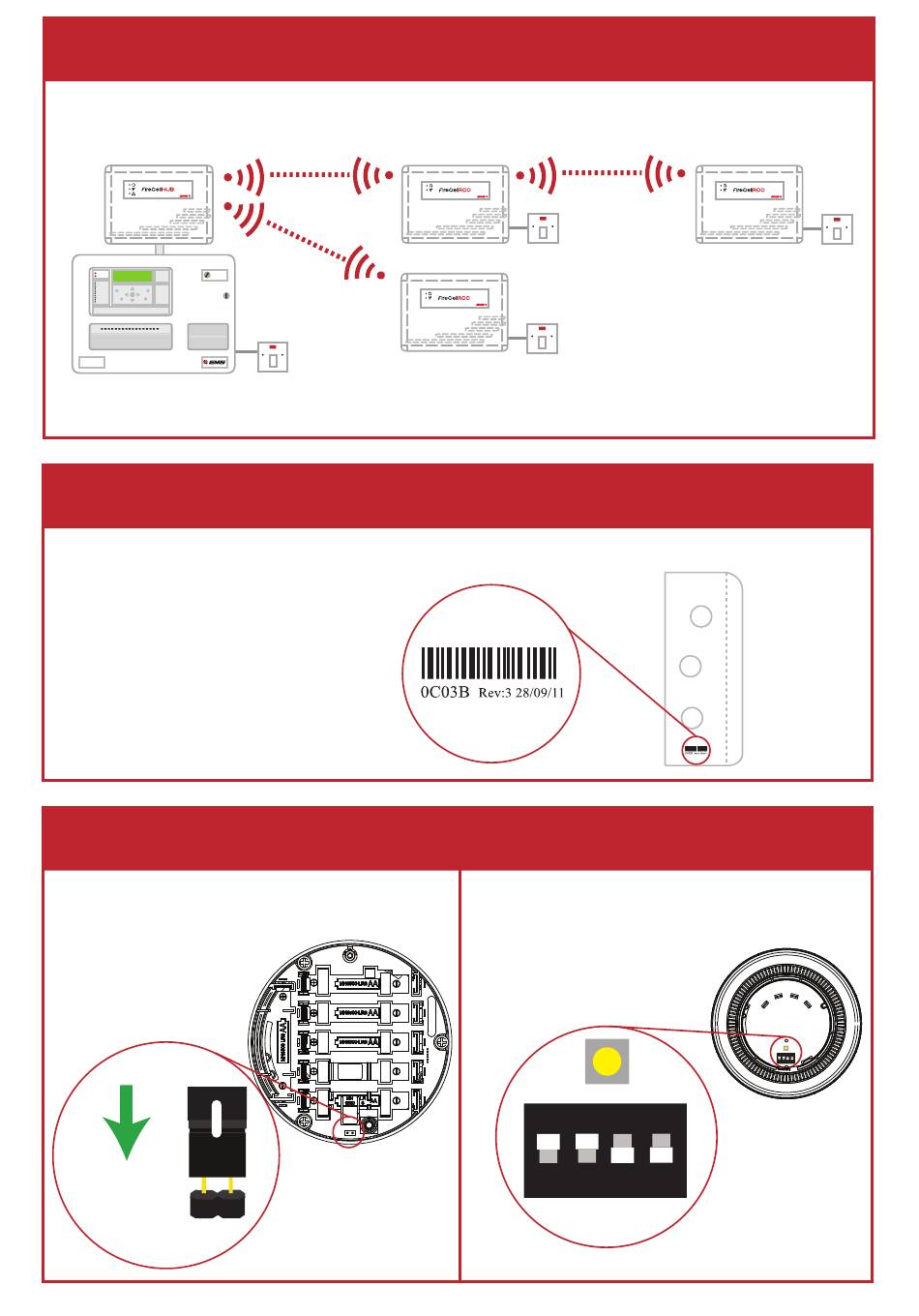

Step 2 - Install the RCCs
The survey report will also detail the locations of the RCCs.
FIRE
Fire Alarm Control
See FireCell Instruction Pack for more information.
Step 3 - Log on the RCCs
Go to Step 4 if the system has been supplied fully programmed.
The RCCs can be logged on to the
system using the RCC's ident
number which is located on the
side of the unit.
See FireCell Instruction Pack for
more information.
Step 4 - Power up the devices
Detectors, Sounders, Call Points and
Input/Output Units have power jumpers
as shown:
Link both pins
to power device
©2024 EMS Ltd. All rights reserved
230V AC
Page 3 of 4
230V AC
230V AC
Combined Sounder
powered by changing the orientation of
Switch 1 as shown:
Switch 1 on = POWER ON
ON
1 2 3
MK140-99 (Issue 7) 18/09/2024 AJM
230V AC
Detectors
ON
1 2 3 4
4
are
