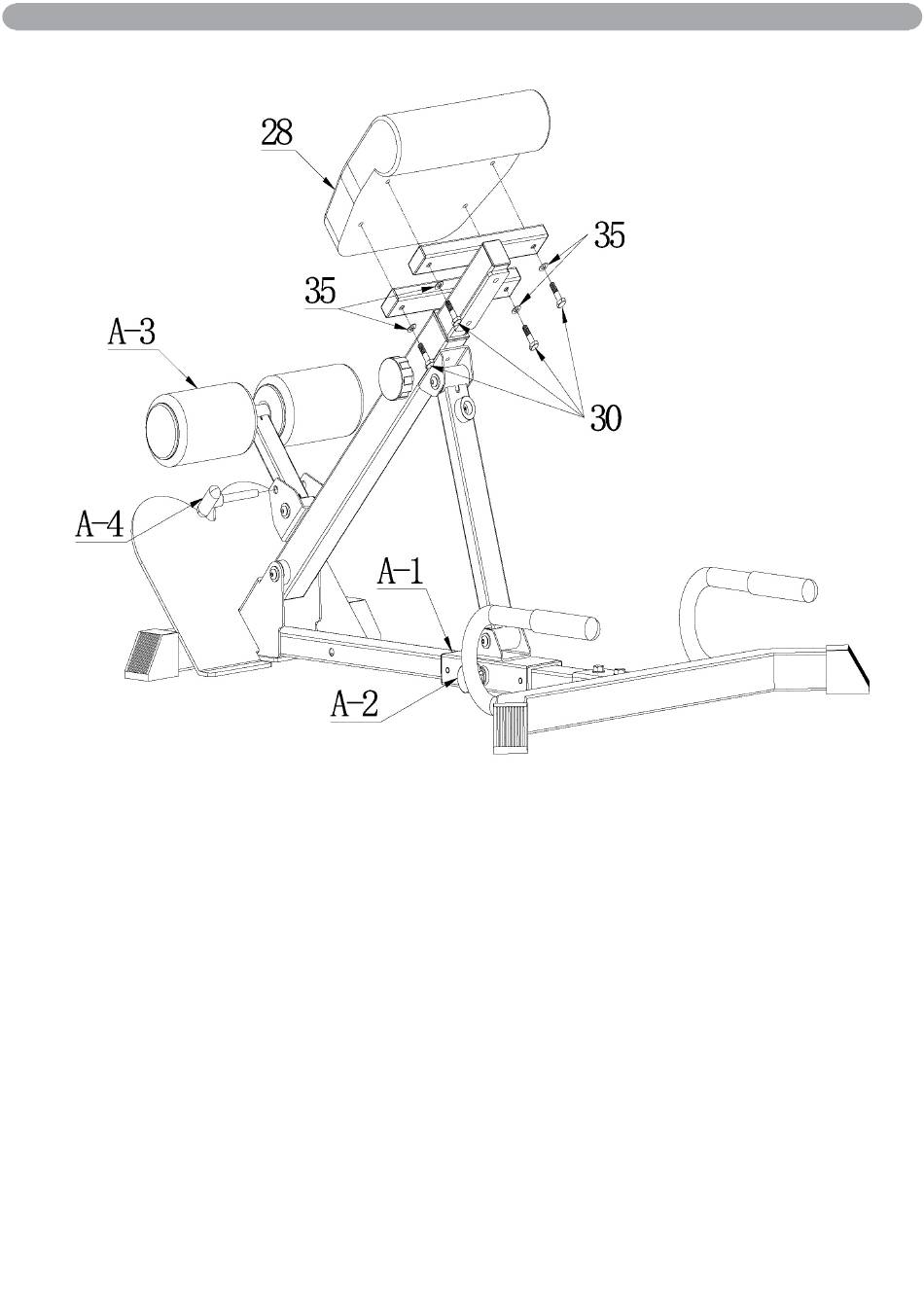

Step 3:
Pull out the M16 Elastic bolt (small head) (A-2, No. 12). Lock it well after adjusting the Gear adjust-
ment assembly (A-1, No. 3) to a suitable hole position.
Step 4:
Pull out the T-bolt (A-4, No. 19). Insert it well after adjusting the Hook leg assembly (A-3) to a suitable
hole position.
Step 5:
Lock the Back cushion (No. 28) into the back cushion support tube of the pre-assembled part A using:
• 4 pcs Outer hexagon screws M8x35 (No. 30)
• 4 pcs Flat washers Φ8 (No. 35)
Assembling steps
