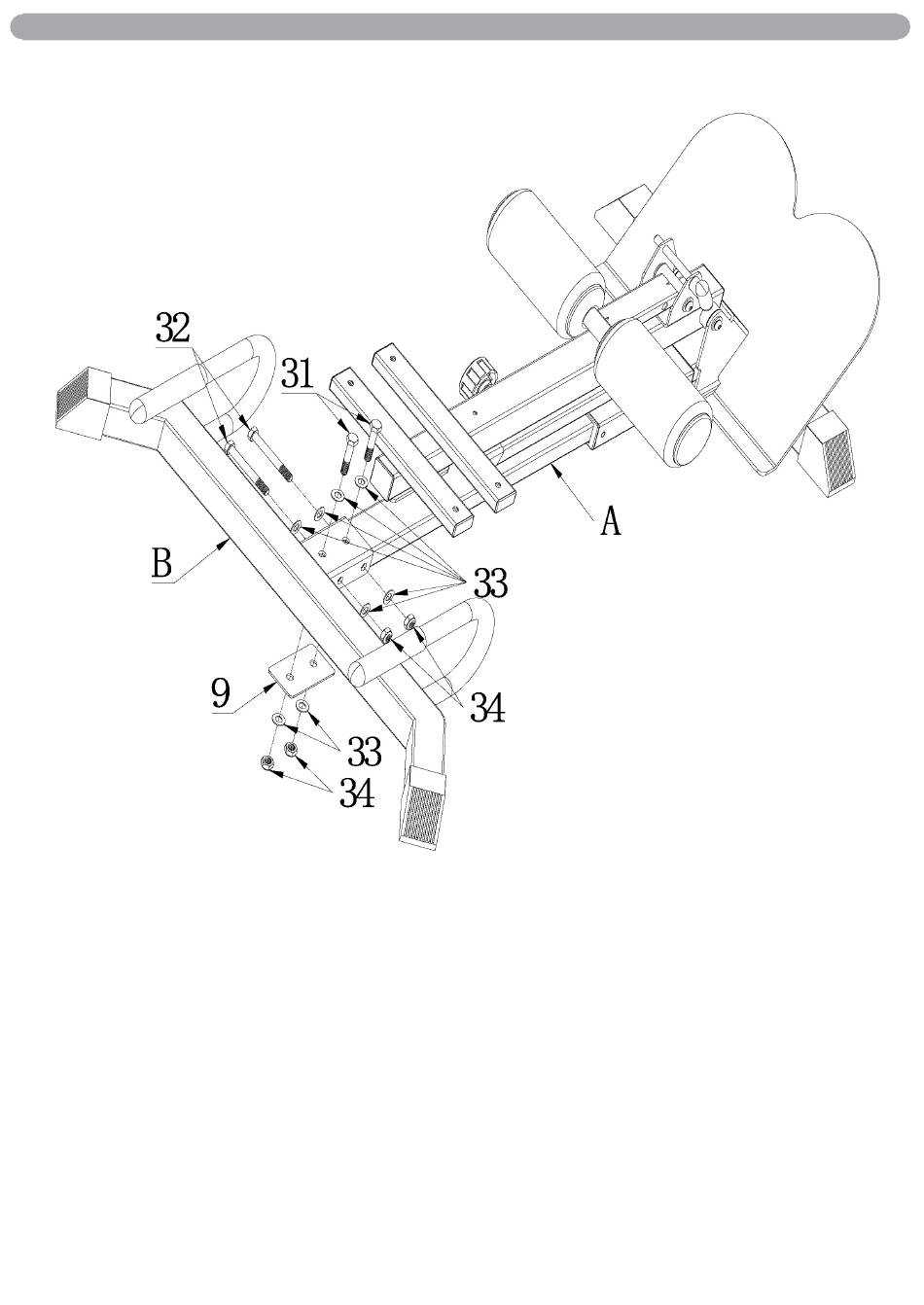

Step 1:
Lock the pre-assembled part B into the pre-assembled part A using:
2 pcs Outer hexagon screws M10x80 (No. 32)
4 pcs Flat washers Φ10 (No. 33)
2 pcs Locking nuts M10 (No. 34)
Step 2:
Lock the reinforcing plate (No. 9) into the pre-assembled part A+B using:
2 pcs Outer hexagon screws M10x50 (No. 31)
4 pcs Flat washers Φ10 (No. 33)
2 pcs Locking nuts M10 (No. 34)
Assembling steps
8
