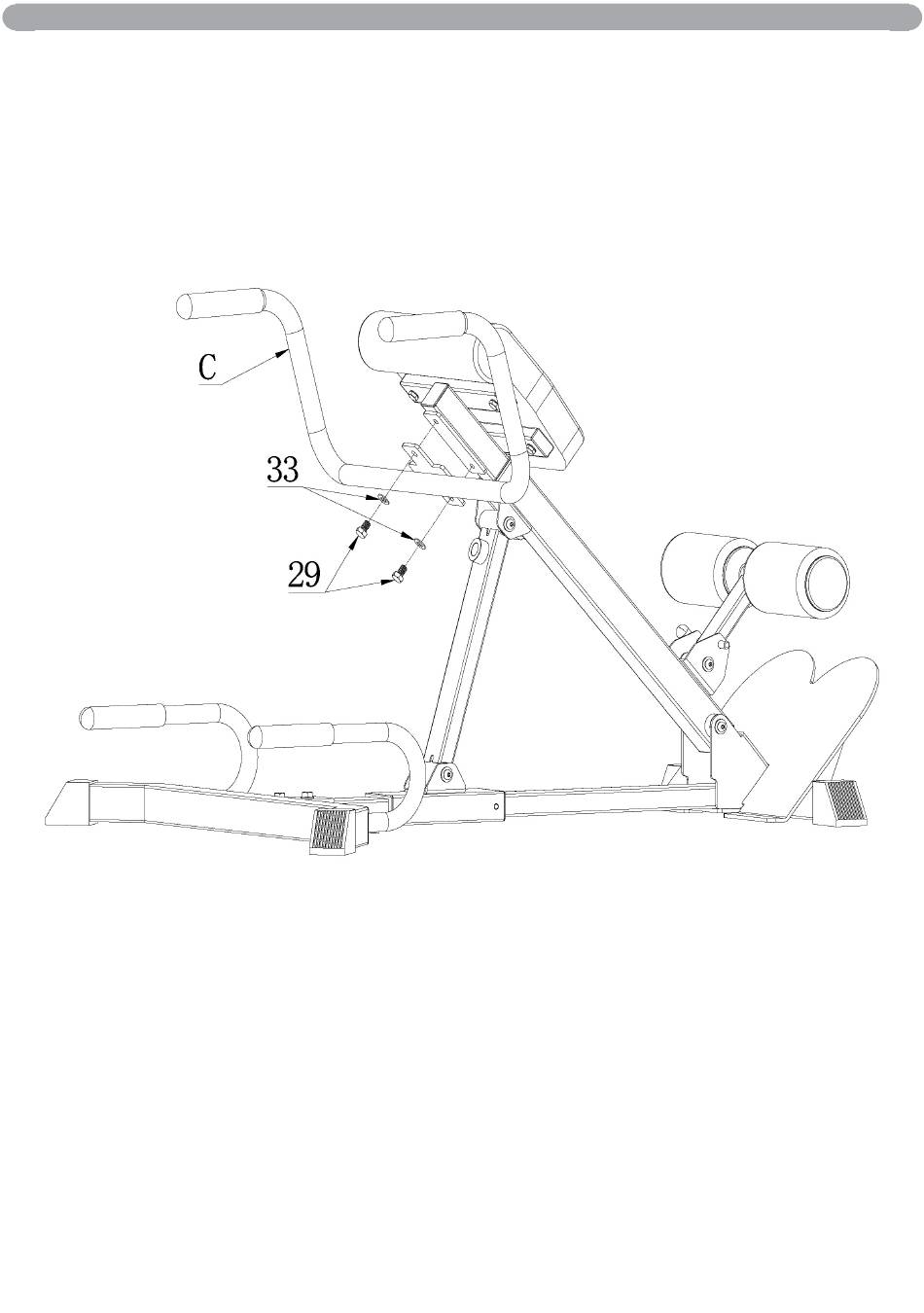

Step 6:
Lock the pre-assembled part C into the pre-assembled part A using:
•
2 pcs Outer hexagon screws M10x20 (No. 29)
•
2 pcs Flat washers Φ10 (No. 33)
Assembling steps
10
