UNIS Star Crusaders 2 Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

IMPORTANT
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Star Crusaders 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for UNIS Star Crusaders 2

Summary of Contents for UNIS Star Crusaders 2

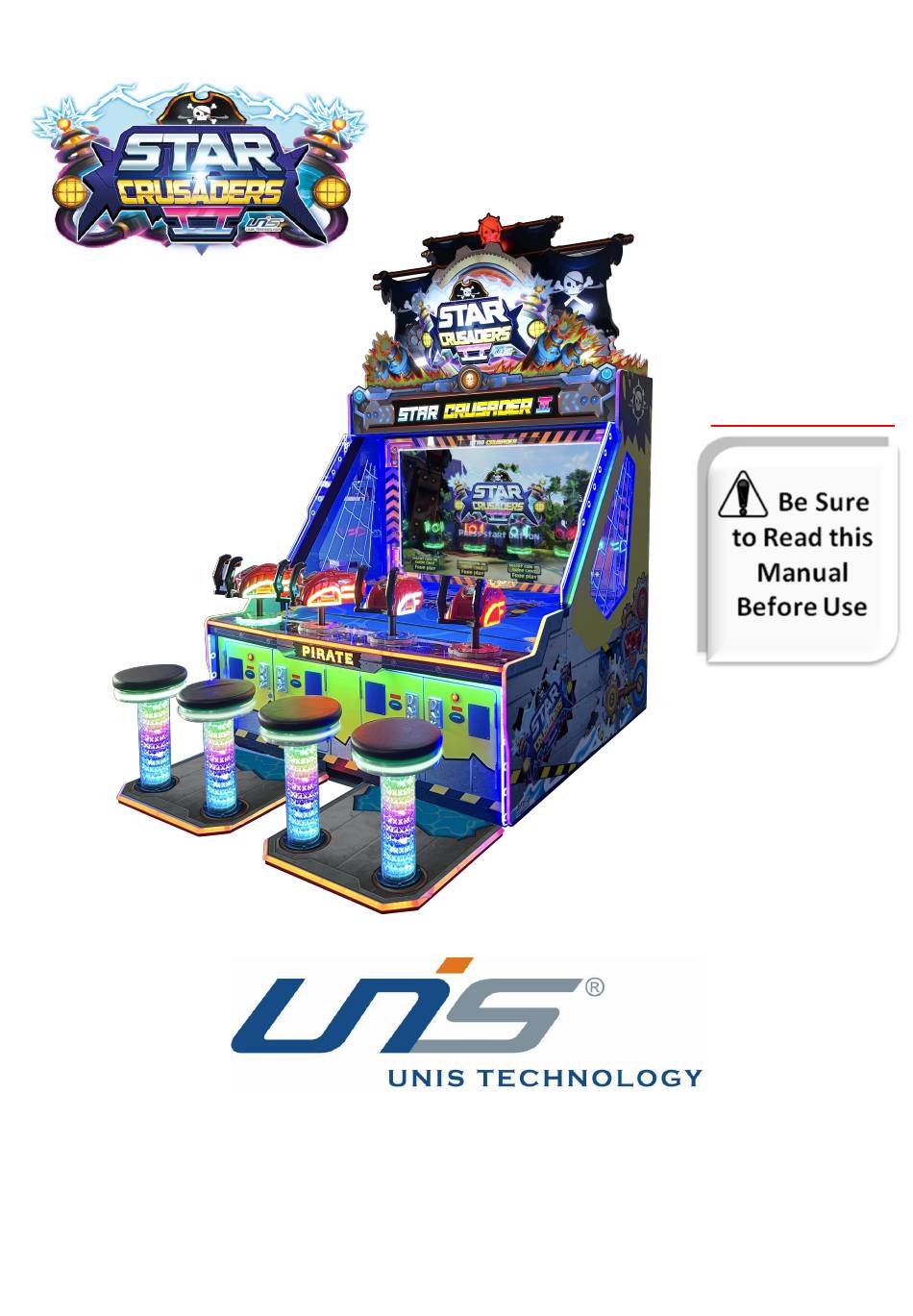

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Star Crusaders 2 Prototype Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Star Crusaders 2 Prototype Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ...................... 14 6.

  • Page 4: Important Safety Instructions

    Star Crusaders 2 Prototype Manual Thank you for purchasing Star Crusaders 2. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Star Crusaders 2 Prototype Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors.

  • Page 6: Specifications

    Star Crusaders 2 Prototype Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz (It is subject to the nameplate on the back of the machine.) Min. Power consumption: 550W Max. Power consumption: 650W Dimension: H108.74×W66.29×D88.81 in H2762× W1700 ×D2256 mm Weight：Approximately 956.80 lb/434kg...

  • Page 7: Contents Of The Accessory Kit

    Star Crusaders 2 Prototype Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Code No. Name/SPEC Picture 1 2.53.00171002 171A key 2 2.53.00172002 171B key 3 201.04.020003 Cross recessed hexagon bolt set M6×20 Hexagon flat head screw 4 201.01.108005...

  • Page 8: Part Name

    Star Crusaders 2 Prototype Manual 3. PART NAME Key Components Marquee Monitor Seat Control panel Coin mechanism Seat platform 07/09/2022...

  • Page 9: Set Up & Installation

    Star Crusaders 2 Prototype Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 10 Star Crusaders 2 Prototype Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 500 mm Service area Play area NOTICE Your unit must be leveled to operate properly.
  • Page 11 Star Crusaders 2 Prototype Manual 4.4 Machine Installation Step 1 Remove all the screws as shown below. Remove Seat assembly. Seat assembly Screws 07/09/2022...
  • Page 12 Star Crusaders 2 Prototype Manual Step 2 Install L&R side decal to the top of the cabinet. Utilize screws to secure. Hexagon flat Name head screw Spec. M4×8 Name R side decal Name L side decal Step 3 Place LOGO marquee to the top of the cabinet. Utilize screws to secure. Connect the connector.
  • Page 13 Star Crusaders 2 Prototype Manual Step 4 Install POP board to the back of the LOGO marquee. Utilize screws to secure. POP board Name POP board Cross recessed Name hexagon bolt set Spec. M6×20 Step 5 Align the Control panel with the cabinet. Connect the connectors.
  • Page 14 Star Crusaders 2 Prototype Manual Step 6 Open the L&R front door. Utilize screws to secure. Cross recessed Name hexagon bolt set Spec. M8×45 Step 7 Align the Seat assembly with the cabinet. Connect the connectors. Utilize screws to secure.

  • Page 15: How To Play

    Star Crusaders 2 Prototype Manual 4.5 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader. All warranties are void if not properly installed resulting in logic board damage.

  • Page 16: Game Option

    Star Crusaders 2 Prototype Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Press Settings button to enter the setting menu. Settings Test Reset 6.2 Setting menu 6.2.1 Main menu Options...
  • Page 17 Star Crusaders 2 Prototype Manual Options Status Description Game Time 0-600(s) Continue Time (s) 0-60 Coins/Insert Coins/Tap Pay Mode Card/Card 1P Gun Calibration 2P Gun Calibration Refer to 6.2.2.1 3P Gun Calibration 4P Gun Calibration Gun shock adjustment. Shock Adjustment Refer to 6.2.2.2...
  • Page 18 Star Crusaders 2 Prototype Manual 6.2.3 I/O Output Test Options Status Options Status 1P Out Tickets ON/OFF Out of Ticket Light 1 ON/OFF 2P Out Tickets ON/OFF Out of Ticket Light 2 ON/OFF 3P Out Tickets ON/OFF 1P Ticket Counter...
  • Page 19 Star Crusaders 2 Prototype Manual 6.2.5 Bookkeeping Player Coins In Tickets Out Back 6.2.6 Daily Record Date Week Run Time Coins In Tickets Out Prev Page Next Page Back 6.2.7 Game Reset 6.2.8 Time Setting Year Options Month Factory Restore...

  • Page 20: Troubleshooting

    Star Crusaders 2 Prototype Manual 7. TROUBLESHOOTING 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service.
  • Page 21 Star Crusaders 2 Prototype Manual If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action The connection part of the IO Check and reconnect the loose board and PC is loose.
  • Page 22 Star Crusaders 2 Prototype Manual 7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove the recovery stick from the machine. (Note: This process may take up to 60 minutes) Insert the recovery stick into the port at the back of the computer.

  • Page 23: Maintenance & Inspection

    Star Crusaders 2 Prototype Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.

  • Page 24: Wiring Diagram

    Star Crusaders 2 Prototype Manual 9. WIRING DIAGRAM 07/09/2022...
  • Page 25 Star Crusaders 2 Prototype Manual 07/09/2022...
  • Page 26 Star Crusaders 2 Prototype Manual 07/09/2022...
