micnode2 – Hardware User Guide
Microphone
The handheld push-to-talk microphone is available with the handheld microphone station models. This
microphone is attached to the microphone station by a magnetic plate. The Talk/Start button is directly on the
microphone.
Magnetic Microphone Docking Plate
The micnode2 microphone station uses a magnetic docking plate to hold the hand-held microphone. Just place the back
of the microphone up against the plate and let it go!

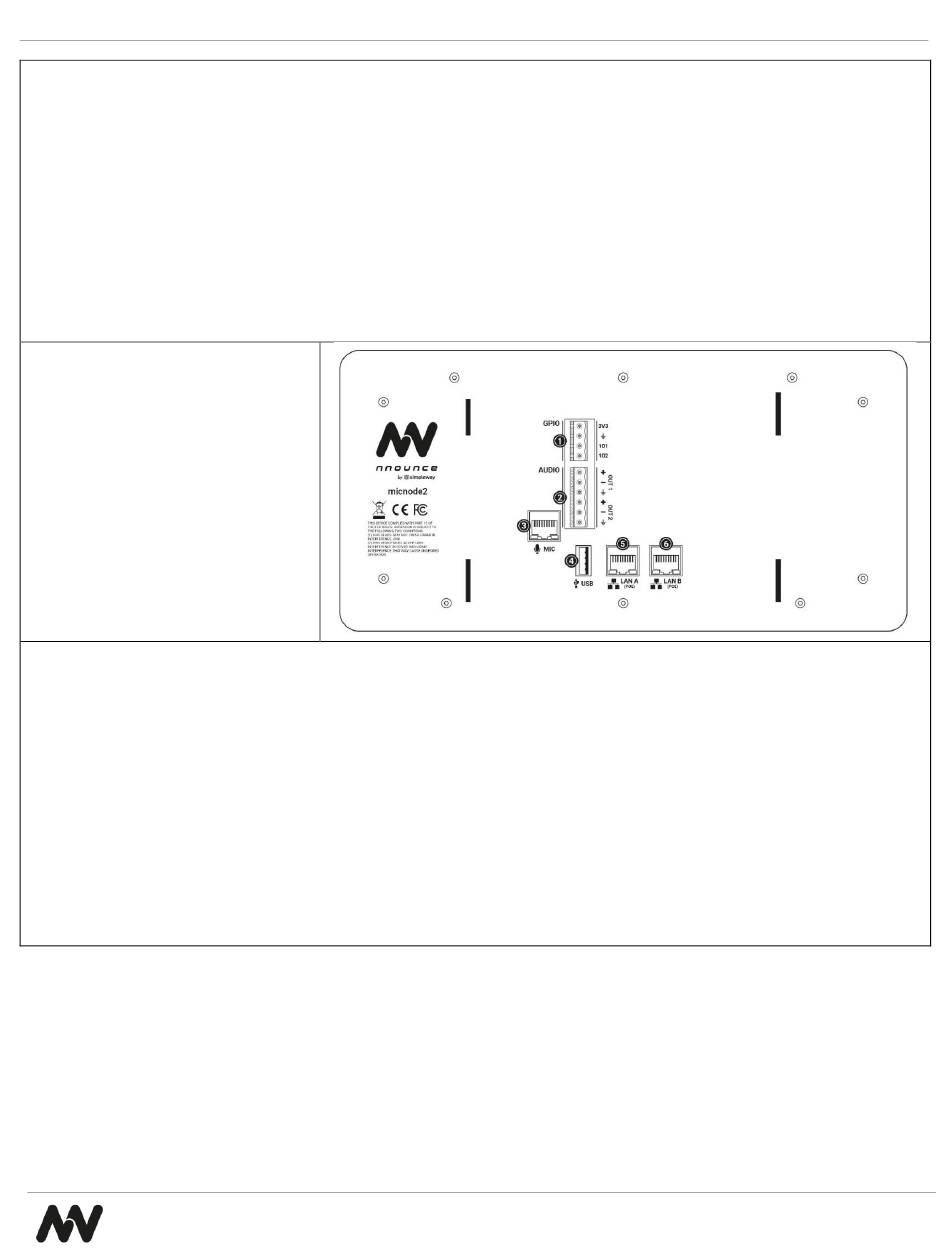

B. Rear panel
Protected GPIO
1.
Balanced audio output
2.
Rear Aux microphone
3.
station input
USB
4.
LAN A, PoE
5.
LAN B, PoE
6.
IMPORTANT: USB port serves only
for recovery purposes.
Power
The LAN cables connect the microphone station to the network. This enables audio and data exchange as well
as receiving power from the LAN network via IEEE 802.3af compliant power sourcing equipment (PSE), also
known as Power-over-Ethernet (PoE).
Inputs and outputs
On the rear panel of the micnode2 microphone station, it is possible to connect a variety of auxiliary audio I/O
and GPIO (General Purpose Input Output). Different devices or accessories by can be connected, e.g. a secondary
microphone or an MP3 audio source can be added.
