micnode2 – Hardware User Guide
NOTE: An existing default configuration is not overwritten.
o Advanced – manual design and steam configuration. Streams Net Tx and Net Rx channel numbering
needs to be correct according to conventions applied. Default design is applied when no other design
is created.
•
Unit Id – number your device, it is important to assign a unique number, we recommend ascending
numbering of your microphone stations.
IMPORTANT: The number is further used for stream configuration.
•
Show Debug – set level of debug mode.
NOTE: Connection Mode will be selected based on Q-SYS version. In older versions TCP socket needs to be manually
selected. Web-Socket with encryption is supported since Q-SYS version 9.8.

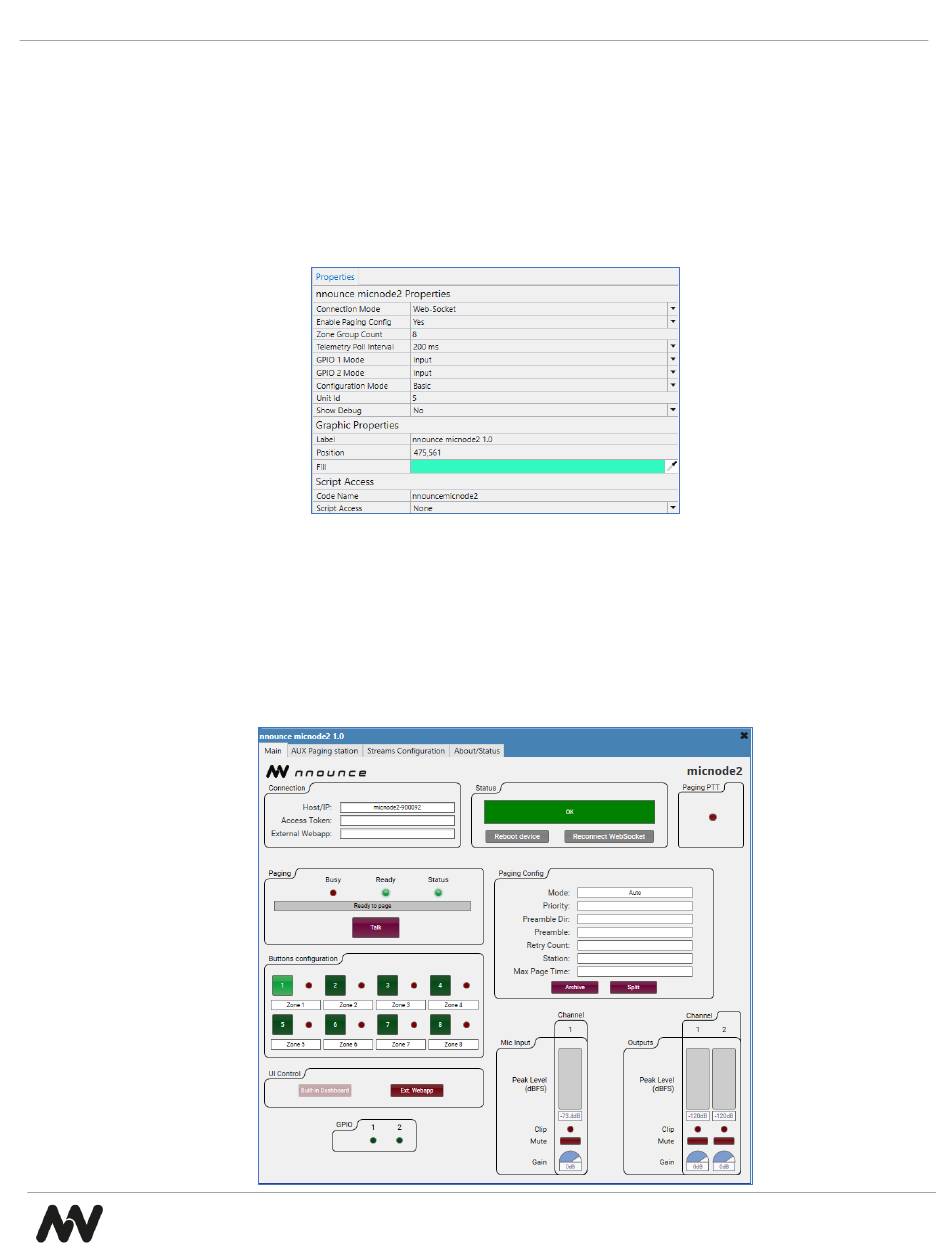

6. Create your design in Q-SYS or add the micnode2 to your existing audio configuration. Make sure your design is
disconnected.
7. Save to core & Run, after that open the micnode2 plugin detail and set Host/IP of the micnode2 device.
NOTE: For secured Web-Socket connection it is required to use domain name of the device.
IMPORTANT: Use the host as defined in the Connect the Device chapter above – micnode2 dash and the last six
numbers of the station's MAC address. Example:
TM
nnounce by Simpleway
micnode2-900078
