micnode2 – Hardware User Guide
Q-SYS ECOSYSTEM INTEGRATION
In the previous chapter you connected your micnode2 microphone station to the network via a standard ethernet
cable. To add your new device to the Q-SYS audio network, it should consist of:
•
Q-SYS Core and further Q-SYS peripherals,
•
Windows-based computer for Q-SYS designer network setup, not required for runtime operation,
•
Gigabit Ethernet Switch with PoE ports.

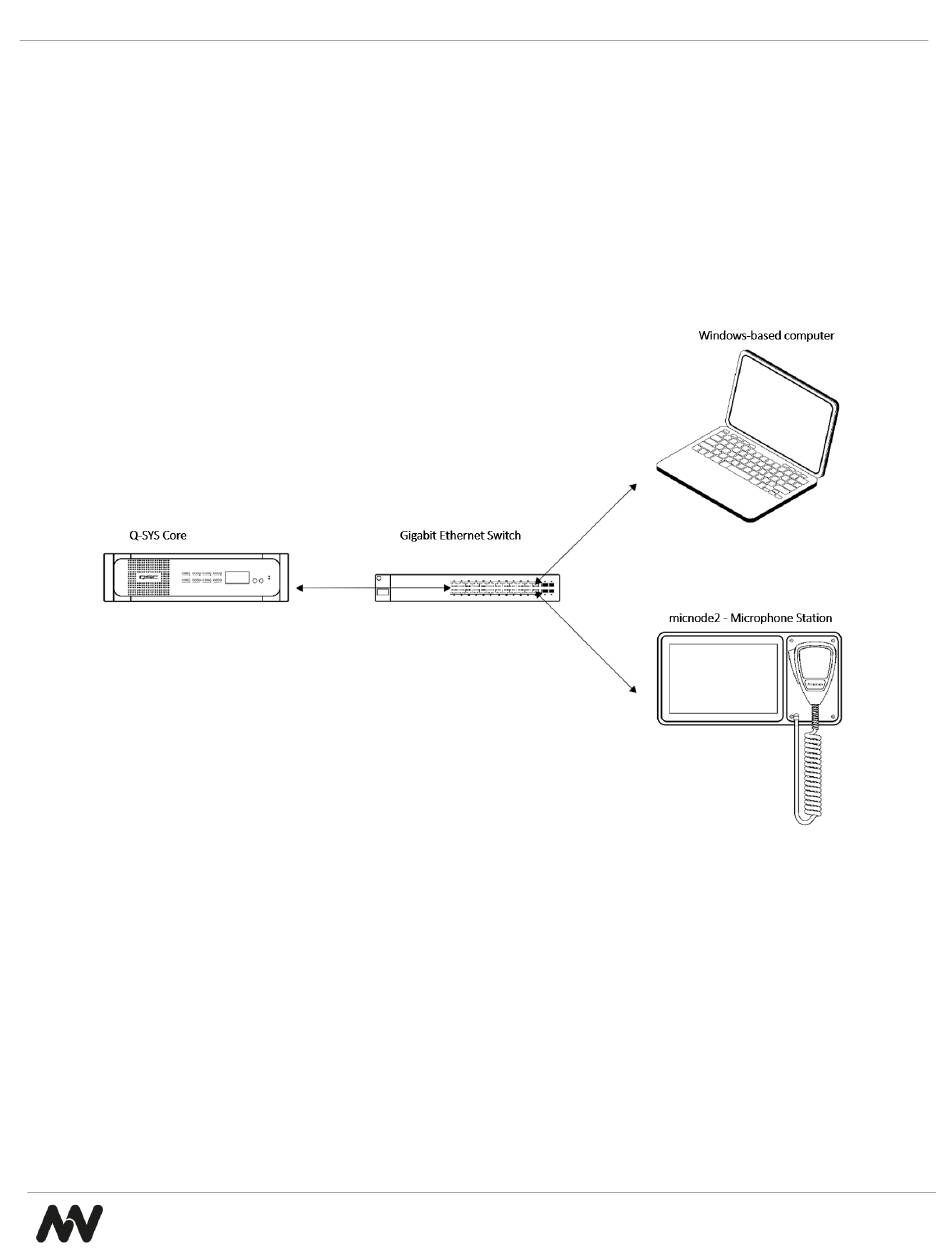

Network overview:

NOTE: Q-SYS designer version 9.9.0 pictures used in this manual are for illustration purposes only.
To make your microphone station operable within the Q-SYS ecosystem, follow the steps which are described in more
detail in the chapters below:
1. Download Q-SYS plugin for micnode2,
2. Configure the plugin in Q-SYS designer,
3. Set up streams,
4. Configuration of user interface:
a. Using the built-in paging dashboard or
b. Using an external application webpage (e.g. Q-SYS UCI).
