micnode2 – Hardware User Guide

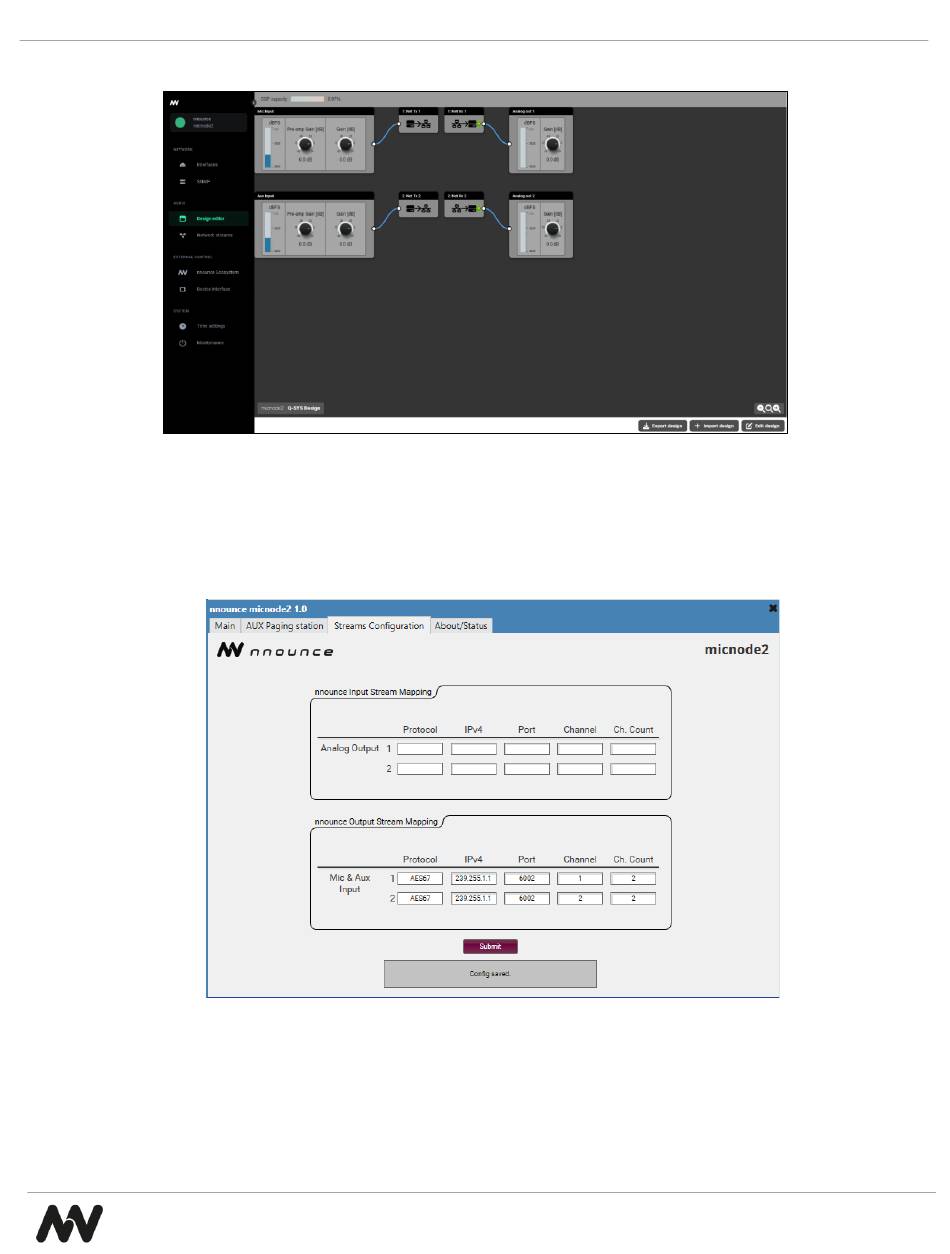

Default
DSP design:
Option: Advanced Mode
The Advanced mode lets you set up manually your micnode2 device's protocols, IP addresses, ports etc. for your streams.
1. Open the Streams Configuration section of your micnode2 plugin.
IMPORTANT: No values are auto filled in.
2. Map your stream/s:
a. Protocol – stream protocol,
b. IP address – fill in the address depending on multicast or unicast stream,
c. Port – stream port number,
d. Channel – define the particular channel of the stream,
e. Ch. Count – sets the total number of channels of the stream.
IMPORTANT: micnode2 stream configuration needs to correspond to receiver and/or transmitter configuration in
your Q-SYS designer.
