3. Confirm your configuration with the Submit button.
NOTE: The field below the Submit button will show the progress and validation messages in case of any connection
errors
The DSP designer in the nnounce configuration UI takes over the design from Q-SYS only unless no custom design is
created by the user. The Network Streams section shows the streams as configured in the Q-SYS designer.
•
TX stream – transmits audio to other devices, output.
•
RX stream – receives audio from other devices, input.

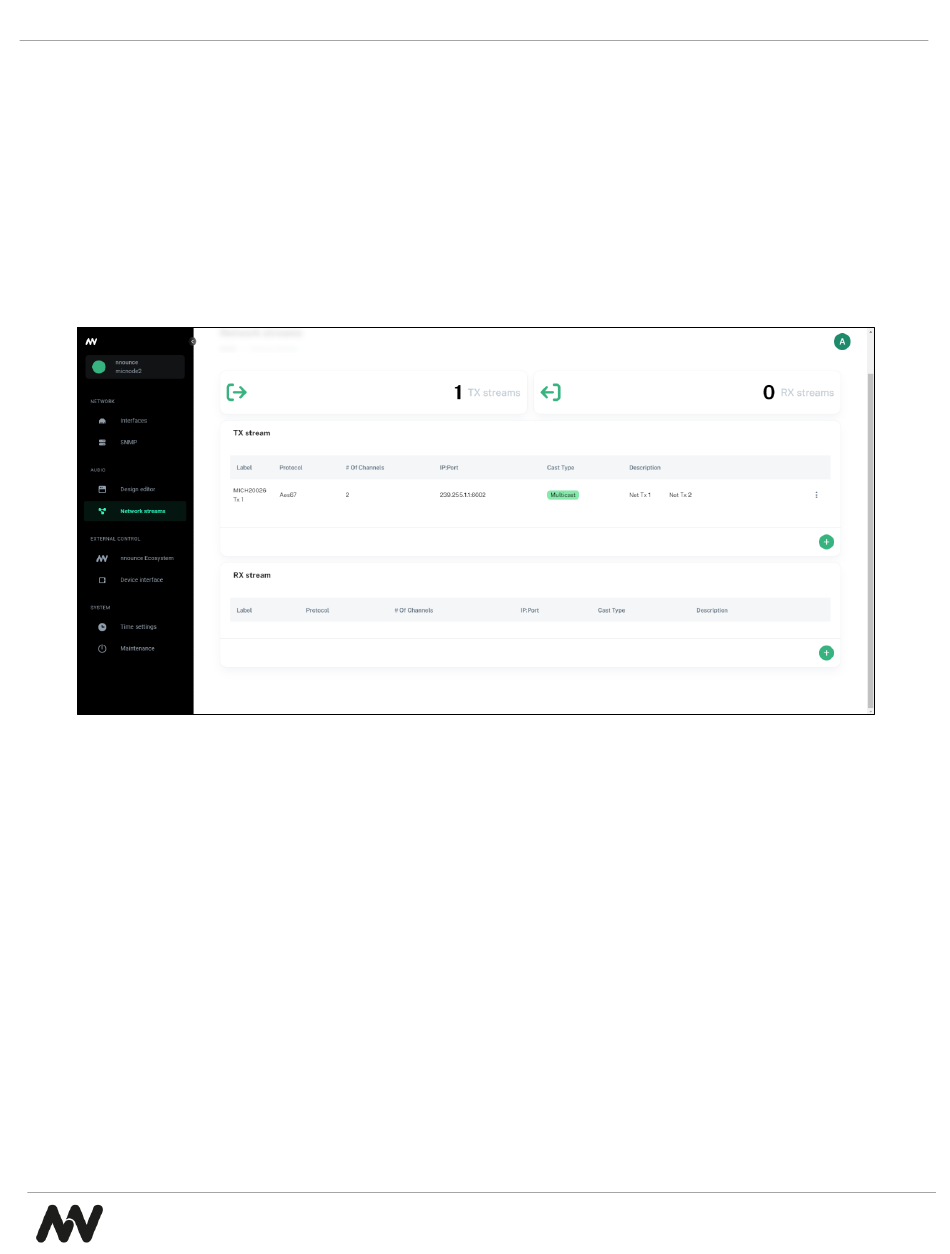

Example of network stream configuration in nnounce configuration UI:

User Interfaces

The micnode2 device can be operated with Q-SYS by the user in the following ways:
A. Using the built-in paging dashboard,
B. Using an external application webpage (e.g. Q-SYS UCI).
NOTE: The user interface mode can be configured in the Q-SYS plugin or the administrative interface – nnounce
configuration UI of the microphone station.
Using Built-in Paging Dashboard
To use the built-in paging dashboard of the micnode2 microphone station, configure zones in the Q-SYS designer
micnode2 plugin.
1. Go to micnode2 plugin Properties. Make sure the design is disconnected.
2. Set the Enable Paging config value to "Yes".
3. Define the desired number of Zone Group Count:
