micnode2 – Hardware User Guide

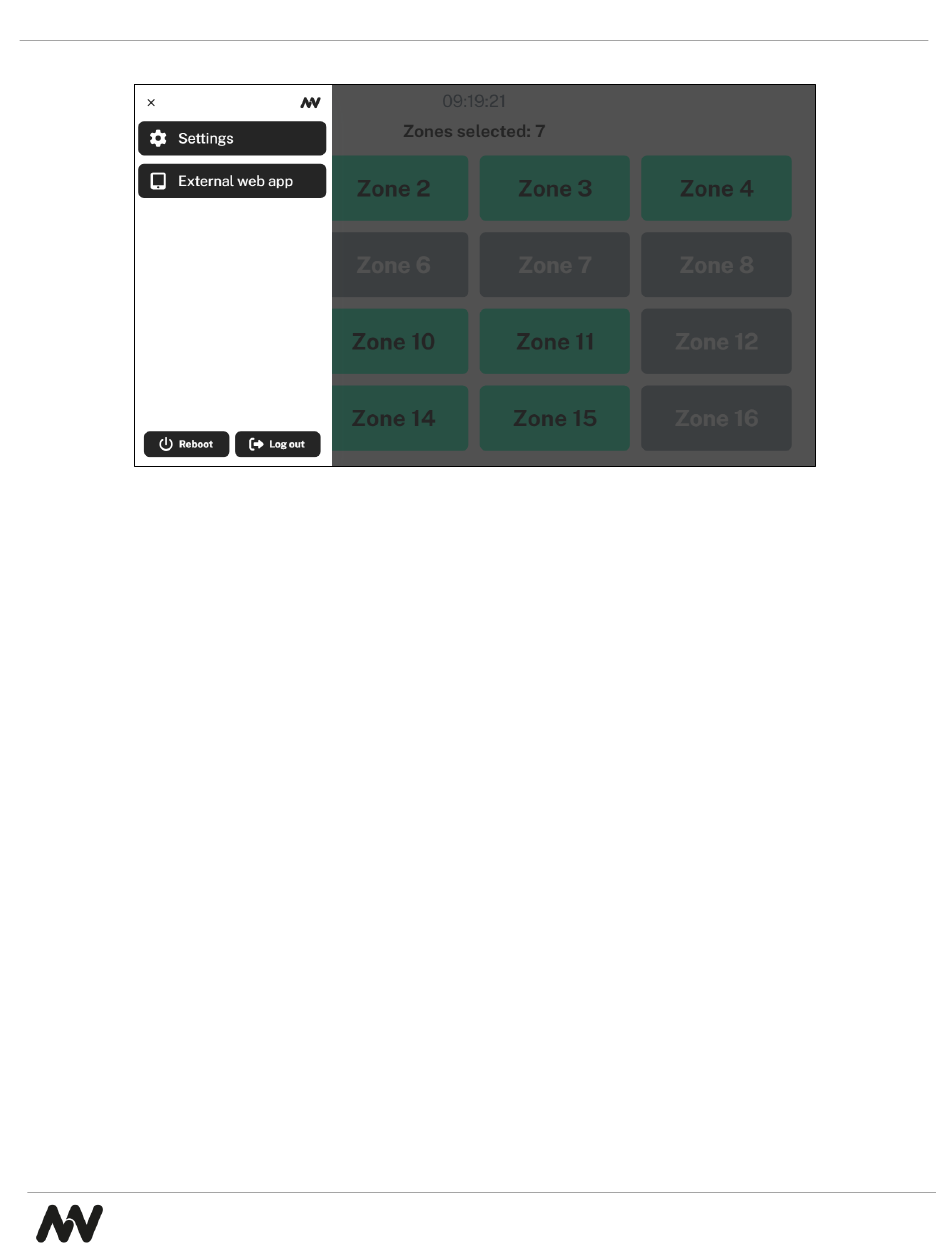

Example of micnode2 microphone station Menu configuration:
IMPORTANT: To change the UI configuration, click on the button Change to built-in dashboard.
Recovery from USB
Micnode2 device recovery from USB provided by nnounce support team.
Note: Not all USB flash discs versions are compatible, use version 3.1 or older.
1. Insert USB stick to the USB port on the rear panel.
2. Power off and then power on the device by unplugging and again reconnecting the LAN cable on the rear panel.
3. Progress and result are shown on device display.
4. REMOVE USB stick.
5. Finish the process by once more putting power supply (as in step 2).

Firmware Update

Firmware update of your micnode2 device is available in the Maintenance section.
The installation file is provided by the nnounce support team.
NOTE: The file is typically a .swu file.
