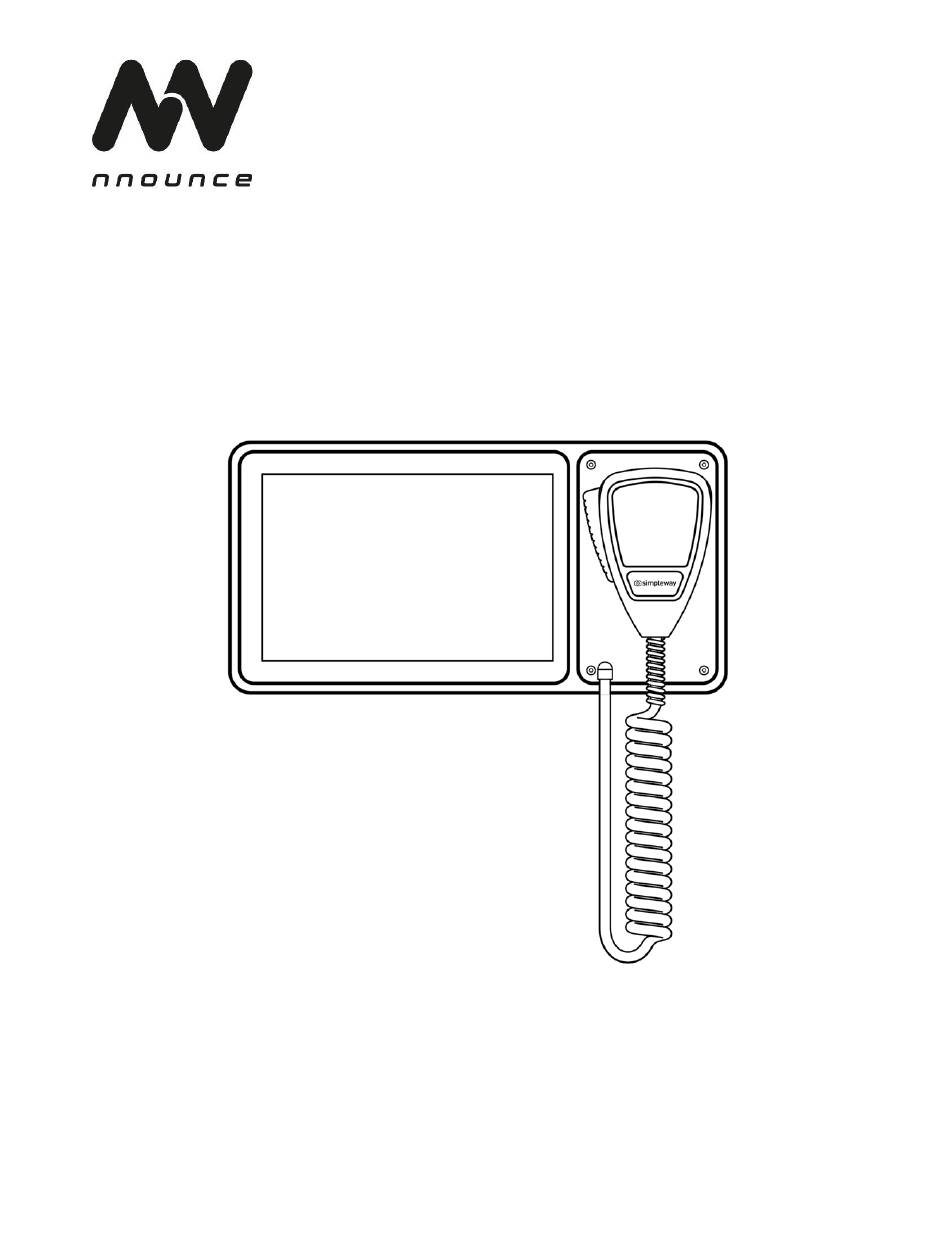

- Page 1 ARDWARE SER GUIDE micnode2 – Microphone Station ©Nnounce powered by Simpleway Keep this manual for future reference...
-
Page 2: Important Safety Instructions
A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. nnounce by Simpleway... -
Page 3: Optional Accessories
2. Handheld microphone 3. Wall-mounting station holder 4. Six screws for attaching the microphone station to the holder 5. Two terminal blocks for audio and contact cables Optional accessories 1. Desktop stand 2. micnode aux extension unit nnounce by Simpleway... - Page 4 The 8-inch touch display shows the user interface operating the microphone station. For more information, see the chapter on User Interfaces setup. Use your fingers to touch the screen. CAUTION: Don’t use any sharp objects on the screen. Clean the screen with static-free cleaning cloths only. nnounce by Simpleway...
- Page 5 On the rear panel of the micnode2 microphone station, it is possible to connect a variety of auxiliary audio I/O and GPIO (General Purpose Input Output). Different devices or accessories by can be connected, e.g. a secondary microphone or an MP3 audio source can be added. nnounce by Simpleway...
- Page 6 IMPORTANT: Instead of 900078 enter the last 6 digits of the MAC address which you can find on you micnode2 device. • NOTE: The device is using mDNS. 4. Your web-browser shows the login page of your micnode2 device. nnounce by Simpleway...
-
Page 7: Interface Settings
5. Enter credentials into the nnounce configuration user interface: IMPORTANT: Default credentials admin/simpleway, default PIN code is 23646 Now you are able to access the configuration settings of the device and continue with interface configuration. Interface Settings After login into the nnounce configuration UI, establish a connection between your new micnode2 station and your network. - Page 8 – Hardware User Guide A. Navigate in the left- hand Menu to Interfaces section. You can preconfigure two LANs A and B, see rear panel ports. B. Configure the interface in the Manual mode or Auto mode (DHCP). nnounce by Simpleway...
- Page 9 LAN adapter. • server and Search domains are assigned by the DHCP server. Click on Save Changes button to confirm your configuration. IMPORTANT: The option OFF disables the port. nnounce by Simpleway...
-
Page 10: Network Overview
1. Download Q-SYS plugin for micnode2, 2. Configure the plugin in Q-SYS designer, 3. Set up streams, 4. Configuration of user interface: a. Using the built-in paging dashboard or b. Using an external application webpage (e.g. Q-SYS UCI). nnounce by Simpleway... - Page 11 IMPORTANT: Configuration from the Q-SYS designer is auto populated to the nnounce configuration UI and thus your micnode 2 device. 1. The nnounce micnode2 plugin for Q-SYS designer can be obtained from: a. Q-SYS marketplace, b. nnounce webpage in the Download center.
- Page 12 NOTE: For secured Web-Socket connection it is required to use domain name of the device. IMPORTANT: Use the host as defined in the Connect the Device chapter above – micnode2 dash and the last six numbers of the station’s MAC address. Example: micnode2-900078 nnounce by Simpleway...
-
Page 13: Stream Configuration
IMPORTANT: Streams need to have Script access set to the value Script. In older Q-SYS designer versions Script access is not visible in Stream properties. Rename the stream in a disconnected design. Only after that the stream is visible in the micnode2 plugin. nnounce by Simpleway... - Page 14 DSP designer. Manual changes by the user are overwritten with the default design after reconnecting to the WebSocket. The Network Streams section shows the streams as configured in the Q-SYS Designer. IMPORTANT: Do not make any changes in the nnounce configuration UI - DSP designer and Network stream - to avoid malfunction. nnounce by Simpleway...
- Page 15 Channel – define the particular channel of the stream, e. Ch. Count – sets the total number of channels of the stream. IMPORTANT: micnode2 stream configuration needs to correspond to receiver and/or transmitter configuration in your Q-SYS designer. nnounce by Simpleway...
-
Page 16: User Interfaces
To use the built-in paging dashboard of the micnode2 microphone station, configure zones in the Q-SYS designer micnode2 plugin. 1. Go to micnode2 plugin Properties. Make sure the design is disconnected. 2. Set the Enable Paging config value to “Yes”. 3. Define the desired number of Zone Group Count: nnounce by Simpleway... - Page 17 Once the network settings and configuration including zones are set in Q-SYS designer, Live paging can be triggered with the PTT button. IMPORTANT: Which mode is used depends on Paging configuration of your micnode2 device in Q-SYS designer. nnounce by Simpleway...
- Page 18 Click in right upper corner on Open UCI in New Window – new window opens, b. Copy the UCI URL. 3. Paste the URL back Q-SYS designer in micnode2 configuration or in nnounce configuration UI in section Device interface, see more in chapter Extern application configuration below. nnounce by Simpleway...
- Page 19 2. Navigate in the left-hand Menu to the Device interfaces section. 3. Add the URL of the paging web application and define the Menu label which you will see in the micnode2 menu. 5. Save your changes. nnounce by Simpleway...
-
Page 20: Firmware Update
5. Finish the process by once more putting power supply (as in step 2). Firmware Update Firmware update of your micnode2 device is available in the Maintenance section. The installation file is provided by the nnounce support team. NOTE: The file is typically a .swu file. nnounce by Simpleway... - Page 21 – Hardware User Guide A. Navigate in the left-hand menu to the Maintenance section. Click on the button Update New in the Firmware update part. B. Drag and drop or select the file provided by the nnounce support team. nnounce by Simpleway...
- Page 22 – Hardware User Guide C. Start to install the firmware update. D. Wait until the installation process is finished. E. After successful completion login screen is displayed. nnounce by Simpleway...
- Page 23 1. Prepare the cutout and cables for the microphone station. 2. Use four screws to attach the mounting bracket to the wall and then put all the cables through the mounting bracket opening. Attach the microphone station with two screws to the mounting bracket. nnounce by Simpleway...
- Page 24 B. Open the chassis by moving the microphone cable with light side-to-side movements and remove the docking plate. C. Unplug the connected microphone by pressing the beak on the top of the connector and pulling it out of the socket. nnounce by Simpleway...
- Page 25 • Reattach the 4 screws on the device. The micnode2 device is ready to use with the new microphone. nnounce by Simpleway...
-
Page 26: Technical Specifications
1 630 g without mounting kit Wall mount Accessories Handheld microphone Desk Stand (optional) Micnode AUX Station (optional) CONTACT Simpleway North America Headquarters: Simpleway Europe a.s. Address: Address: 1621 Central Avenue Na Okraji 335/42 Cheyenne, Wyoming Prague 6 82001 162 00 Czech Republic Tel.: +1(307)248-4033...
