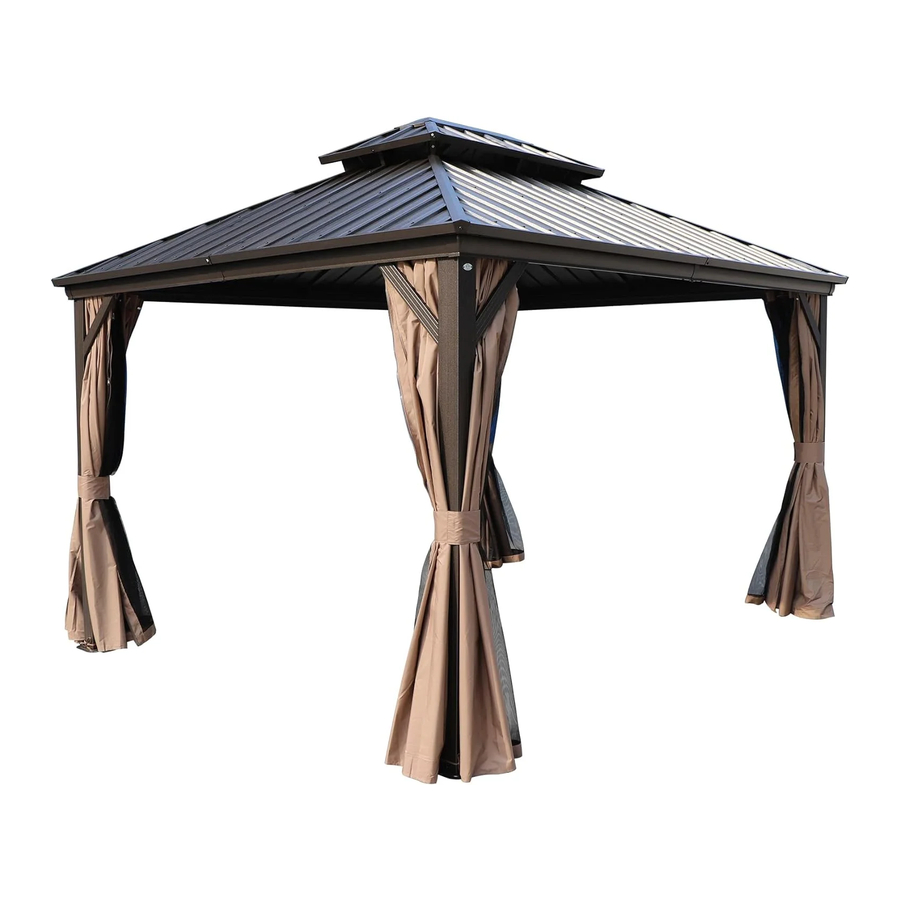

Kozyard Caesar Manual

Also See for Caesar:

Assembly manual (26 pages)

Assembly manual (27 pages)

Table of Contents

Contents

1 Set up Poles
2 Connect the Beams
3 Set up Poles and Beams
4 Connect Solidifying Bars wtih Beams and Poles
5 Cover the connections
6 Install Hooks
7 Set up Roof Frame
8 Set up Roof Bar
9 Connect Outside Roof Connector
10 Snap Brackets
11 Assemble Roof Panels
12 Connect Solidifying Bars
13 Overall roof assembly
14 Affix roof panels
15 Cover edge of roof
16 Assemble Net Frame
17 Assemble Net Sidewall
18 Care
19 Warnings and Cautions
20 Documents / Resources
- 20.1 References
- 20.2 Download manual

Kozyard Caesar Manual

Set up Poles

Parts Required:

Set up Poles (Part A5) with Stand Plates (Part L5) using screws 1# as shown in the diagram.

Reference for anchoring gazebo:

If the ground is concrete and its depth is over 3 inches, you can purchase 3/8" diameter x 3" length sleeve anchors.
Only anchor after finishing all the assembly.

After assembly, we strongly recommend anchoring the gazebo to your deck or concrete as shown above. Damage resulting from wind or improper anchoring is not covered under warranty.

Connect the Beams

Parts Required

Connect Beams (Part E5 and D5) into one beam using Union Bar (Part F5) with screws 1# as shown in the diagram.

Set up Poles and Beams

Parts Required:

Set up Poles and Beams
Use screws 3#L and 3# first, then use screw 2# to connect Poles and Beams together as shown in diagram.

Connect Solidifying Bars wtih Beams and Poles

Parts Required:

Connect Solidifying Bars wtih Beams and Poles - Step 1

Affix the frame with Corner Solidifying Bars (Parts J5, J6) using screws 1# as shown in diagram.
Connect Solidifying Bars wtih Beams and Poles - Step 2

Cover the connections

Parts Required:

Cover the connections - Step 1

Cover the connections - Step 2

Finish Connecting Beams using Corner Covers (Part G5) and screws 9# as shown in the diagram.
Affix middle beams using Joint Cover (Part H5) and screws 9# as shown in diagram.

Install Hooks

Parts Required:

After finishing Hooks (Part 4#) into the tracks, then put Joint Cover (Part H1) to lock them.
Install Hooks

Set up Roof Frame

Parts Required:

Set up Roof Frame - Step 2

Connect the Inside Roof Connector (Part K2) with the Corner Roof Bar (Part M5) using screws 1#.

Attach Corner Roof Bar(Part M5) to main frame using screw 1# as shown in diagram.

Attach Finishing Bar (Part P) with Finish End (Part R) using screws 1# to Corner Roof Bar (Part M5) as shown in diagram.

Set up Roof Bar

Parts Required:

Upward View
Set up Roof Bar - Upward View
Set up Roof Bar - Step 1

Attach Roof Bar (Part N5) to Roof Connector (Part K) using screw 1# as shwon in the diagram.

Connect Roof Bar connector (Part R5) to Roof Bar (Part N5) using screw 1# as shwon in the diagram.

Attach Roof Bar (Part N5) to Beams using screw 1# as shwon in the diagram.

Connect Outside Roof Connector

Parts Required:

Upward View
Connect Outside Roof Connector - Upward View

Connect Outside Roof Connector (Part K12) to Inside Roof (Part K2) using screw 1# as shown in the diagram.

Snap Brackets

Parts Required:

Snap Brackets - Step 1
Snap Bracket (Part Z, Z1, Z2, Z3, Z4) to the roof panel edges as shown in the diagram.

Tips:
Snap Brackets - Step 2

Wearing protective gloves is recommended.
To prevent Z-Clips (plastic brackets) from sliding off prior to assembly, apply double-sided adhesive tape (Part H3) to the underside (bottom) edge of the roof panels where the brackets (Part Z, Z1, Z2, Z4 Z3, Z4) are supposed to attach.
You can use super glue (not included) to attach the brackets to the roof panel if the double-sided tape doesn't work for you.

Assemble Roof Panels

Parts Required:

Downward View
Assemble Roof Panels - Downward View

Push the Roof Panels (Part V1,V2 to upper roof as shown in the diagram.
Attach Finishing Bars (Part T) to upper roof with Finish End (Part R) using screws 1# as shown in the diagram.

Connect Solidifying Bars

Parts Required:

Connect Solidifying Bars
Attach Solidifying Bars ( Part U0) to roof bar or corner roof bar using Iron Angle (Part U3, U4) and screws 1# as shown in the diagram.

Overall roof assembly

Overall roof assembly - Step 1
Please place the panels on the frame and assemble them from the centerline (Part N5) to the left and right.

Tips: To facilitate the easy fastening of roof panels (Part B13), please use double-sided adhesive tape (Part H3) to affix Part S onto Panel (Part B13) in advance. This will prevent Part S from sliding down during assembly.
Overall roof assembly - Step 2

Affix roof panels

Using screws and Spacers (Part S)

Parts Required:

Affix roof panels using screws and Spacers (Part S)
Align all roof panels and screws LOOSELY (DO NOT TIGHTEN ANY SCREWS) until all the roof panels are aligned accordingly, THEN TIGHTEN all screws to secure the roof panels in place.

Cover edge of roof

Parts Required:

Cover edge of roof
Attach Finishing bars (Part R9, R10) to Roof bar and Corner Roof bar, then put Finshih End (Part R, R1) to cover them using screws 1# as shown in diagram.

Assemble Net Frame

Parts Required:

Upward View
Assemble Net Frame - Upward View

Assemble Net Frame
Attach Net Frames (Part P1,Q0) to Finishing Bars (Part P) using screws (1#, 11#) as shown in the diagram.

Pespective

Tip: The perspective drawing is for demonstrating how to assemble the final step that sets up the Net Frame (Parts P1) more effectively.

Assemble Net Sidewall

Parts Required:

Assemble Net Sidewall
Hang the Mosquito Net on the inner rails and the Solid Sidewalls on the outer rails as shown in the diagram.

Parts Required:

When closing the Mosquito Net, refer to the steps below to align it with the poles, as shown in the diagram.

Care

Clean the frame components and fabric with a mild soap solution, then rinse thoroughly. Avoid using bleach, acid, or any other solvents on either the fabric or frame components.
The roof, frame, bolts, and nuts come with a guarantee against defects in material and workmanship for one year from the date of purchase. However, the privacy curtain and mosquito netting are warranted for just 90 days. For a comprehensive warranty policy, please visit www.kozyard.com. Be aware that warranty terms can change without prior notification.
For the best performance and safety of your gazebo, inspect and tighten all bolts and fasteners regularly

Warnings and Cautions

Please read and follow this assembly and operation guide to reduce the risk of personal injury and damage to your gazebo.
Do not discard any of the packaging until you have checked that you have all the parts in place. The maximum weight capacity of this gazebo roof is 2000 pounds.
Sidewalls and nettings should be off or in the opened position and tied to poles when winds are over 30 MPH to avoid damage.
Some parts may have sharp edges or corners. To ensure your safety, follow basic safety precautions to reduce the risk of injury. Please note that this item contains small parts which could be swallowed by children. Keep it out of reach of children under 3 years old and pets during installation.

Two or more people are required for aseembly and disassembly.

Do not fully tighten screw prior to complete assembly.
