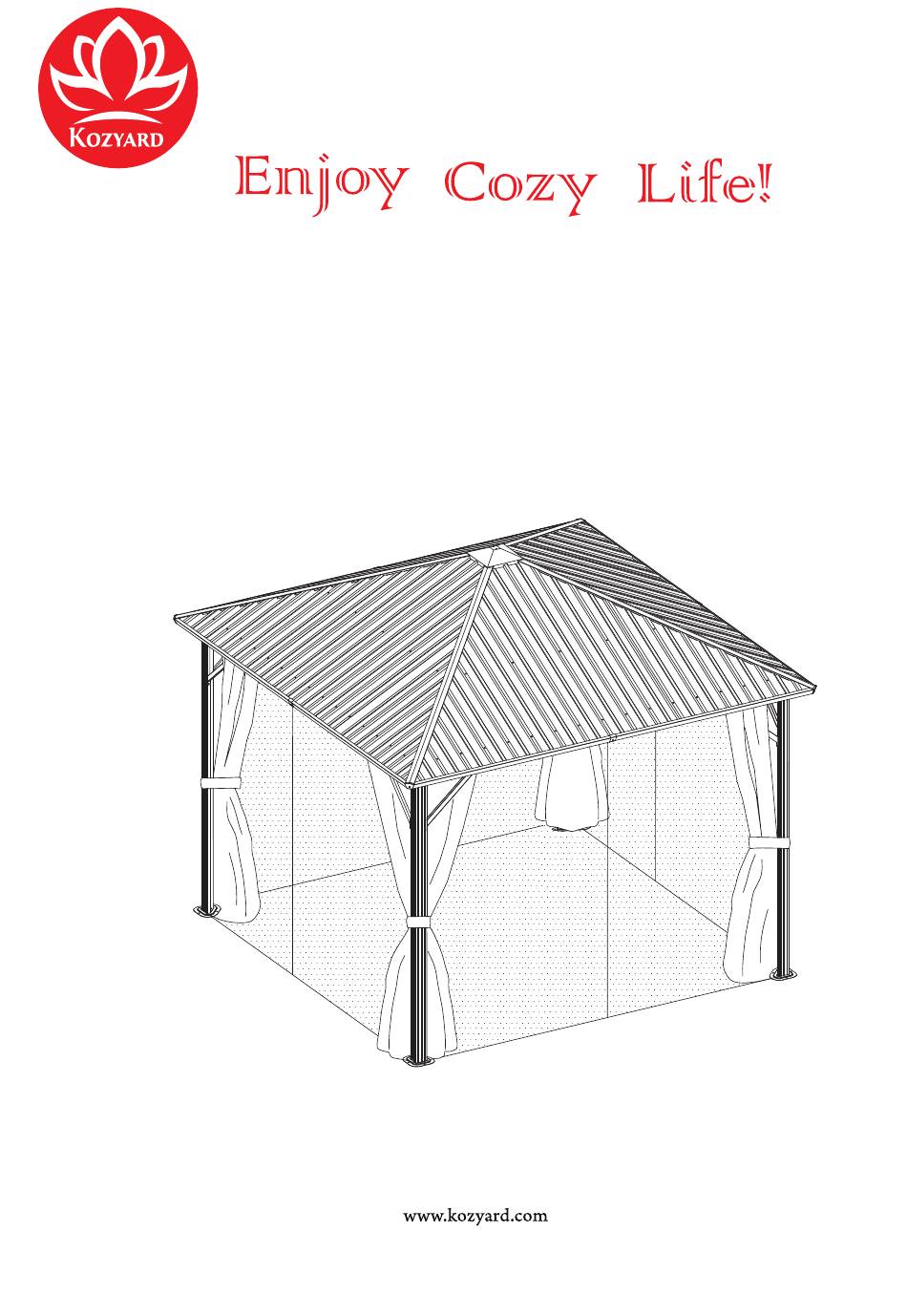

- Page 1 10’x10’ Rosana hardtop gazebo Assembly Manual Kozyard LLC Products © Copyright 2016 - 2019 Kozyard LLC. | All Rights Reserved.
- Page 2 1.Two or more people are required for assembly. 2.You will need one or more stepladders. 3. Wearing protective gloves is recommended. 4.You may need a safety hat. 5.Use the hex keys in the box. 6.Please use a Phillips screwdriver. 7.Do not fully tighten screws prior to complete assembly.
- Page 3 J1X4 KX96 C1X4 N1X1 P1X4 ITEM DESCRIPTION D1X4 Pole Beam Beam Corner Roof Bar Roof Bar Finishing Bar Finishing Bar Solidifying Bar Solidifying Bar Corner Solidifying Bar Corner Solidifying Bar E1X4 Base Hook Joint Cover Corner Cover Outside Roof Connector Inside Roof Connector Finishing End Finishing End...
- Page 4 Q1X4 Q2X4 Q3X4 Q4X4 Q5X4 S1X4 UX88 XX56 ITEM DESCRIPTION Panels Panels Panels X2X4 X1X4 AAX97+8 BBX16+2 Panels Panels Panels Solide Sidewall Mosquito Sidewall Spacer Allen Key/Wrench Joint Cover Metal Bracket TX4+1 OX56+4 IX24+2 RX24+2 Metal Bracket Metal Bracket Screws 97+8 Screws 16+2...
- Page 5 Step 1： Parts Required: Set up poles (Part A) with stand paletes (Part B) using screws BB as shown in diagram. Parts Required: Step 2： Put 6 Hooks to each slot of sidewall track (Part C and C1). Connect Part C and Part C1 into one beam using screws AA. page 3...
- Page 6 Step 3： Parts Required: Use screws AA to connect poles and beams together as shown in diagram. Finish connecting beams using corner covers Step 4： (Part M)and screws I as shown in diagram. Affix middle beams using joint cover (Part L&W) and screws I&BB as shown in diagram.
- Page 7 Step 5： Parts Required: Affix the frame with corner solidifying bars (Part J and J1) using screws AA as shown in diagram. Parts Required: Step 6： Connect the inside roof connector (Part N1) with the corner roof bar (Part D) using screws AA as shown in diagram.
- Page 8 Step 7： Parts Required: Attach roof bar (Part D1) to inside roof connector using screws AA as shown in diagram. Attach roof bar (Part D1) to main frame using screws AA as shown in diagram. Step 8： Parts Required: Connect outside roof connector (Part N) to inside roof connector (Part N1) using screws AA as shown in diagram.
- Page 9 Step 9： Parts Required: Affix solidifying bar (Part G and G1) to roof bar（Part D1）and corner roof bar (Part D) using screws (AA and T) as shown in diagram. page 7...
- Page 10 Step 10： Parts Required: Cover metal brackets (Part X, X1 and X2) to roof panels as shown in diagram. Overall roof assembly: Connect roof as above page 8...
- Page 11 Step 11： Parts Required: Affix roof panels using screws and spacer (Part U) as shown in diagram. page 9...
- Page 12 Step 12： Parts Required: Affix finishing bars (Part E & E1) by (Part P & P1) using screws AA to roof bar and corner roof bar as shown in diagram. page 10...
- Page 13 Step 13: Hang up solid sidewall as shown in diagram. Parts Required: Attention：Change hook: take out Part W and Part K into the slot. In the end check all screws are fixed tightly before using. page 11...
- Page 14 Kozyar © Copyright 2016 - 2019 Kozyard LLC. | All Rights Reserved.
