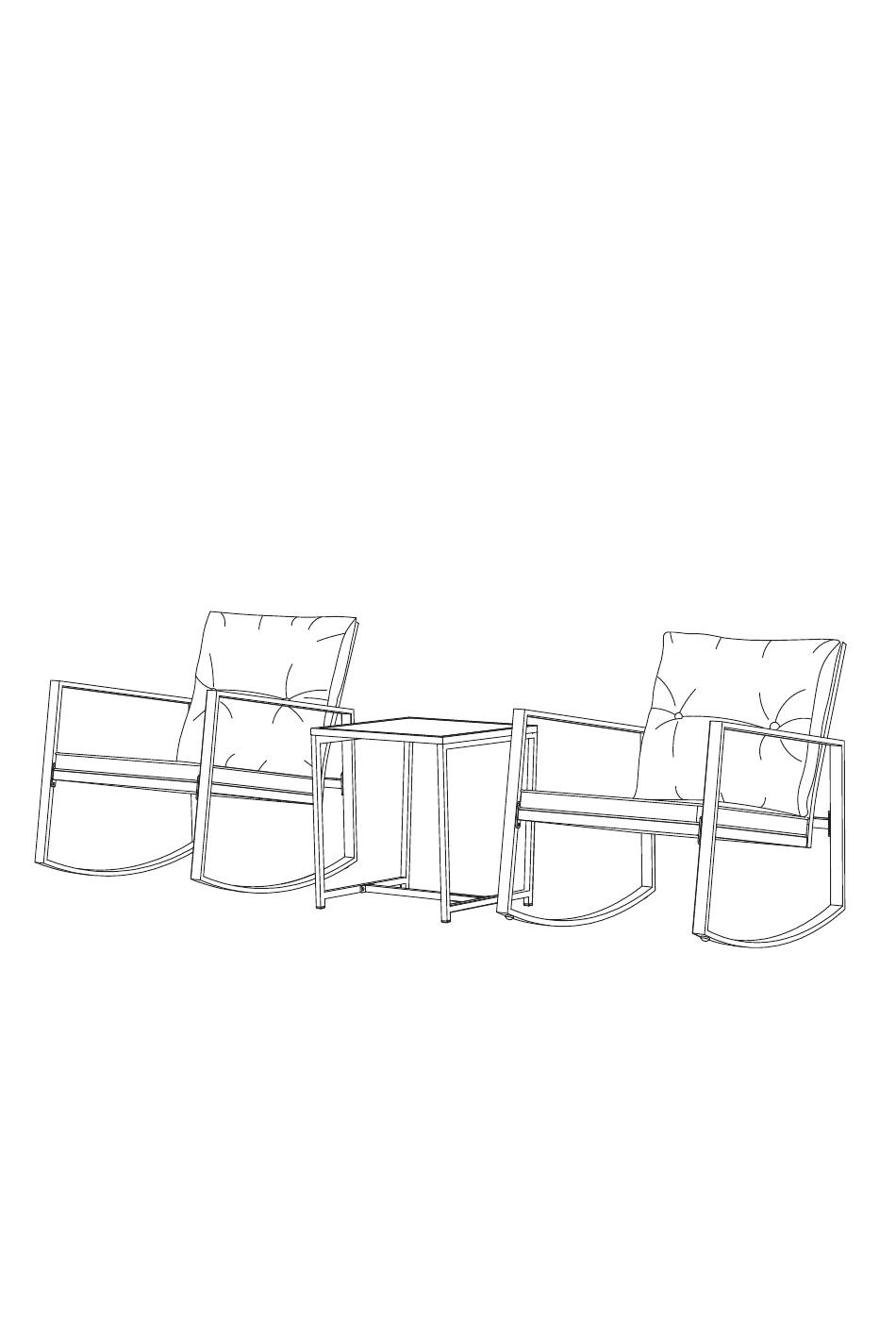

- Page 1 Wicker Rocking Bistro Set Assembly Manual...
- Page 2 Rocking Wicker Bistro Set Assembly Instruction Before assembling, make sure that you lay out and identify all parts listed below in the parts list. Install on level ground. Keep in mind that not to tighten screw until you fully set up ,After set up, fully tighten screws. Any question,please contact our customer service Assembly Bag...
- Page 3 Rocking Chair (DO THIS TWO TIMES) Item Reference Image Description Seat Back Seat Base Right Arm Rest Left Arm Rest Seat Back Attach the seatback (A) and the seat base Support (B) using a M6 x 35 socket head cap screw (E) with a flat washer (G) .Do this in two places.
- Page 4 Rocking Chair (DO THIS TWO TIMES) Flip the assembly back. Secure the seat back (A) using M6 x 35 screws (E) with a washer (G). Do this in two places. Attach the seat back support (D) using M6 x 20 screws (F) With a washer (G) . Do this in four places.
-
Page 5: Coffee Table
Coffee table Item Reference Image Description Table Legs Flip the assembly upside down. Attach Support the table top (J) and the legs(K) using a M6x35 socket head cap screw (E) with a flat washer (G). Glass Do this in four places. M6x35 Socket Head 4PCS... - Page 6 Coffee table Flip the assembly back then place the glass top (M) on it. Completly assembly,then fix and tighten all the screws.Finally place the screw Covers (H) over them.
