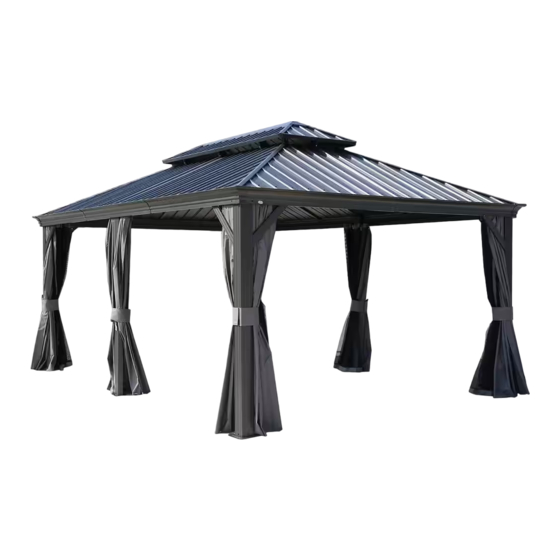

- Page 1 12‘x18’ alexander hardtop gazebo with double roof Assembly Manual Kozyard LLC Products © Copyright 2016 - 2022 Kozyard LLC. | All Rights Reserved.
- Page 2 1.Two or more people are 5.Use the hex keys in the box. required for assembly. 6.Please use a Phillips screwdriver. 2.You will need one or more stepladders. 7.Do not fully tighten screws prior 3. Wearing protective gloves is to complete assembly. recommended.
-
Page 3: Item Description
A x4 K8 x1 K18 x1 A1 x2 M1 x4 M3=M1+M2 B6 x4 M2 x4 B61 x2 N1 x2 B62 x4 N2 x2 N3 x4 B91 x2 ITEM DESCRIPTION Pole C6 x4 Pole Beam Jointer Bar C61 x2 Sidewall Track Jointer Bar Beam C62 x4... - Page 4 P12 x2 P2 x2 Q7 x2 ..W11 x2 W12 x2 W17 x2 W18 x2 Q8 x2 Q17 x2 Q18 x2 W13 x2 W14 x2 W15 x2 W16 x2 S x148+2 R x8 R1 x2 ITEM DESCRIPTION T2 x2 Finishing Bar Net Frame Finishing Bar T7 x2...
- Page 5 6# x8+1 7# x44+2 9# x28+2 X81 x2 X82 x2 X83 x2 X84 x2 X85 x2 X86 x2 10# x4+1 11# x16+1 12# x12+2 X87 x2 X88 x2 X89 x2 X90 x2 X91 x2 X92 x2 Allen key Wrench ITEM DESCRIPTION S7 x4 S8 x2...
- Page 6 Step 1: Set up Poles(Part A, Part A1) with stand plates (Part L , Part L1) using screws 1# as shown in diagram. Parts Required: A x4 L x4 A1 x2 L1 x2 page 4...
- Page 7 Parts Required: C6 x4 F x6 B6 x4 E9 x2 Step 2: 1. Connect (Part C6,B6)into one beam using union bar (Part F) with screws 1#. Short Beam Overall: 2. Connect (Part C6,E9,B6)into one beam using union bar (Part F) with screws 1#. Long Beam Overall: Tip: page 5...
- Page 8 Parts Required: x116 C61 x2 B61 x2 C62 x2 B62 x2 C91 x2 E91L x2 E91R x2 B91 x2 C62 x2 E92L x2 E92R x2 B62 x2 Step 3 ： E91L E91R E92L E92R Tip: Do not tighten all screws on jointer bar (part B61,C61, B91,C91,E91R,E91L), until the screws of the roof panels be aligned in place.
- Page 9 Parts Required: Step 4: Use Screws (2# , 3#) to connect poles and beams together as shown in diagram ② ① ② ① ③ ③ Tip: At least two people for this step. page 7...
- Page 10 Parts Required: J1 x4 J2 x4 Step 5: Affix the frame with corner solidifying bars (Parts J1, J2) using screws 1# as shown in diagram. Tips: Please measure between posts to posts (DIAGONALLY),to assure it is squared up so that all of the pre-manufactured materials fit as planned.
- Page 11 Parts Required: G x4 H x6 Step 6: Finish connecting beams using corner cover (Part G) and screws 9# as shown in diagram. ① ① ② ① ② ② ② ① ② ② ① ② 2.Affix middle beams using joint cover (Part H) and screws 9# as shown in diagram.
- Page 12 Parts Required: H2 x1 Step 7: 1.Please seal the seams with silicone rubber after finishing this step，it will prevent any water from leaking. 2.by the way , there are no need to seal the cap screws of the roof panel with this silicone rubber, as long as the screws (passing through spacer part S) are properly fixed on the roof panels.
- Page 13 Parts Required: x144 Step 8: After finishing hooks into tracks, ③ ① then put H1 to lock them. ② ② ① ③ The quantity of hooks for each slot as below: ① hooks to each slot of sidewall track (Part C62 , Part B62) ②...
- Page 14 Parts Required: M1 x4 M2 x4 Step 9: Connect the short corner roof bar (Part M1） with the corner roof bar (Part M2)using screws 1# and washer 12#. Tip: The combination will be called “Part M3” in following steps. M3=M1+M2 Tip: page 12...
- Page 15 Parts Required: N1 x2 M3 x4 N2 x2 K8 x1 N3 x4 Step 10: Set up roof frame ① Upward View hole ④ ③ ① ② 1.Connect the inside roof connector (Part K8) with the conner roof bar（Part M3) and roof bar(Part N1,N2,N3) using screws 1# as shown in diagram.
- Page 16 Parts Required: Q7 x2 P2 x2 Q8 x2 ① ① ② Upward View ① ① ② ① ② Step 11: 2.Affix finishing bar (Part Q7, Q8) .Attach finishing bar(Part P2,Q7,Q8)with to roof bars (Part N2, N3) using finishing end (Part R)using screws 1# screws 1# as shown in diagram.
- Page 17 Parts Required: K18 x1 Step 12: Connect outside roof connctor (Part K18) to inside roof (Part K8) using screws 1# as shown in diagram. Upward View page 15...
- Page 18 Parts Required: Z x12 Z3 x2 Z1 x4 Z4 x2 Z2 x4 V84 x2 V x4 V83 x2 V85 x2 V86 x2 V11 x2 V12 x2 Step 13: Snap brackets (Part Z,z1,z2,z3,z4) to roof panel edges as shown in diagram. (with snaps facing upwards) Tips: 1.
-
Page 19: Parts Required
Parts Required: T7 x2 R x4 R1 x2 T2 x2 T8 x2 V86 V85 Step 14 ： 1. Push the roof panels (Part V11,V12,V83,V84,V,V,V85,V86)to upper roof as shown in diagram. 2.Attach finishing bar (Part T2, T7 ,T8) to upper roof with finish end (Part R , Part R1) using screws 1# as shown in diagram. - Page 20 Parts Required: U1 x4 U3 x4 U4 x6 U7 x4 U8 x2 Step 15: Attach solidifying bars ( Part U1,U7,U8) to roof bar or corner roof bar using iron angle (Part U3, U4) and screws 1# as shown in diagram. ①...
- Page 21 Parts Required: W11 x2 W12 x2 W13 x2 W14 x2 W15 x2 W16 x2 W17 x2 W18 x2 Step 16: Snap brackets (Part Z) to roof panel edges as shown in diagram. (with snaps facing upwards) Tips: 1. Wearing protective gloves is recommended. 2.
- Page 22 Parts Required: Z x28 Z3 x2 Z4 x2 X81 X2 X82 X2 X83 X2 X84 X2 X85 X2 X86 X2 X87 X2 X88 X2 X89 X2 X90 X2 X91 X2 X92 X2 Step 17: Snap brackets (Part Z,Z3,Z4) to roof panel edges as shown in diagram. (with snaps facing upwards) Tips: 1.
- Page 23 Overall roof assembly: Please put the panels on the frame and assemble them from the centerline (Part N1,N2) to the left and right. Connect roof as below： Tip: Wearing protective gloves is recommended. For fastening roof panels (Part W14 ,Part X86 ) easily, please glue Part S onto Panel (Part W14 , Part X86 ）by adhesive tape in advance to avoid Part S sliding down during assembly.
- Page 24 Parts Required: S x148 L 28mm L 45mm L 50mm L 25mm Step 18: Affix roof panels using screws and spacers(Part S) as shown in diagram. ATTENTION – VERY IMPORTANT! Align all roof panels and screw LOOSELY (DO NOT TIGHTEN ANY SCREWS until all roof panels of one side are aligned accordingly), And then TIGHTEN ALL screws to lock the roof...
- Page 25 Parts Required: Q17 x2 P12 x2 Q18 x2 Step 19: Attach net frame (Part P12, Q17, Q18) to finishing bar（Part P2, Q7, Q8) using screws (1#, 11#) as shown in diagram. Upward View Perspective： Tip: The perspective drawing is for demonstrating how to assemble final step that set up Parts (P12,Q17,Q18) better.
- Page 26 Parts Required: S7 x4 S8 x2 Y7 x4 Y8 x2 Step 20: Put on mosquito net and solid sidewalls as shown in diagram. 4th 4th S7 , Y7 , page 24...
- Page 27 Parts Required: Step 21: When you close the curtain,please refer to below steps to fix with poles as shown in diagram. ① ② ③ S7 or S8 S7 or S8 Y7 or Y8 S7 or S8 Y7 or Y8 ④ ⑤...
- Page 28 Kozyard LLC 10808 6th ST, Unit 100, Rancho Cucamonga,CA 91730 © Copyright 2016 - 2022 Kozyard LLC. | All Rights Reserved.
