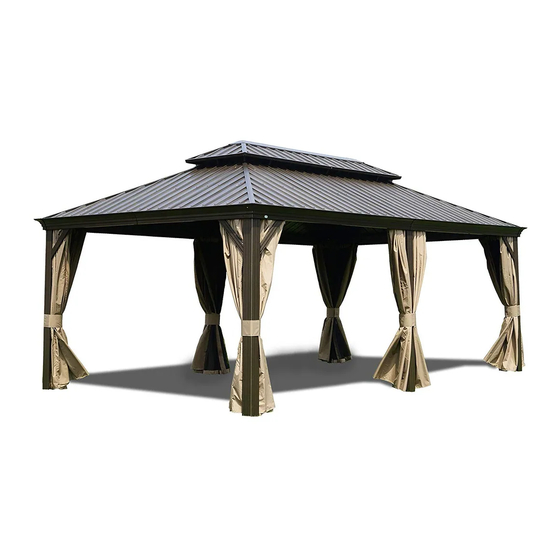

- Page 1 12’x20’ Alexander Hardtop Gazebo With Double Roof Assembly Manual Kozyard LLC Products www.kozyard.com © Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved. Version:20231006...
-
Page 2: Warnings And Cautions
Warnings and Cautions • Please read and follow this assembly and operation guide to reduce the risk of personal injury and damage to your gazebo. • Do not discard any of the packaging until you have checked that you have all the parts in place. The maximum weight capacity of this gazebo roof is 2500 pounds. - Page 3 Attention: Prior to assembly, verify that all parts and pieces are included to ensure an efficient installation process. A x4 K10 x1 K20 x1 A1 x2 M1 x4 M3=M1+M2 B6 x4 M2 x4 B61 x2 N1 x2 B62 x4 N2 x2 N3 x4 B21 x2 ITEM...
- Page 4 P12 x2 P2 x2 Q9 x2 Q10 x2 W12 x2 W11 x2 W13 x2 W14 x2 Q19 x2 Q20 x2 R x8 R1 x2 S x160+3 W15 x2 W16 x2 W17 x2 W18 x2 ITEM DESCRIPTION T2 x2 Finishing Bar Net Frame Finishing Bar T9 x2...
- Page 5 6# x8+1 7# x48+2 9# x28+2 X21 x2 X22 x2 X23 x2 X24 x2 X25 x2 X26 x2 10# x4+1 11# x16+4 12# x12+2 6-9*1.5 X30 x2 X31 x2 X32 x2 X27 x2 X28 x2 X29 x2 Allen key Wrench ITEM DESCRIPTION S7 x4...
- Page 6 Step 1: Set up Poles Parts Required: Set up Poles (Part A,A1) with Stand Plates (Part L, L1) using screws 1# as shown in the diagram. A x4 L x4 Reference for anchoring gazebo: • If the ground is concrete and its depth is over 3 inches, you can purchase 3/8"...
- Page 7 Parts Required: C6 x4 F x6 B6 x4 E2 x2 Step 2: Connect the Beams 1. Connect (Part C6,B6) into one beam using Union bar (Part F) with screws 1# as shown in the diagram. Short Beam Overall: 2. Connect (Part C6, E2, B6) into one beam using Union Bar (Part F) with screws 1# as shown in the diagram.
- Page 8 Parts Required: C61 x2 B61 x2 C62 x2 B62 x2 C21 x2 E21L x2 E21R x2 B21 x2 B62 x2 C62 x2 x108 Step 3 Connect Joint Bars with Beams E21L E21R Tip: Do not tighten all screws on Jointer Bars (Part B61,C61,B21,C21,E21R,E21L), until the screws of the roof panels be aligned in place.
- Page 9 Parts Required： E22L x2 E22R x2 Step 4 Set up Poles and Beams Use screws 3# first, then screw 2# to connect Poles and Beams together as shown in diagram. ① Tip: Place parts on carpet or rug to avoid scratches during assembly.
- Page 10 Parts Required: J1 x4 J2 x4 Step 5: Connect Solidifying Bars with Beams and Poles Affix the frame with Corner Solidifying Bars (Part J1,J2) using screws 1# as shown in the diagram. Tip: Measure (DIAGONALLY) from posts to posts to assure alignment so all materials fit as planned.
- Page 11 Parts Required: G x4 H x6 Step 6: Cover the connections 1. Finish Connecting Beams using Corner Covers (Part G) and screws 9# as shown in the diagram. ① ① ② ② ① ② ① ② ② ② ① ② 2.
- Page 12 Parts Required: H2 x1 Step 7: Seal the seams 1. After finishing Step 6, apply silicone rubber to the seams to ensure they're watertight. 2. If the screws are correctly attached through Spacer part S on the roof panels, sealing the cap screws with silicone rubber isn't necessary.
- Page 13 Parts Required: x152 Step 8: Install Hooks ③ ① After finishing Hooks (Part 4#) into the tracks, then put Joint Cover (Part H1) to lock them. ② ② ① ③ Note the amount of hooks for each slot as noted below: ①...
- Page 14 Parts Required: M1 x4 M2 x4 Step 9: Connect Corner Roof Bar “M3” Connect Short Corner Roof Bar (Part M1) with Long Corner Roof Bar (Part M2) using screws 1# and washer 12#. Tip: The combination will be called “Part M3” in following steps.
- Page 15 Parts Required: N1 x2 M3 x4 N2 x2 N3 x4 K10 x1 Step 10: Set up roof frame ① Upward View hole ③ ④ ① ② 1. Connect the inside roof connector (Part K10) with the conner roof bar（Part M3) and roof bar(Part N1,N2,N3) using screws 1# as shown in diagram.
- Page 16 Parts Required: Q9 x2 P2 x2 Q10 x2 ① ① ② Upward View ① ① ② Q 10 ① ② Q 10 Step 11: Set up Roof Bar 2. Affix the Finishing Bar (Part Q9, Q10) 1. Attach the finishing bar (Part P2, to the roof bars (Part N2, N3) using Q9, Q10) with the finishing end screw 1# as shown in the diagram.
- Page 17 Parts Required: K20 x1 Upward View K10 K20 Step 12: Connect Outside Roof Connctor Connect the Outside Roof Connector (Part K20) to the Inside Roof Connector (Part K10) using screw 1#, as shown in the diagram. page 15 Alexander 12’x20’ assembly manual...
- Page 18 Parts Required: Z x12 Z3 x2 Z1 x4 Z2 x4 Z4 x2 H3 x1 V25 x2 V24 x2 V x8 V23 x2 V26 x2 V11 x2 V12 x2 Step 13: Snap Bracket Snap Bracket (Part Z, Z1, Z2,Z3,Z4) to the roof panel edges as shown in the diagram. (with snaps facing upwards) Tips: 1.
- Page 19 Parts Required: T9 x2 R x4 T2 x2 T10 x2 R1 x2 Upward View Step 14 Assemble Roof Panel 1. Push the Roof Panels (Part V11, V12, V23, V24, V, V, V25, V26) up to the upper roof as shown in the diagram.
- Page 20 Parts Required: U1 x4 U3 x4 U4 x8 U9 x4 U10 x4 Step 15: Connect Solidifying Bars 1. Connect the U10 Bars at the ends where the holes are 5.1” apart to one another using screw 1# as shown in diagram. 5.1”...
- Page 21 Parts Required: H3 x1 W11 x2 W12 x2 W13 x2 W14 x2 W15 x2 W16 x2 W17 x2 W18 x2 Step 16: Snap Bracket Snap Brackets (Part Z) to roof panel edges as shown in the diagram. (with snaps facing upwards) Tips: 1.
- Page 22 Parts Required: Z x28 Z1 x2 H3 x1 Z2 x2 X21 x2 X22 x2 X23 x2 X24 x2 X25 x2 X26 x2 X27 x2 X28 x2 X29 x2 X30 x2 X31 x2 X32 x2 Step 17: Snap Bracket Snap Brackets (Part Z, Z1, Z2) to roof panel edges as shown in the diagram. (with snaps facing upwards) Tips: 1.
- Page 23 Overall roof assembly: Please place the panels on the frame and assemble them from the centerline (Part N1, N2) to the left and right. Connect roof as below： Tip: Wearing protective gloves is recommended. Tip: To facilitate the easy fastening of roof panels (Part W14, X26), please use double-sided adhesive tape (Part H3) to affix Part S onto Panel (Part W14, X26) in advance.
- Page 24 Parts Required: x100 S x160 L 28mm L 45mm L 50mm L 25mm Step 18: Affix roof panels using screws and Spacers (Part S) as shown in the diagram. Align all roof panels and screws LOOSELY (DO NOT TIGHTEN ANY SCREWS) until all the roof panels are aligned accordingly.
- Page 25 Parts Required: Q19 x2 P12 x2 Q20 x2 Step 19: Assemble Net Frames Attach net frame (Part P12, Q19, Q20) to finishing bar（Part P2, Q9, Q10) using screws (1#, 11#) as shown in the diagram. Upward View Perspective： Tip: The perspective drawing is for demonstrating how to assemble the final step that sets up the Net Frame (Parts P12, Q19, Q20) more effectively.
- Page 26 Parts Required: S7 x2 S9 x2 Y7 x2 Y9 x2 Step 20 Assemble Net and Sidewall Hang the Mosquito Net on the inner rails and the Solid Sidewalls on the outer rails as shown in the diagram. Y7,Y9 S7,S9 10 11 12 13 Sidewall page 24...
-
Page 27: Care And Warranty
Parts Required: SY X4 Step 21: When closing the Mosquito Net, refer to the steps below to align it with the poles, as shown in the diagram. ① S7,S9 Y7,Y9 ④ ③ ② ⑤ S7,S9 S7,S9 S7,S9 Y7,Y9 Y7,Y9 S7,S9 Y7,Y9 Care and Warranty •... - Page 28 Don't hesitate to contact us directly if you are missing parts or need a replacement. Kozyard LLC © Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved.
