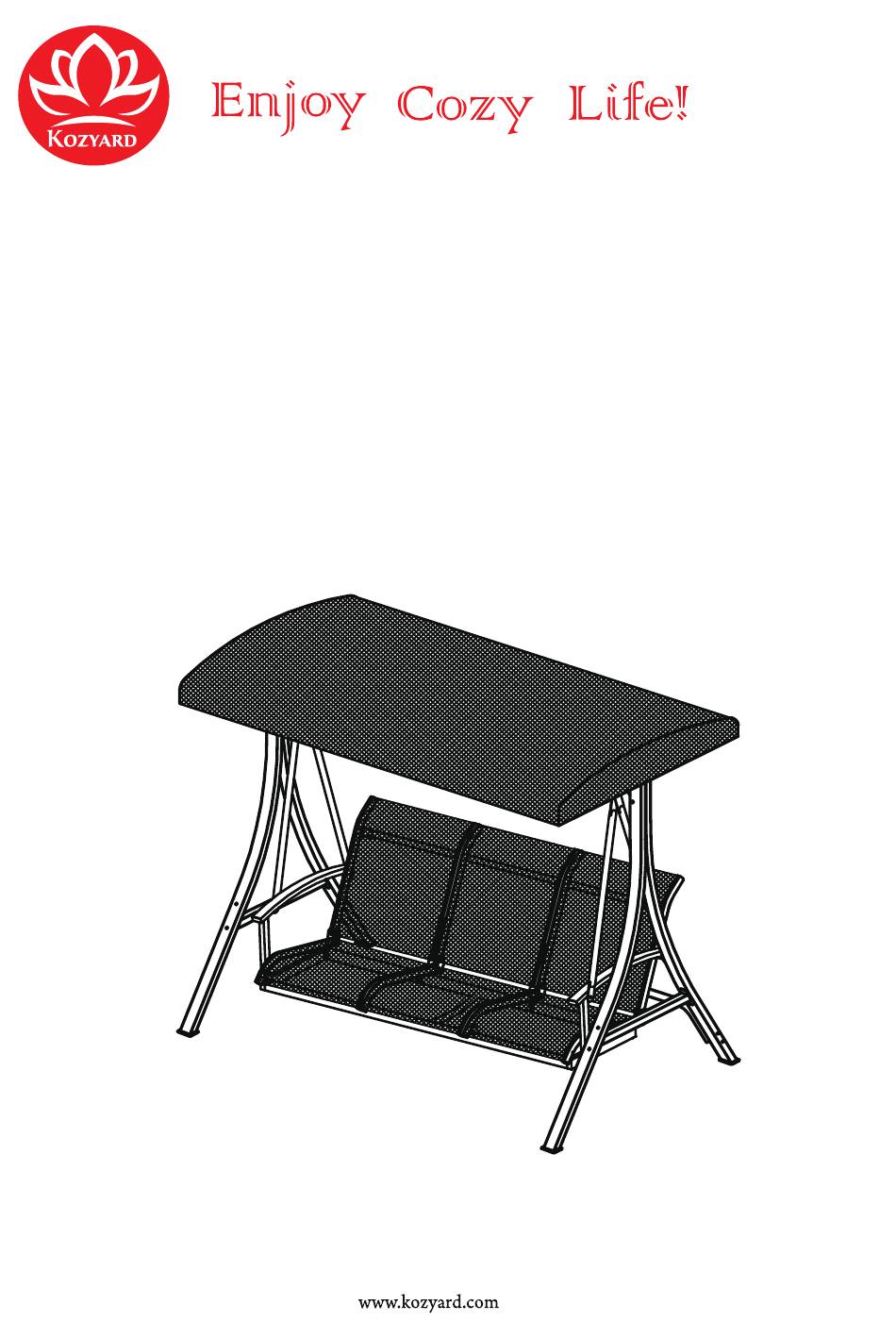

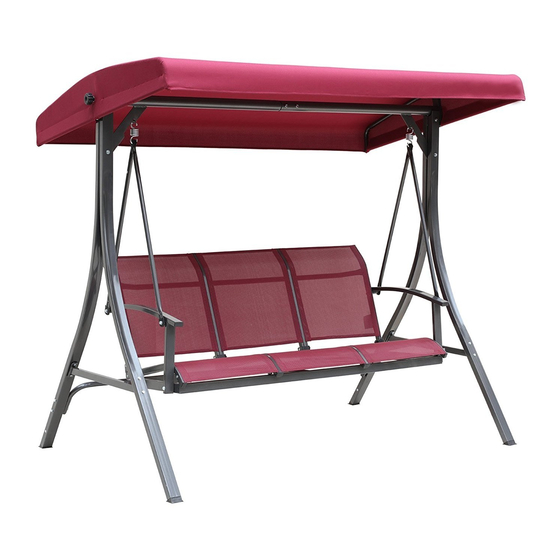

- Page 1 Brenda swing chair Assembly Manual Kozyard LLC Products...
- Page 2 ASEEMBLY INSTUCTION BEFORE ASSEMBLING,MAKE SURE THAT YOU LAY OUT AND IDENTIFY ALL PARTS LISTED BELOW IN THE PARTS LIST. INSTALL ON LEVEL GROUND. INSTALL NOT LESS THAN 6 FEET FROM ANY OBSTRUCTION SUCH AS FENCE, GARAGE,HOUSE, OVERHANGING BRANCHES, LAUNDRY LINES,OR ELECTRICAL WIRES. TIGHTEN ALL NUTS AND BOLTS SECURELY.ALL BOLTS SHOULD BE HAND TIGHENED BEFORE USE.NEVER USE POWER TOOLS OR EXCESSIVE FORCE DURING ASSEMBLY AND TIGHTENING OF BOLTS.
-
Page 3: Parts List
PARTS LIST LEG TUBE LEG TUBE top cross bar top cross bar leg cross bar hanging pipe back leg cross back leg cross bar spring hook canopy armrest armrest M8X32 seat frame back frame M6X30 M6X40 M8X70 m6x80... - Page 4 Step-1 Use bolt R to connect part D and C to build the beam. Step-2 Use bolt S to connect Part A and B, then connect with the beam. Attention: Both part A should be the same side, and both Part B should be in the other side.
- Page 5 Step-3 Use bolt O to connect Part G and Part F to build a connection tube for the rear foot. Step-4 Use bolt U to connect the rear foot tube with part B.
- Page 6 Loose the part M(back) screws first,then connect part L(seat) together Step-5 by the screws. Step-6 Use bolt B to connect E1 with I Use bolt S to connect Part E1 and I with Part M. Use bolt Q connect Part I with Part L...
- Page 7 Step-7 Use part H to hook the seat to the frame Step-8 Use Part Y to fix the canopy to the ends of the beam...
- Page 8 Step-9 Tight all of the screws.
