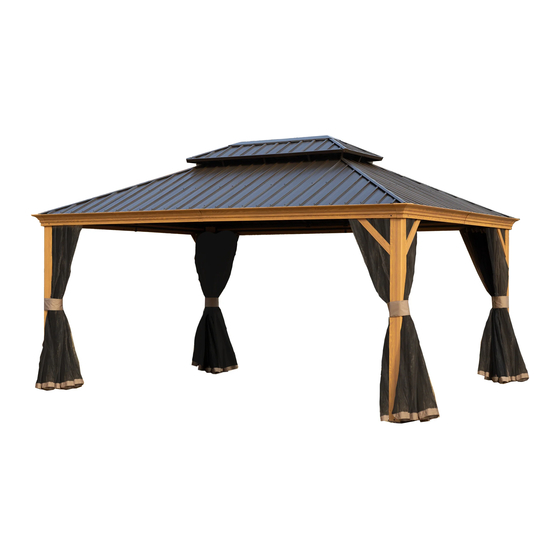

- Page 1 12’x16’ Alexander hardtop gazebo with double roof Assembly Manual Kozyard LLC Products © Copyright 2016 - 2019 Kozyard LLC. | All Rights Reserved.
- Page 2 1.Two or more people are required for assembly. 2.You will need one or more stepladders. 3. Wearing protective gloves is recommended. 4.You may need a safety hat. 5.Use the hex keys in the box. 6.Please use a Phillips screwdriver. 7.Do not fully tighten screws prior to complete assembly.
- Page 3 J1X4 J2X4 B1X2 B2X2 K1X1 C1X2 C2X2 N1X4 D1aX2 ITEM DESCRIPTION Pole D1X2 Beam Joint Bar Sidewall Track D2X2 Beam Jointer Bar Sidewall Track Beam Jointer Bar Jointer Bar Sidewall Track E1X2 Beam Jointer Bar E1aX2 Jointer Bar Sidewall Track E2X2 Union Bar Corner Cover...
- Page 4 P1X2 W1X2 W8X2 Q2X2 W4X2 W5X2 Q1X2 SX136 W2X2 W3X2 W6X2 W7X2 T1X2 T2X2 X5X2 X6X2 U1X2 U2X2 ITEM DESCRIPTION U3X2 Finishing Bar Net Frame U4X2 Finishing Bar Net Frame Net Frame U7X2 Finishing End Spacer Finishing Bar Finishing Bar Solidifying Bar U5X4 U6X6...
-
Page 5: Description Qty
5#X88+2 6#X8+1 X2X2 X1X2 X9X2 X10X2 7#X36+2 8#X4+1 9#X24+2 10#X4+1 X3X2 X4X2 X7X2 X8X2 11#X12+1 Allen key Wrench Y1X4 ITEM DESCRIPTION Roof Panel Roof Panel ZX72 Roof Panel Roof Panel Z1X4 Roof Panel Roof Panel Roof Panel Z2X4 Roof Panel Mosquito Sidewall Z3X4 Solid Sidewall... - Page 6 Step 1: Parts Required: Set up poles (Part A) with stand plates (Part L) using screws 1# as shown in diagram. L x4 A x4 page 4...
-
Page 7: Parts Required
Parts Required： F x4 B x2 E x2 D x2 Step 2： Connect (Part C) and (Part B) into one beam using union bar (Part F) with screws 1# as shown in diagram. ③ Connect Part E and Part D into one beam using union bar (Part F) with screws 1# as shown in diagram. - Page 8 Parts Required: C1 x2 B1 x2 B2 x2 x104 C2 x2 E1 x2 D1 x2 E2 x2 D2 x2 D1aX2 E1aX2 Step 3 ： B1 B 2 C1 C 2 D1 D 2 E1 E 2 Connect parts (E2&D2) to the finished beam (part E& part D) using screws 1# as shown in diagram.
- Page 9 Parts Required： Step 4 ： Use screws (2# & 3#) to connect poles and beams together as shown in diagram. ① ① ② ② page 7...
- Page 10 Parts Required: J1 x4 J2 x4 Step 5: Affix the frame with corner solidifying bars (Parts J1 & J2) using screws 1# as shown in diagram. page 8...
- Page 11 Parts Required: H x4 G x4 ① ② Step 6: ① Finish connecting beams using corner covers (Part G) and screws 9# as shown ② in diagram. ② ① ① ② ② ① Affix middle beams using joint cover (Part H) and screws 9# and 8# as shown in diagram.
- Page 12 Parts Required: x128 H1 x4 ① ② ② ① After finish hooks into tracks, then put H1 to lock them. Step 7: ① ② Put 7 hooks to each slot of Put 9 hooks to each slot of sidewall track (part C2&Part B2) sidewall track (part E2&Part D2) page 10...
- Page 13 Parts Required: P x2 M x4 K x1 R x4 Q x2 Step 8: Set up roof frame ② Connect the inside roof connect(Part K) with the corner roof bar (Part M)using screws 1# ② Attach finishing bar (Part P&Q)with finish end (Part R) using screws 1# to corner roof bar (Part M) as shown in diagram.
- Page 14 Parts Required: N x4 Q1 x2 N1 x4 Q2 x2 Attach roof bars (Part N,N1) to inside roof connector using screws 1#, Attach net frames (Part P1,Q1 &Q2) to finishing bars （Part P &Q） using screws 1#&11# as shown in diagram. ①...
- Page 15 Parts Required: K1 x1 Step 10 ：Connect outside roof connctor (Part K1)to inside roof (Part K)using screw 1# as shown in diagram. page 13...
- Page 16 Parts Required: Step 11: Cover metal bracket (Part Z,Z1,Z2) to roof panels as shown in diagram. page 14...
- Page 17 Parts Required: T1 x2 R x4 V5 V6 Step 12 ： Push the roof panels (Partv, v1,v2,v3,v4,v5,v6)to upper roof as shown in diagram. Attach finishing bar (Part T1&T2)to upper roof with finish end (Part R) using screws 1#as shown in diagram. page 15...
- Page 18 Parts Required: U3 x2 U1 x2 U6 x6 U7 x2 U2 x2 U4 x2 U5 x4 ② ② ③ ② ① ③ ② ① ② ② ① Attention: Please loose two bolts on U7 if it is too tightly to fix to roof bar. Attach solidifying bars (Part U3，U4&U7) or(Part U1&U2)together to roof bar using iron angle (Part U6) and screws 1# as...
- Page 19 Parts Required: Step 14 ： Cover metal bracket (Part Z) to roof panels as shown in diagram. page 17...
- Page 20 Parts Required: Step 15 ： Cover metal bracket (Part Z,Z3,Z4) to roof panels as shown in diagram. page 18...
- Page 21 Overall roof assembly: X9 X10 Connect roof as below: page 19...
- Page 22 Parts Required: S x136 ① ② Step 15: Affix roof panels using screws and spacers (Part S) as shown in diagram. Attention: Put on one roof panel and fasten it accordingly before attaching second roof panel. ② ① ③ ② ①...
- Page 23 Parts Required: Step 16 ： Hang up mosquito sidewalls and solid sidewalls as shown in diagram. In the end check all screws are fixed tightly before using. page 21...
- Page 24 Kozyar © Copyright 2016 - 2019 Kozyard LLC. | All Rights Reserved.
