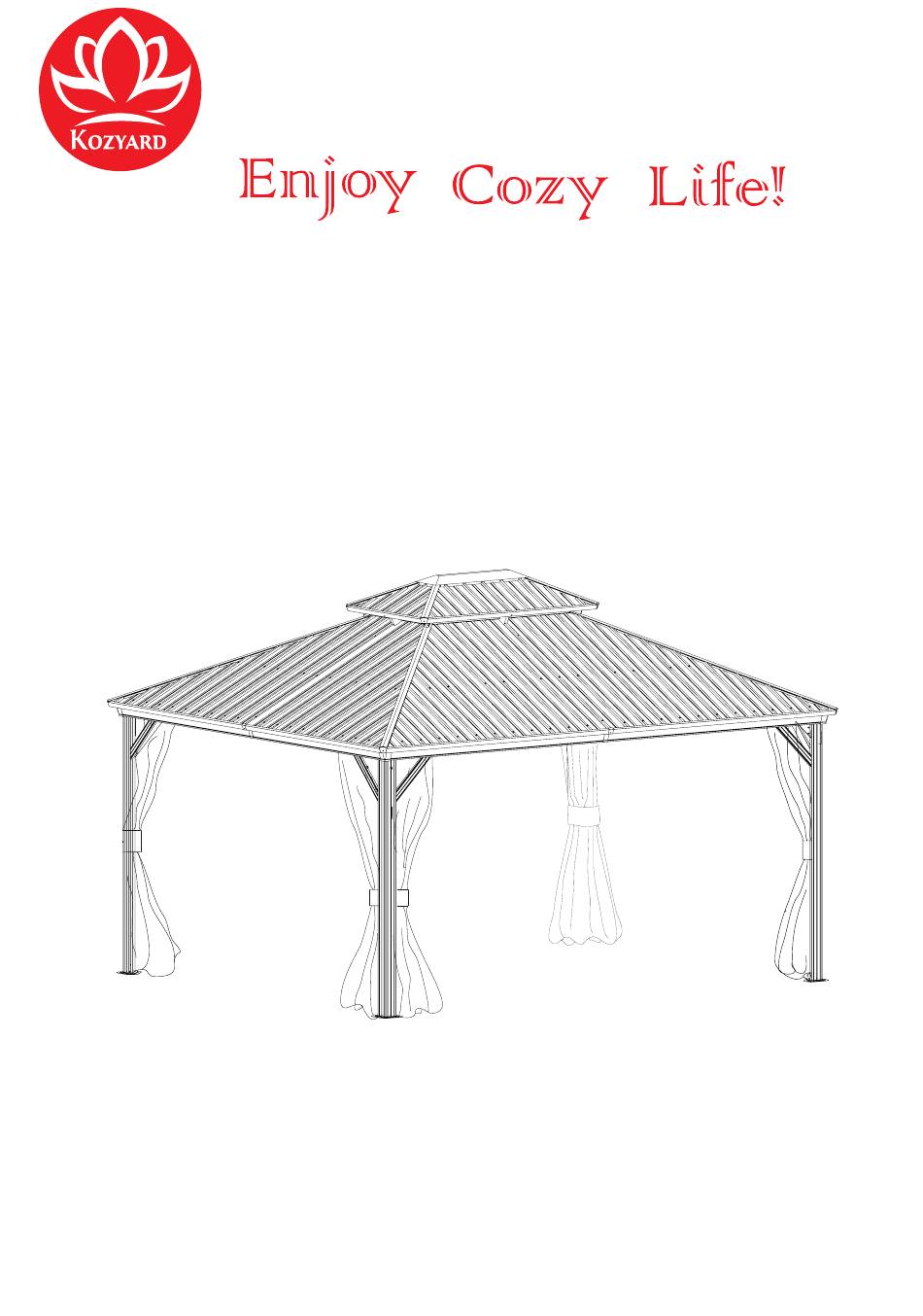

- Page 1 12’x14’ Caesar Hardtop Gazebo With Double Roof Assembly Manual Kozyard LLC Products www.kozyard.com © Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved. Version:20231006...
-
Page 2: Warnings And Cautions
Warnings and Cautions • Please read and follow this assembly and operation guide to reduce the risk of personal injury and damage to your gazebo. • Do not discard any of the packaging until you have checked that you have all the parts in place. The maximum weight capacity of this gazebo roof is 2000 pounds. - Page 3 K4 x1 Short orner Roof Bar orner Roof Bar Long Roof Bar Finishing End Roof Bar Connector K14 x1 Finishing Bar Net Frame Finishing Bar M1 x4 Net Frame M7=M1+M6 Net Frame M6 x4 Caesar 12’x14’ assembly manual page 1...
- Page 4 V12 x2 V11 x2 Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel V43 x2 V44 x2 V45 x2 V46 x2 Roof Panel Roof Panel Roof Panel Roof Panel Caesar 12’x14’ assembly manual page 2...
- Page 5 Z4 x2 Z3 x2 Bracket Screws 186+4 Screws 16+2 4# x120+2 Screws Screws 16+2 Hook 120+2 1# x186+4 Screws 80+2 Screws 2# x16+2 Screws 36+2 Screws 24+2 Screws 12+1 3# x8+1 Screws Washer 12+2 Caesar 12’x14’ assembly manual page 3...
-
Page 6: Parts Required
3 inches 3/8 inches (Not included) After assembly, we strongly recommend anchoring the gazebo to your deck or concrete as shown above. Damage resulting from wind or improper anchoring is not covered under warranty. Caesar 12’x14’ assembly manual page 4... - Page 7 1# as shown in the diagram. Short Beam Overall: Connect Beams (Part G7, F7) into one beam using Union Bar (Part F5) with screws 1# as shown in the diagram. Long Beam Overall: Caesar 12’x14’ assembly manual page 5...
- Page 8 Poles and Beams together as shown in the diagram. ① Tip: Place parts on carpet or rug to avoid scratches during assembly. ② ② ① Tip: At least three people for this step. Caesar 12’x14’ assembly manual page 6...
- Page 9 Affix the frame with Corner Solidifying Bars (Parts J5, J6) using screws 1# as shown in the diagram. Tip: Measure (DIAGONALLY) from posts to posts to assure alignment so all materials fit as planned. page 7 Caesar 12’x14’ assembly manual...
- Page 10 Parts Required: G5 x4 H5 x4 ① ② Step 5: Cover the connections 1. Finish Connecting Beams using Affix middle beams using Joint Corner Covers (Part G5) and screws 9# Cover (Part H5) and screws 9# as as shown in the diagram. shown in the diagram.
- Page 11 Attach 8 Hooks in each slot of the Sidewall Attach 7 Hooks in each slot of the Sidewall Track on Beams (Part F7, G7). Track on Beams (Part E6, D6). Caesar 12’x14’ assembly manual page 9...
- Page 12 Long Corner Roof Bar (Part M6) using screws 1# and washer 12#. Tip: The combination will be called “Part M7” in following steps. M7=M1+M6 Tip: Step 8: Set up Roof Frame Upward View Upward View ② Caesar 12’x14’ assembly manual page 10...
- Page 13 Attach Corner Roof Bar(Part M7) Finish End (Part R) using screws 1# to to main frame using screw 1# ③ Corner Roof Bar (Part M7) as shown as shown in the diagram. in the diagram. ② Caesar 12’x14’ assembly manual page 11...
- Page 14 1. Attach Roof Bar (Part N6) to Roof Connector (Part K4) using screw 1# as shwon in the diagram. Attach Roof Bar (Part N6) to Beams using screw 1# as shwon in the diagram. Caesar 12’x14” assembly manual page 12...
- Page 15 Connect Outside Roof Connector (Part K14) to Inside Roof (Part K4) using screw 1# as shown in the diagram. Upward View Tips: Do not tighten these two screws completely before step 12, only after puting all upper panels in place,then tighten them thoroughly. Caesar 12’x14’ assembly manual page 13...
- Page 16 (Part Z, Z1, Z2, Z3, Z4) are supposed to attach. 3. You can use super glue (not included) to attach the brackets to the roof panel if the double-sided tape doesn't work for you. Caesar 12’x14’ assembly manual page 14...
- Page 17 1. Push the Roof Panels (Part V11, V12, V43, V44, V45, V46) to upper roof as shown in the diagram. 2. Attach Finishing Bars (Part T2, T4) to upper roof with Finish End (Part R) using screws 1# as shown in the diagram. Caesar 12’x14’ assembly manual page 15...
- Page 18 If the holes on the Solidifying Bar (Part U1,U6) and the hole of the roof panel cannot be aligned, please adjust or loosen screw 1# until the screws of the roof panel are in place. Caesar 12’x14’ assembly manual page 16...
- Page 19 (Part Z) are supposed to attach. 3. You can use super glue (not included) to attach the brackets to the roof panel if the double-sided tape doesn't work for you. Caesar 12’x14’ assembly manual page 17...
- Page 20 Parts Required: H3 x1 Z X32 A41 x2 A42 x2 A43 x2 A44 x2 A45 x2 A46 x2 A47 x2 A48 x2 A49 x2 A50 x2 Step 15 Snap Bracket Snap bracket (Part Z) to roof panel edges as shown in diagram. (with snaps facing upwards) Tips: 1.
- Page 21 (Part H3) to affix Part S onto Panel (Part B24, Part A45) in advance. This will prevent Part S from sliding down during assembly. Part S with adhesive tape B24 , A45 The back view of Part B24 , Part A 45 Caesar 12’x14’ assembly manual page 19...
- Page 22 Align all roof panels and screws LOOSELY (DO NOT TIGHTEN ANY SCREWS) until all the roof panels are aligned accordingly, THEN TIGHTEN all screws to secure the roof panels in place. Tip: At least two people for this step. page 20 Caesar 12’x14’ assembly manual...
- Page 23 1. Attach Finishing bars (Part R11, R12, R13, R14) to Roof bar and Corner Roof bar. 2. Then put Finshih End (Part R, R1) to cover them using screws 1# as shown in the diagram. page 21 Caesar 12’x14’ assembly manual...
- Page 24 (1#, 11#) as shown in the diagram. Q 13 P 12 Perspective: Tip: The perspective drawing is for demonstrating how to assemble the final step that sets up the Net Frame (Parts P12, Q13, Q14) more effectively. Caesar 12’x14’ assembly manual page 22...
- Page 25 S3 x2 S4 x2 Step 19: Assemble Net Sidewall Hang the Mosquito Net on the inner rails and the Solid Sidewalls on the outer rails as shown in the diagram. S1,S2 Y1,Y2 Curtain 15th Caesar 12’x14’ assembly manual page 23...
-
Page 26: Care And Warranty
However, the privacy curtain and mosquito netting are warranted for just 90 days. For a comprehensive warranty policy, please visit www.kozyard.com. Be aware that warranty terms can change without prior notification. - Page 27 Don't hesitate to contact us directly if you are missing parts or need a replacement. Kozyard LLC © Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved.
