Parkside PHSA 20-LI B2 - Trimmer Manual

The following warnings are used in the user manual and on the packaging:
	Read the instruction manual.		Wear protective gloves!
	DANGER! This symbol with the signal word "Danger" indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.		Risk of electric shock!
			Switch the product off and remove the battery pack before replacing attachments, cleaning and when not in use.
	WARNING! This symbol with the signal word "Warning" indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury.		Do not expose to rain!
			Protect the battery pack against heat and continuous intense sunlight.
			Protect the battery pack against water and moisture.
	CAUTION! This symbol with the signal word "Caution" indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.		Protect the battery pack from fire.
			Protection class II (double insulation)
			Alternating current/voltage
	ATTENTION! This symbol with the signal word "Attention" indicates a possible property damage.		Direct current/voltage
			Danger – Keep hands away from blade.
	Wear hearing protection!	T3.15A	Fuse
	Wear eye protection!		Use in dry indoor rooms only.
	Wear protective, slip resistant footwear!		CE mark indicates conformity with relevant EU directives applicable for this product.
	Safety information Instructions for use		Guaranteed sound power level

Introduction

˜ Intended use

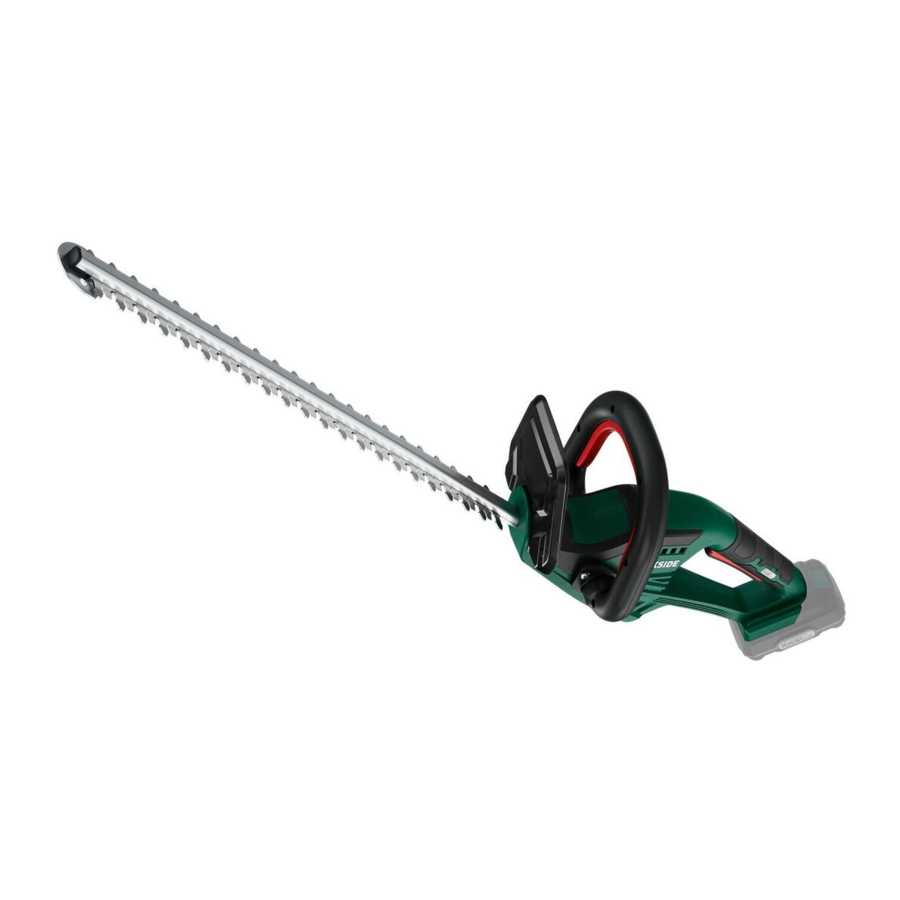

This cordless hedge trimmer (hereinafter "product" or "power tool") is intended for cutting and trimming hedges, bushes and ornamental shrubs.

Any other use or modification of the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage. The manufacturer is not liable for any damages caused by improper use.

This product is designed for domestic use and similar applications. The product is not suitable for commercial use.

The product is designed for use by adults. Adolescents over the age of 16 may use the product only under supervision. The operator or user is responsible for accidents or damage to other people or their property.

The product is part of the Parkside X 20 V Team series. The product must be used with batteries from the Parkside X 20 V Team series.

˜ Scope of delivery

→ The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!

1 Cordless hedge trimmer

1 Blade guard

1 Instruction manual

˜Parts description

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the product.

Figure A

1. Strike guard
2. Safety knife bar
3. Hand protection
4. Safety switch
5. Front handle
6. Ventilation slots
7. On/off switch
8. Rear handle
9. Battery guide track
10. Motor housing
11. Suspension/motor housing
12. Blade guard
13. Suspension/blade guard
14. "Unlock" marking

Figure B and C

15. Battery pack *
16. button (charging level)
17. Charging level LEDs (red/orange/green)
18. Release button for battery pack
19. Battery charger (rapid battery charger) *
20. Charging control LED – Red
21. Charging control LED – Green
22. Power cord with power plug

*Battery pack and battery charger (rapid battery charger) are not included

˜ Technical data

Cordless hedge trimmer 20 V	PHSA 20-Li B2
Motor voltage U:	20 V
Idling speed n0:	1300 min–1
Cutting length:	approx. 516 mm
Tooth spacing:	16 mm
Weight:	2.32 kg
Battery pack	PAP 20 B1 *
Type:	Lithium-Ion
Rated voltage:	20 V max.
Capacity:	2.0 Ah
Energy value:	40 Wh
Number of cells:	5
Battery pack	PAP 20 B3 *
Type:	Lithium-Ion
Rated voltage:	20 Vmax.
Capacity:	4.0 Ah
Energy value:	80 Wh
Number of cells:	10

Rapid battery charger PLG 20 C3 *

Input:
Rated voltage:	230–240 V~
Rated frequency:	50 Hz
Rated power:	120 W
Fuse (internal):	3.15 A/
Input:
Rated voltage:	21.5 V
Charging current:	4.5 A
Protection class:	II/

* Battery pack and battery charger (rapid battery charger) are not included.

Charging times	PAP 20 B1	PAP 20 B3
PLG 20 C3	35 min	60 min

Recommended ambient temperature:

Overall maximum temperature:	+45°C
While charging:	+4 to +40°C
During operation:	+4 to +40°C
During storage:	+20 to +26°C

Noise emission value
The measured values have been determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows:

Sound pressure level	LpA	75.4 dB(A)
Uncertainty	KpA	3 dB
Sound power level	LWA
guaranteed		87 dB(A)
measured		84.5 dB(A)
Uncertainty	KWA	2.4 dB

Vibration emission value
Vibration total values (triaxial vector sum) determined according to EN 62841:

Front handle	ah	1.510	m/s²
Uncertainty	K	1.5	m/s²
Rear handle	ah	1.082	m/s²
Uncertainty	K	1.5	m/s²
Wear ear protection!
NOTE
→ The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another. → The declared total vibration value and the declared noise emission value may also be used for a preliminary assessment of exposure.
→ The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the manner in which the tool is used, especially what kind of workpiece is processed. → It is necessary to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Safety instructions

˜General power tool safety warnings

→ Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
6. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
2. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
3. Prevent unintentional starting. Ensure the switch is in the offposition before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
8. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
5. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
8. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

1. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
2. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
3. When a battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
4. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
5. Do not use a battery pack for tool that is damaged or modified. Damaged or modified batteries exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
6. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
7. Follow all charging instruction and do not charge the battery pack or tool outside the temperature range specified in the instruction. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of the fire.

Service

1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
2. Never service damaged battery packs. Service of battery packs should be only be performed by the manufactured or authorized service providers.

˜Special safety directions for hedge trimmers

1. Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
2. Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will decrease the risk of inadvertent starting and resultant personal injury from the blades.
3. When transporting or storing the hedge trimmer, always fit the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades.
4. When clearing jammed material or servicing the unit, make sure all power switches are off and the battery pack is removed or disconnected. Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury.
5. Hold the hedge trimmer by insulated gripping surfaces only, because the blade may contact hidden wiring. Blades contacting a "live" wire may make exposed metal parts of the hedge trimmer "live" and could give the operator an electric shock.
6. Keep all power cords and cables away from cutting area. Power cords or cables may be hidden in hedges or bushes and can be accidentally cut by the blade.
7. Do not use the hedge trimmer in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.

˜Further safety directions

1. The appliance is designed for trimming hedges. Do not use to cut twigs, hard wood or other objects. This could damage the appliance.
2. Do not attempt to release a blocked/jammed blade safety bar before turning off the power and removing the battery. There is a risk of injury.
3. When operating the appliance, always hold it well with both hands and at some distance away from your body. This enables better control of the power tool in unexpected situations.
4. Do not use the tool in the vicinity of flammable liquids or gasses. Fire- and explosion risk exist in the event of a short circuit.
5. The blades have to be checked for wear in regular intervals and resharpened. Blunt blades will overload the machine. Resulting damages are not covered by warranty.
6. Do not attempt to repair the tool yourself, unless you are schooled in this field. All works, which are not described in this manual, may only be performed by our ServiceCentre. Many accidents are caused by poorly maintained equipment.
7. Do not use any accessories that are not recommended by PARKSIDE. This can result in electric shock or fire.
8. Work standing on the ground and keep your balance. Do not work while standing on unstable support.
9. Before the work, search the hedge for concealed objects, e.g. wire fences, cable etc. In this way you avoid damage to the appliance.
10. Hold the hedge trimmer correctly, e.g. with both hands on the handles, if there are two handles. Loss of control of the equipment may result in injuries.

˜Vibration and noise reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use lowvibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimise the vibration and noise exposure risks:

• Only use the product as intended by its design and these instructions.
• Ensure that the product is in good condition and well maintained.
• Use correct accessory tools for the product and ensure they are in good condition.
• Keep tight grip on the handles/grip surface. Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
• Plan your work schedule to spread any high vibration tool use across a longer period of time.

˜Behaviour in emergency situations

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.

• Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
• Switch the product off and disconnect it from the mains if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

˜Residual risks

• Even if properly operating and handling the product, some residual risks will remain. Due to its construction and build, the product may present the following hazards:
  • Cuts
  • Hearing loss if working without hearing protection.
  • Damage caused to your health resulting from hand/arm vibrations if the power tool is used over a longer period of time or if it is not properly used and maintained.

NOTE

→ This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

˜Battery charger safety warnings

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
  Cleaning and user maintenance shall not be made by children without supervision.
• Do not charge nonrechargeable batteries.
  Disregarding this instruction is hazardous.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Protect the electrical parts against moisture. Do not immerse such parts in water or other liquids to avoid electrical shock. Never hold the appliance under running water. Pay attention to the instructions provided for cleaning, maintenance and repair.
• The appliance is suitable for indoor use only.

ATTENTION! This charger is only designed for charging the battery pack types:
Parkside 20 V battery pack

PAP 20 B1 PAP 20 B2	2 Ah	5 cells
PAP 20 B3	4 Ah	10 cells
PAPS 204 A1	4 Ah	5 cells
PAPS 208 A1	8 Ah	10 cells

• Customers from HU (Hungary), CZ (Czech Rep.) & SK (Slovakia) can obtain compatible replacement batteries and chargers from the LIDL online shop www.lidl.de. Customers from SI (Slovenia) via www.optimexshop.com.

Suitable battery packs and chargers

Battery pack: Parkside X 20 V Team
Charger: Parkside X 20 V Team

˜Before use

˜Accessories

• To operate this product safely and correctly, always wear suitable personal protective equipment.
• This includes:
  • Safety goggles
  • Hearing protection
  • Protective gloves
  • Protective footwear

˜Unpacking

• Open the packaging and remove the product carefully.
• Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the product for transport damage.

→ The product and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

Attaching/removing the battery pack

• Attaching the battery pack: Align the battery pack [15] to the battery guide track [9] and push it in until it locks in place.
• Removing the battery pack: Press the release button [18] on the battery pack. Pull the battery pack out.

Checking the battery pack charging level

(Fig. B)

• Press [16]. The charging level LEDs [17] light up:

LED [17]	Charging level
Red/orange/green	Maximum
Red/orange	Medium
Red	Low

˜Charging the battery pack

(Fig. C)

RISK OF INJURY!
Always unplug the battery charger [19] from the mains before removing the battery pack [15] from the charger or inserting the battery pack.

NOTE

→ The battery pack may be charged at any time without reducing its life. → Interrupting the charging process does not damage the battery pack.

• Charge the battery pack before operation when it is at medium or low charging level.
• The charging control LEDs (red [20] and green [21]) indicate the status of the charger and the battery pack:

LED	Status
Red LED lights up	Battery pack charges
Green LED lights up	Battery pack fully charged
Green and red LED flashing	Battery pack defective
Red LED flashing	Battery pack too cold or too warm
Green LED lights up (without battery pack)	Charger ready

1. Insert the battery pack into the charger.
2. Connect the power cord with power plug [22] of the charger to a socket-outlet.
3. When the battery pack is fully charged:

• Disconnect the power plug of the charger from the socket-outlet.
• Remove the battery pack from the charger.

Charging Time

	**PAP 20 B1/B2 2 Ah	**PAP 20 B3 4 Ah	**Smart PAPS 204 A1 4 Ah	**Smart PAPS 208 A1 8 Ah
*PLG 20 A4/C1 (max. 2.4 A)	60 min	120 min	120 min	210 min
*PLG 20 C2 (max. 3.5 A)	45 min	80 min	80 min	165 min
*PLG 20 A3/C3 (max. 4.5 A)	35 min	60 min	50 min	120 min
*PDSLG 20 A1 (max. 4.5 A)	35 min	60 min	50 min	120 min
*Smart PLGS 2012 A1	35 min	35 min	35 min	45 min

* Charger

** Battery pack

˜ Operation

RISK OF INJURY!

Wear protective gloves! Wear hearing protection! Wear safety goggles! Wear protective, slip resistant footwear!

ATTENTION!

→ Check the product for wear and tear before each use. → The product will be switched ON when the on/off switch [7] and the safety switch [4] are held simultaneously. When either one of the switches is released the product will be switched OFF. Should one of the two switches be damaged, stop working with the product.

˜ Switching the product on/off

RISK OF INJURY!

→ Firmly hold the product with both hands while directing the product away from the body (Fig. D). Check that the product is not in contact with other objects before switching on.

Removing the blade guard

1. Unlock the blade guard [12]: Press and hold[14]
2. Pull the blade guard off the safety knife bar [2] (Fig. J).


Switching the product on

1. Check that the battery pack [15] is in place (see "Attaching/removing the battery pack").
2. Press and hold the safety switch [4] at the front handle [5].
3. Press and hold the on/off switch [7]. The product runs at top speed by default.

Switching the product off

• Release the safety switch [4] or the on/off switch [7].

˜ Working instructions

RISK OF INJURY!

→ When operating the product, do not make contact with solid objects, e.g. wire fences or main plant stems. You could otherwise loose control over the product. u If the safety knife bar [2] gets jammed by solid objects: Turn the product off immediately and remove the battery pack [15]. Only then should you remove the object. u Avoid overstraining the product during work.

RISK OF PRODUCT DAMAGE!

→ Before use, check that the edge of the safety knife bar is sharp. A blunt edge can overstress and damage the product. Damages caused by cutting with a blunt edge are not covered by the warranty (see "Maintenance").

˜ Cutting techniques

• Before operating the product: Use branch clippers to cut away thick branches.
• The safety knife bar [2] enables cutting in both directions.
• Vertical cutting: Move the product uniformly forward or up and down (Fig. E).

• Horizontal cutting:
  • Tilt the product so that the safety blade shaft is pointing downwards by approx. 0 to 10° in cutting direction. With the product in this position, move the product horizontally — not downwards (Fig. H).

  • Move the product in a sickle-shaped movement to the edge of the hedge, so that cut branches fall to the ground.
• To produce long straight lines: Place guiding cords as an aid for orientation.

Cutting shaped hedges

• Cut hedges in a trapezoidal shape, in order to prevent stripping off the lower branches (Fig. G). This corresponds to natural plant growth and allows the hedge to thrive. When cutting, only reduce new annual growth. This facilitates a dense branching.

• Cut the sides of a hedge first. To do this, move the product in the direction of growth from bottom to top. If you cut down from the top, the thinner branches will move out, which may result in some areas having sparse growth or holes.
• Cut the top edge, according to taste, in a flat shape, roof shape or rounded shape (Fig. F).

• When trimming young plants to the required shape: The main growth should remain undamaged until the hedge has reached the planned height.

Cutting free-growing hedges

• Trim the hedge regularly so that it grows densely and does not become too high.

˜ Cleaning and care

RISK OF INJURY!

Always switch the product off, remove the battery pack [15] and let the product cool down before performing inspection, maintenance or cleaning works and before storage and transportation.

RISK OF ELECTRIC SHOCK!

→ Do not spray the product with water. Do not immerse the product in water.

RISK OF INJURY!

Wear gloves when handling the safety knife bar [2] to protect against cuts.

˜Cleaning

NOTE

→Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

• Never let fluids get into the motor housing [10].
• The product must always be kept clean, dry and free from oil or grease. Remove debris from the product after each use and before storage.
• Clean after each use.

Parts	Cleaning method
[2] Safety knife bar	Apply oil with an oil can or spray (Fig. I and Fig. K). Clean with an oily cloth.
[5] Front handle [6] Ventilation slots [8] Rear handle [10] Motor housing	Wipe down with a damp cloth (Fig. K). Clean with a brush.

Maintenancewww. lidl.de

• Before any maintenance:
  • Switch the product off.
  • Remove the battery pack [15].
  • Let the product cool down.
• Before every use: Check the product for defects such as loose, worn or damaged parts.
• Apply oil to the safety knife bar [2] by oil can or spray (Fig. I and Fig. K).
• Check that the screws in the safety knife bar [2] are tight.

RISK OF INJURY!
→ Do not try to install a safety knife bar yourself. Installing a knife safety bar shall only be done by a specialist.

• Any maintenance and repair other than described in this manual: Contact an authorised service centre or a similarly qualified person to check or repair the product. Only use original parts.

Troubleshooting

Problem	Possible cause	Action
Product does not start	Battery pack [15] is empty. Battery pack [15] is not properly inserted. Safety switch 4 ] not pressed properly.	Charge battery pack [15] (see "Charging the battery pack"). Insert battery pack [15] correctly (see "Removing/inserting the battery pack"). Switch the product on correctly (see "Switching the product on/ off").
Intermittent operation	Internal wiring is defective. The on/off switch [7] is defective.	Send the product to Service Centre for repair.
Safety knife bar gets too hot	Too much friction due to lack of lubrication.	Oil the safety knife bar [2].
The product cuts poorly	Too much friction due to lack of lubrication. The safety knife bar [2] is dirty. Suboptimal cutting technique.	Oil the safety knife bar [2]. Clean the safety knife bar [2]. Adjust cutting technique (see "Working instructions").

˜ Storage

• Before storage, always:
  • Switch the product off, remove the battery pack [15] and let the product cool down.
  • Clean the product (see "Cleaning and care").
  • Secure the safety knife bar [2] in the blade guard [12].
• Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
• Always store the product in a place that is inaccessible to children.
• The ideal long term storage (longer than 3 months) temperature is between +20 and +26°C.

The product can be stored by suspension from the wall.

RISK OF ELECTRIC SHOCK!

When drilling, be careful not to damage any supply lines. Use suitable search devices to find these or consult an installation plan for guidance. Contact with electrical cables can lead to electric shock and fire. Contact with a gas pipe can result in an explosion.

• Using the motor housing suspension [11]:

1. Fix a screw with a screw head diameter of 8 to 10 mm at the desired position on a suitable wall.
2. If the wall consist of bricks, stone or a similar material: Use a dowel to secure the screw.
3. Let the screw head protrude from the wall by approx. 10 mm.
4. Slide the motor housing suspension over the screw to suspend the product.

• Using the blade guard suspension [13]:

1. Fix 2 screws with a screw head diameter of 5 to 6 mm at the desired position on a suitable wall. The center to center distance between the 2 screws should be 17 mm.
2. If the wall consist of bricks, stone or a similar material: Use dowels to secure the screws.
3. Let the screw heads protrude from the wall by approx. 10 mm.
4. Slide the blade guard suspension over the screws to suspend the product.

Battery pack advice

• Only store the battery pack [15] partially charged. The battery pack should be charged to 40 to 60% before storing for extended periods.
• Check the battery pack charge about every 3 months when storing for extended periods. Recharge as necessary.

˜ Transportation

• Before transportation:

1. Switch the product off.
2. Remove the battery pack [15].
3. Let the product cool down.
4. Fit the blade guard [12].

• Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
• Secure the product to prevent it from slipping or falling over.

Service

Service Great Britain
Tel.: 08000569216
E-Mail: owim@lidl.co.uk
