Parkside PPHSA 40-Li B2 Manual

Introduction

Proper use

This device is only intended for the following use:

• Cutting and trimming hedges, bushes and ornamental shrubs.

The device is intended for use by adults. Children under the age of 16 may not use the device, except under supervision.
Use of the device in the rain or a damp environment is prohibited.
Any other use that is not expressly permitted in this instruction manual may pose a serious hazard to the user and result in damage to the device. The operator or user of the machine is responsible for any accidents or personal injury and/or material damage to third parties or their property. The machine is intended to be used by do-it-yourselfers. It was not designed for heavy commercial use. The warranty is void in the case of commercial use. The manufacturer is not liable for damage caused by improper use or incorrect operation.
The device is part of the X 20 V TEAM series and can be operated with batteries of the X 20 V TEAM series. Batteries of the X 20 V TEAM series may only be charged using chargers of the X 20 V TEAM series.

Scope of delivery/accessories

Unpack the device and check that everything is present.
Dispose of the packaging material properly.

• Cordless Hedge Trimmer
• Encasing (13)
• Clippings collector (14)*
  * The clippings collector is placed in the box for the encasing on delivery.
• Translation of the original instructions

The rechargeable battery and charger are not included in delivery.

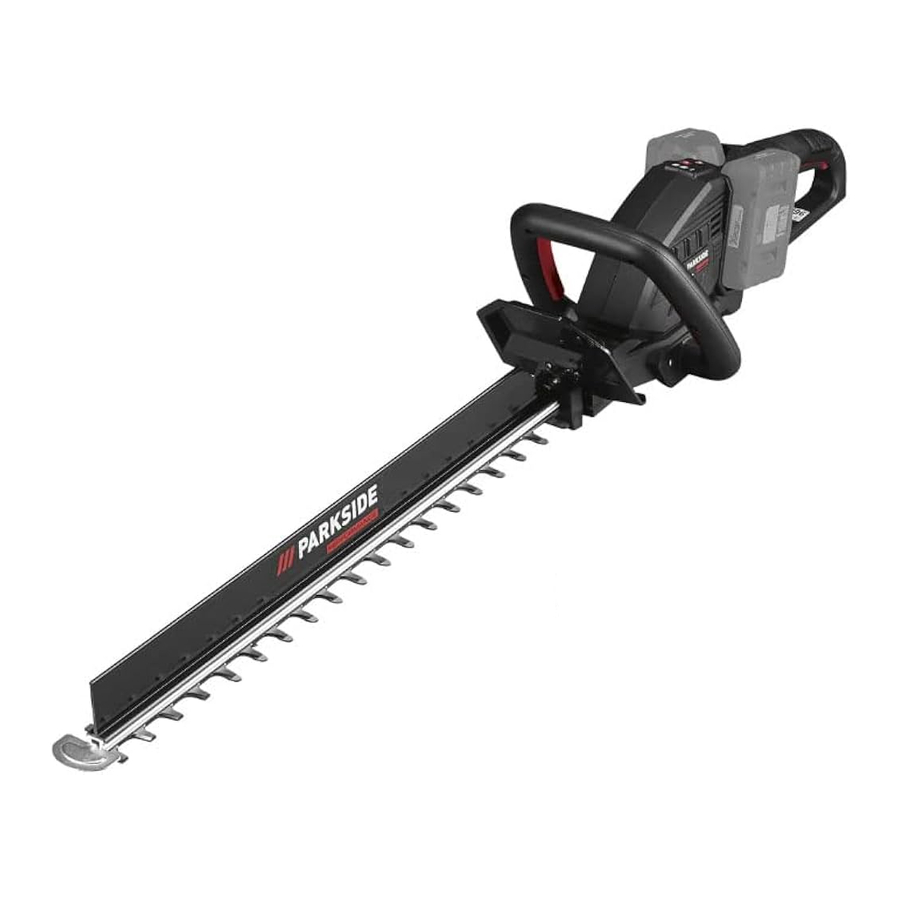

Overview

1. Stop protection
2. Safety cutter bar
3. Hand protection
4. Front handle
5. Operational control
6. Battery holder
7. On/Off switch
8. Handle
9. Battery
10. Battery release
11. Button Charge level indicator Battery
12. Charge level indicator
13. Encasing
14. Clippings collector
15. Charger
16. "Connected" indicator
17. Charge level indicator on the tool
18. Charge level indicator button on the device
19. Speed/Stroke rate button
20. Display (level)
    Fig. A

21. Safety switch
    Fig. B

22. Screw
    Fig. D

23. Keyhole

Description of functions

The cordless hedge trimmer features a high-quality knife made from special lasercut steel. When trimming, the cutting teeth move to and fro in a linear shearing motion. The strike guard at the tip of the knife prevents unpleasant kickback reactions when hitting walls, fences, etc. Operators are protected by the appliance's twohand safety switch and quick-stop brake function. The hand protection guards your hands against twigs and branches. The clippings collector clears the clippings from the hedge for horizontal cutting. Read the sections below to learn more about each operating element's function.

Technical data

Cordless Hedge Trimmer		PPHSA 40-Li B2
Rated voltage U		40 V ⎓ (2 x 20 V)
Weight with battery (2 × Smart PAPS 204)		≈4.6 kg
No-load rotation speed n0		2800 min-1
Stroke rate nmax		1800 min-1
Cutting movements	level 1	2000 min-1
	level 2	3000 min-1
	level 3	3600 min-1
Cutting length		≈580 mm
Blade length (including stop protection)		≈600 mm
Blade tooth spacing		≈24 mm
Branch diameter		≤19 mm
Sound pressure level (LpA)		82.4 dB; KpA =3 dB
Sound power level (LWA)	Guaranteed	96 dB
	Measured	93.4 dB; K WA =2.29 dB
Vibration (ah)		1.76 m/s²; K=1.5 m/s²
Battery		Li-Ion
Temperature		≤50°C
Charging		4–40°C
Operation		−20–50°C
Storage		0–45°C
PARKSIDE Performance Smart battery Smart PAPS 204 A1/Smart PAPS 208 A1
frequency band		2400–2483.5 MHz
transmitted power		≤20 dBm

Levels of noise and vibration were determined according to the standards and regulations in the declaration of conformity.
The specified total vibration value and the stated noise emission value have been measured according to a standardised test method and can be used to compare one power tool with another. The specified total vibration value and the stated specified noise emission value can also be used for a provisional assessment of the load.

The vibration and noise emissions may deviate from the specified values during actual use of the power tool, depending on how the power tool is being used. Try to keep the exposure to vibrations as low as possible. An example of a measure to reduce vibration exposure is limiting the working hours. All parts of the operating cycle have to be considered while doing so (for example, times when the power tool is switched off and times when it is switched on but running without any load).

Charging time
The device is part of the X 20 V TEAM series and can be operated with batteries of the X 20 V TEAM series. Batteries of the X 20 V TEAM series may only be charged using chargers of the X 20 V TEAM series.
We recommend that you operate this appliance with the following batteries only: PAP 20 B1, PAP 20 B3, Smart PAPS 204 A1, Smart PAPS 208 A1 We recommend charging these batteries with the following chargers: PLG 20 A3, PLG 20 A4, PLG 20 C1, PLG 20 C2, PLG 20 C3, PLG 201 A1, PDSLG 20 A1, PDSLG 20 B1, Smart PLGS 2012 A1
Rechargeable battery and charger technical data: See separate manual.
The charging time is influenced by factors such as the temperature of the environment and the battery, as well as the mains voltage applied, and may therefore deviate from the specified values.

Charging time (min.)	PAP 20 A1 PAP 20 A2 PAP 20 B1	PAP 20 A3 PAP 20 B3 Smart PAPS 204 A1	Smart PAPS 208 A1
PLG 20 A1 PLG 20 A4 PLG 20 C1	60	120	240
PLG 20 C2	45	80	165
PLG 20 A2 PLG 20 A3 PLG 20 C3 PDSLG 20 A1 PDSLG 20 B1	35	60	120
PLG 201 A1	135	250	500
Smart PLGS 2012 A1	35	45	50

Safety information

This section deals with the basic safety instructions for using the device.

Injury and property damage due to improper handling of battery. Observe the safety information and notes on charging and proper use as shown in the instruction manual for your battery and charger from the series X 20 V TEAM. A detailed description of the charging process and further information can be found in these separate operating instructions.

Meaning of the safety information

If you do not observe this safety instruction, an accident will occur.

The result of which is severe bodily injury or death.

If you do not observe this safety instruction, an accident may occur. The result of which is likely severe bodily injury or death.

If you do not observe this safety instruction, an accident will occur. The result of which is likely minor or moderate bodily injury.

NOTICE! If you do not observe this safety instruction, an accident will occur. The result of which is possible damage to property.

Pictograms and symbols

Symbols on the device
	Attention!
	Use eye protection
	Use hearing protection
	Use protective gloves
	Cutting hazard! Keep hands away.
	Use of the device in the rain or a damp environment is prohibited.
	Remove the battery before maintenance work.
	Guaranteed sound power level LWA in dB(A)
	"Connected" indicator
	Speed/Stroke rate button
	Display (level)
	Charge level indicator on the tool

General Power Tool Safety Warnings

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. WORK AREA SAFETY
   1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
   2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
   3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. ELECTRICAL SAFETY
   1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
   2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
   3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
   4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
   5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
   6. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. PERSONAL SAFETY
   1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
   2. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
   3. Prevent unintentional starting. Ensure the switch is in the offposition before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
   4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
   5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
   6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
   7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
   8. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4. POWER TOOL USE AND CARE
   1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
   2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
   3. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
   4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
   5. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
   6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
   7. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
   8. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. BATTERY TOOL USE AND CARE
   1. Recharge only with the charger specified by the manufacturer.
      A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
   2. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
   3.
      When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
   4.
      Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
   5. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
   6. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
   7. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
6. SERVICE
   1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
   2. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Product safety warnings

• Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
• Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will decrease the risk of inadvertent starting and resultant personal injury from the blades.
• When transporting or storing the hedge trimmer, always fit the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades.
• When clearing jammed material or servicing the unit, make sure all power switches are off and the battery pack is removed or disconnected. Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury.
• Hold the hedge trimmer by insulated gripping surfaces only, because the blade may contact hidden wiring. Blades contacting a "live" wire may make exposed metal parts of the hedge trimmer "live" and could give the operator an electric shock.
• Keep all power cords and cables away from cutting area. Power cords or cables may be hidden in hedges or bushes and can be accidentally cut by the blade.
• Do not use the hedge trimmer in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.

Additional safety instructions for hedge trimmers

• Wear personal protective equipmentfor your own safety:

  • Use eye protection
  • Use hearing protection
  • Use protective gloves
• Wear suitable work clothing, such assolid shoes with non-slip soles as well as long, robust trousers.
• Do not wear long clothing or jewellery, as it can become jammed in the moving parts.
• Never use the device barefooted orwearing open sandals.
• The device is intended for use byadults. Children under the age of 16 may not use the device, except under supervision.
• The device is intended for trimming hedges. Do not cut branches, hard wood or anything else with the device. The device could become damaged.
• When working, always hold the device firmly with both hands and away from your body. This will help you to have better control of the device in unexpected situations.
• Always wear appropriate protective equipment and work gloves while working with the device. Never hold or pick up the device by the cutting blade. Contact with the cutting blade can lead to injuries.
• Do not use the device near flammable liquids or gases. In the event of a short circuit there is a risk of fire and explosion.
• Always make sure that the device isproperly in one of the specified working positions before starting the device.
• The blades must be checked regularly for wear and reground. Blunt blades overload the device. Any damage that results is not covered by the warranty.
• Switch off the device and remove thebattery (9). Make sure that all moving parts have come to a complete stop
  • when leaving the device
  • before removing obstructions orloosening blockages
  • before checking the device, clean-ing it or performing maintenance work on it
• If the cutting unit touches a foreign ob-ject or the device starts to vibrate abnormally, an immediate inspection is required:
  • examine for loose parts and tightenthese
  • search for signs of damage
  • replace damaged parts with equi-valent ones or have the device repaired.
• Do not try to repair the device by yourself unless you have professional training. All work not mentioned in this instruction manual may only be performed by our service centre. Many accidents are caused by poorly maintained appliances.
•
  Only use accessories recommended by PARKSIDE. Unsuitable accessories may cause electric shock or fire.

Residual risks

There will always be residual risks even if you operate this power tool according to the instructions. The following hazards may occur in connection with the type and design of this power tool:

• Eye damage if no suitable eye protec-tion is worn.
• Hearing damage if suitable ear protec-tion is not worn.
• Health injuries resulting from the effectof hand/arm vibration in the event that the tool is used over a longer period of time or is not used and maintained properly.
• Cutting injuries

Danger due to electromagnetic field generated while the tool is in operation. Under certain circumstances, this field may negatively affect active or passive medical implants. In order to reduce the danger of serious or fatal injuries, we recommend that individuals who wear medical implants should consult their doctor and the manufacturer of the implant before operating the machine.

Preparation

Risk of injury due to unintentional start-up. Only insert the rechargeable battery into the device once the device is fully prepared for use.

Wall bracket

You can hang the motor part on the wall with the keyhole (23) on the bottom of the device.

Tools and aids required

• Screw (screw head: ⌀ 8-10 mm)
• Corresponding screwdriver
• Dowels, if necessary

Attaching the wall bracket

Personal injury or damage to property during drilling. Use suitable detectors to determine if there are hidden supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to explosion. Breaking water pipes causes property damage.

• Using dowels, place one screw at thedesired position on a wall.
• Let the screw head protrude with ca.10 mm mm distance to the wall.
• Make sure that the suspension system isdesigned for the weight of the device.
• (Fig. D) You can place the device withthe keyhole (23) against the screw and pull the device down as far as it will go.

Control elements

Familiarise yourself with the operating elements before using the device for the first time.

• Charge level indicator button on the device (18)
  • Displaying the charge level of thebattery
  • After inserting smart batteries: see Connecting the device to the Parkside app,
• "Connected" indicator (16)
  Status of the connection with the PARKSIDE app
  flashing connection attempt
  continuous light connection established
• Speed/Stroke rate button (19)
  • Toggles the stroke rate level
    1. ≙ 1000 min^-1
    2. ≙ 1500 min^-1
    3. ≙ 1800 min^-1
• Display (level) (20)
  Displays the set stroke rate level
  1. ≙ 1000 min^-1
  2. ≙ 1500 min^-1
  3. ≙ 1800 min^-1

1 2 3 ≙ rotational speed/stroke rate is set in the PARKSIDE app (Expert Mode).

• On/Off switch (7)
  • Switching on: Press and hold togeth-er with the safety switch (21).
  • Switching off: Release the on/offswitch (7) or the safety switch (21).
• Safety switch (21)
  Ensures two-handed operation.

Attaching/removing the clippings collector

With the clippings collector in place, remove the clippings from the hedge at horizontal cuts towards the user. This makes it easier to collect the clippings.

Attaching the clippings collector

1. First slide the clippings collector (14) with the angled edge onto the safety cutter bar (2).

Removing the clippings collector

1. Pull the clippings collector (14) forwards off the safety cutter bar (2).

Checking the battery charge level

LEDs	Meaning
red, orange, green	Battery charged
red, orange	Battery partially charged
red	Battery needs to be charged

1. Press the button (11) next to the charge level indicator button (12) on the battery (9).
   The LEDs of the charge level indicator show how much charge remains in the battery.
2. Charge the battery (9) when only the red LED on the charge level indicator (12) is illuminated.

Charging the battery

See also the charger instruction manual.

Notes

• If warm, allow the battery to cool be-fore charging.
• Do not expose the battery to direct sun-light for long periods and do not place it on a radiator (max. 50°C).

Charging the battery

1. Remove the battery (9) from the device.
2. Push the battery (9) into the charging slot of the battery charger (15).
3. Connect the battery charger (15) to a power outlet.
4. After charging, disconnect the battery charger (15) from the mains.
5. Pull the battery (9) out of the battery charger (15).

Control LEDs on the charger (15):
green	red	Meaning
lights up	—	Battery is fullycharged stand-by (Nobattery inserted)
—	lights up	Battery is charging
—	flashes	Battery is overheated
flashes	flashes	Battery is defective

Operation

Working with the device

Risk of injury! Pay attention to the following instructions.

• NOTICE! Damage to the safety cutter bar (2). While cutting, make sure that you do not touch any objects, such as wire fences or plant supports.
• Always wear sturdy shoes, longtrousers, ear protection, work gloves and protective goggles when operating the device.
• The device is only intended for workwhere you are standing on the ground and not on a ladder or other unstable surface.
• Do not use the device if a switch isdamaged.
• If the safety cutter bar (2) becomesjammed with solid objects, switch the device off immediately and remove the batteries. Only then should you remove the object.
• Avoid over-stressing the device whileworking.

Cutting techniques

• Cut out thick branches in advance us-ing lopping shears.
• The double-sided safety cutter bar (2)enables trimming in both directions, or via pendulum movements from one side to the other.
• When cutting vertically, move thehedge trimmer in a steady forward motion, or up and down in an archshaped motion.
• When cutting horizontally, move thehedge trimmer in a sickle-shaped motion to the edge of the hedge so that cut branches fall to the ground.
• We recommend tying cords to achievelong, straight lines.

Trimming shaped hedges (Fig. C)
It is advisable to trim hedges in a trapezoidal shape to prevent the lower branches from becoming bare. This corresponds to the plant's natural growth and allows hedges to thrive optimally. Only the new annual shoots are reduced during cutting to allow dense branching and good protection of privacy.

1. First trim the sides of the hedge. To do so, move the hedge trimmer from bottom to top in the direction of growth. If you cut downwards, thinner branches will move outwards which may cause thin patches or gaps.
2. Then trim the top edge as desired: straight, pitch-shaped or round.
3. Trim plants while young to achieve the desired shape. The main shoot should be left intact until the hedge has achieved the intended height. All other shoots are to be cut in half.

Cutting free-growing hedges
Free-growing hedges are not be trimmed into shapes but still need to be regularly cut to ensure they do not become too tall.

Before operation

Carry out the following steps before each operation. This will guarantee long and reliable use.

• Search the hedges and bushes for for-eign objects, e.g. wire fences and hidden wires.
• Check the device before each use forobvious defects such as loose, worn or damaged parts. Ensure that the screws in the safety cutter bar (2) are firmly in place.
• Do not cut with a dull or worn safetycutter bar (2), otherwise you will overload the motor and gears of your device.
• Check the covers and protectivedevices for damage and correct fit.
  • Stop protection (1)
  • Hand protection (3)

Spare parts and accessories

Inserting and removing the battery

Risk of injury due to unintentional start-up. Only insert the rechargeable battery into the device once the device is fully prepared for use.

NOTICE! Risk of damage! An incorrect battery can damage the device and battery.

Inserting the batteries

1. Push the two batteries (9) along the guide into the battery holder (6). You will hear the batteries click into place.

Removing the batteries

1. Press and hold the battery release (10) on the battery (9).
2. Pull the batteries out of the battery holder (6).

Setting the stroke rate

Procedure

• Press the stroke rate button (19) to set the corresponding stroke rate.

The relationship between the number 1 2 3 on the display (level) (20), the stroke rate per minute and the cutting movements per minute is shown in the following table.

level	1	2	3
Stroke rate	1000 min-1	1500 min-1	1800 min-1
Cutting movements	2000 min-1	3000 min-1	3600 min-1

Switching on and off

Notes

• The device may only be used with twobatteries.
• Remove the encasing (13) from thesafety cutter bar (2) before switching on the device.
• The on/off switch (7) and the safetyswitch (21) must not be locked. The motor must be switched off when the switch has been released.

Switching on

Personal injury or damage to the device! Ensure your stance is stable and hold the device tightly with both hands and away from your body.

1. Remove the encasing (13).
2. Make sure that the batteries (9) are inserted.
3. Always hold the device with both hands: One hand on the handle (8) and the other hand on the front handle (4).
4. Press the safety switch (21) on the front handle (4).
5. NOTICE! Before switching the device on, make sure that it is not touching any objects.
   Press and hold the safety switch (21) on the front handle (4) while pressing the On/Off switch (7) on the handle (8).
   The device runs at the lowest speed. For setting the speed, refer to the section "Setting the stroke rate".

Switching off

1. Release one of the two switches.
2. Wait until the power tool has stopped before placing it down.
3. Remove the rechargeable battery (9) from the device if you are leaving the device unattended or if you have finished working.

Checking the charge status of the battery in the device

1. Press the button for the charge level indicator (18) on the operational control (5).
   The charge level of the battery is indicated by illumination of the corresponding LEDs on the charge level indicator (17).
   During operation, the charge level of the battery is permanently displayed on the charge level indicator on the device (17).
   Red amber and green → battery fully charged
   Red and amber → battery approx. half charged
   Red ⭢ battery needs to be charged
2. Charge the battery (9) when only the red LED on the charge level indicator on the device (17) is illuminated.

PARKSIDE app

The PARKSIDE app lets you monitor the device and control certain functions. The functions may change with updates to the app and firmware. For more information on the PARKSIDE app, see the instructions for the smart battery.

Requirements

To find the device in the PARKSIDE app, the following requirements must be met:

• The PARKSIDE app is installed on yoursmartphone and Bluetooth® is activated.
• The following battery is inside thedevice: PARKSIDE Performance Smart battery PAPS 204 A1 or PAPS 208 A1. This battery is already connected to the PARKSIDE app.
  The device communicates with the app via the battery.

Connecting the device to the PARKSIDE app

1. Insert the smart batteries (9).
2. Press the charge level indicator button on the tool (18).
   The "Connected" display (16) flashes three times. When the device is connected, the "Connected" indicator lights up continuously.
3. Open the PARKSIDE app.
4.
   The device is displayed in the list. If the device does not appear in the list, add the device manually.

Monitoring and controlling the device

2. Select the device from the list.
   The device overview page is displayed.
3. Select the desired setting on the overview page.
   Select help if you are unsure.
   A dialogue box with a description for the relevant setting is displayed.

Transport

Notes

• Switch off the device and remove thebatteries (9). Make sure that all moving parts have come to a complete stop.
• Always transport the hedge trimmerwith the encasing (13).
• Always carry the device by the handle (8).

Cleaning/maintenance and storage

Risk of injury due to unintentional start-up. Protect yourself when performing maintenance or cleaning work. Switch off the device and remove the batteries (9).

You should have any repair and maintenance work that is not described in these instructions carried out by our Service Centre. Only use original replacement parts.

Cleaning

Electric shock! Never spray down the device with water.
NOTICE! Risk of damage. Chemical substances may attack the plastic parts of the machine. Do not use any cleaning agents or solvents.

• Keep the ventilation slits, motor housing and handles of the machine clean. Use a damp cloth or brush to do this.

Cleaning and maintaining the safety cutter bar

Tools and aids required

• Cloth
• Care oil spray

Care after each use

• Remove any green cuttings that arestuck.
• Clean the safety cutter bar (2) with anoily cloth.
• Maintain the safety cutter bar (2) witha care oil spray.

Maintenance

• Check the device before each use forobvious defects such as loose, worn or damaged parts. Ensure that the screws in the safety cutter bar (2) are firmly in place.
• Check the covers and protectivedevices (1/3) for damage and correct fit. Replace these if necessary or have them repaired by the service centre.
• You can smooth out slight nicks on thecutting teeth yourself. To do this, pull off the cutting edges with an oil stone. Only sharp cutting teeth provide a good cutting performance.
• Blunt, bent or damaged safety cutterbars must be replaced.

Have any work that is not described in this instruction manual performed by our service centre. Only use original parts.

Tools and aids required

• Hand protection (3, Spare parts and accessories)
• Phillips screwdriver (not included)

Replacing the hand protection

(Fig. B)

1. Loosen the two screws (22) on the hand protection (3) with a screwdriver.
2. Replace the damaged hand protection (3).
3. Fasten the new hand protection (3) with the two screws (22).

Storage

Always store the device and accessories:

• clean
• dry
• protected against dust
• with encasing (13) over the safety cut-ter bar (2)
• out of the reach of children

The storage temperature for the battery and the device is between 0°C and 45°C. Avoid extreme cold or heat during storage to ensure the battery output is not adversely affected.
Remove the batteries from the device before storing the device (see the separate operating instructions for the battery and charger).

Troubleshooting

The following table will assist you in fixing faults:

Problem	Possible cause	Error correction
Device does not start	Rechargeable battery (9) not inserted	See Inserting the batteries
	Rechargeable battery (9) discharged	Charge the battery (see the separate operating instructions for the rechargeable battery and charger)
	Safety switch (21) or On/ Off switch (7) defective.	contact the service centre.
	Defective motor
Device works with interruptions	Internal loose contact	contact the service centre.
	Safety switch (21) or On/ Off switch (7) defective.
Safety cutter bar becomes hot	Safety cutter bar (2) blunt	Have the safety cutter bar sharpened or replaced (service centre)
	Nicks on safety cutter bar (2).
	Too much friction due to lack of lubrication	Lubricate the safety cutter bar (2)
Bad cutting results	Too much friction due to lack of lubrication	Lubricate the safety cutter bar (2)
	Safety cutter bar (2) blunt	Have the safety cutter bar sharpened or replaced (service centre)
	Safety cutter bar dirty	Clean the safety cutter bar
	Bad cutting technique	See Cutting techniques

Service

Service Centre

Service Great Britain
Tel.: 0800 404 7657
E-mail: grizzly@lidl.co.uk
IAN 445976_2307

Service Malta
Tel.: 80062230
E-mail: grizzly@lidl.com.mt
IAN 445976_2307

Importer

Please note that the address below is not a service address. Contact the service centre named above first.
Grizzly Tools GmbH & Co. KG
Stockstädter Str. 20
63762 Großostheim
GERMANY
www.grizzlytools.de

Spare parts and accessories

You can get spare parts and accessories from www.grizzlytools.shop.
If you have any problems with your order, contact us via our online shop. If you have any other questions, contact the Service Centre.

Pos. nr.	Name	Order No.
3	Hand protection	91106189
13	Encasing	91106190
14	Clippings collector	91106191

Documents / Resources

References

• Grizzly Tools | Werkzeuge, Gartengeräte, Reinigungsgeräte & mehr
• http://www.grizzlytools.shop

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Parkside PPHSA 40-Li B2 Manual
