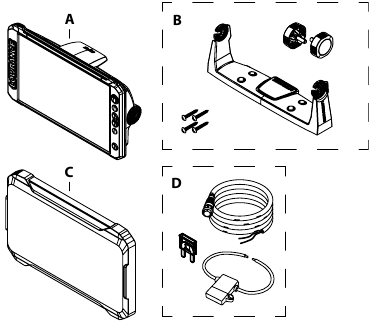

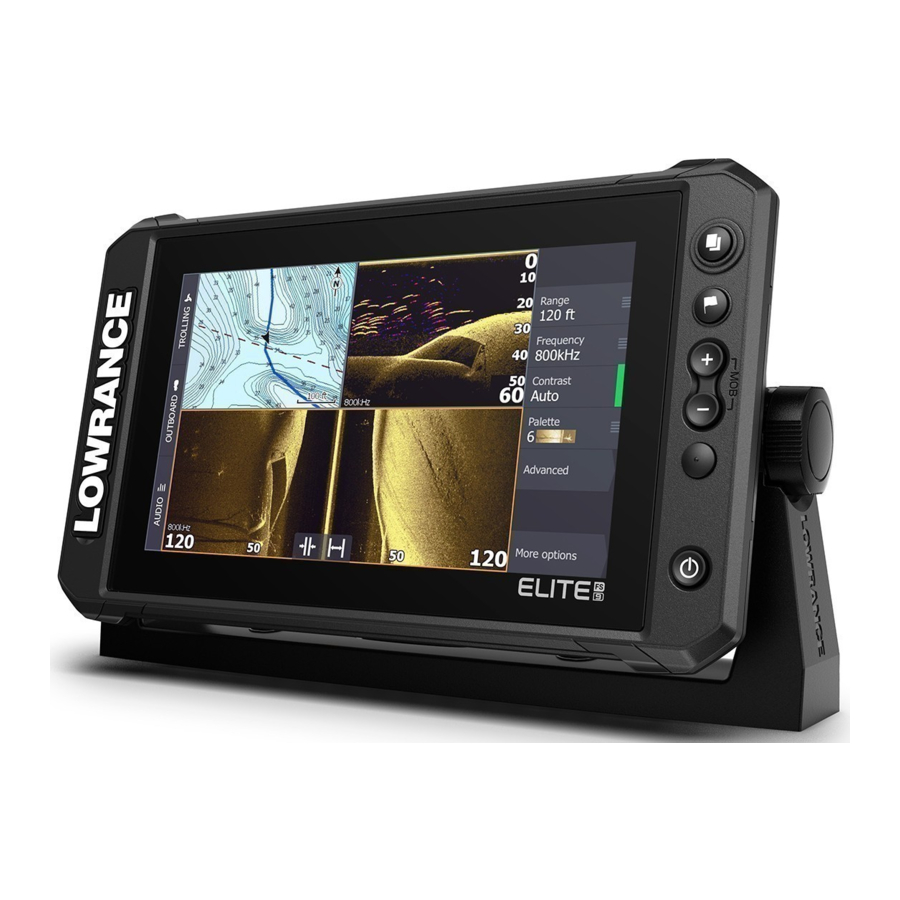

In the box
- Elite FS ® unit
- Gimbal bracket kit
- Sun cover
- Power cable kit

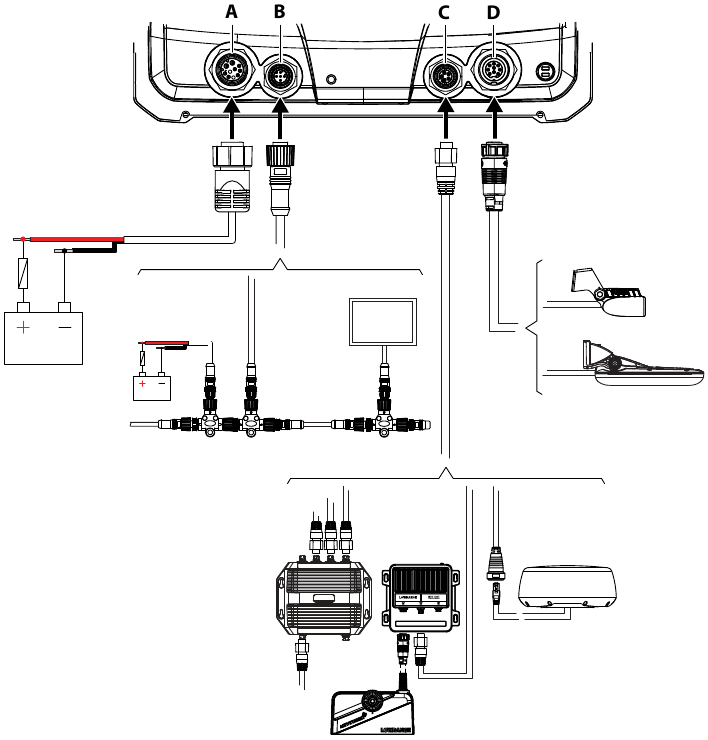

Wiring
This wiring diagram shows connection examples. Accessories and additional devices are sold separately.
Power, 10-pin connector (A)
The unit is designed to be powered by 12 V DC. It is protected against reverse polarity, under voltage and over voltage (for a limited duration). A fuse or circuit breaker should be fitted to the positive supply.
| Wire color | Purpose |
| Red | + 12 V |
| Black | DC negative |
NMEA 2000®, Micro-C connector (B)
The NMEA 2000 ® data port enables the receiving and sharing of data from various sources.
Ethernet, 5-pin connector (C)
Ethernet interconnects high bandwidth devices such as radar, sonar modules, and other displays. Connection of network devices can be made directly to the Ethernet port, or via a network expansion device.
Sonar, 9-pin connector (D)
A 7-pin transducer cable can be connected to a 9-pin port using a 7-pin to 9-pin adapter cable. However, if the transducer has a paddle wheel speed sensor, waterspeed data won't display on the unit.
Supports:
- Sonar / CHIRP sonar
- DownScan / SideScan
- Active Imaging™ / Active Imaging™ 3-in-1
- TotalScan® / StructureScan®
- LiveSight™ via PSI-1
Note: ActiveTarget ® transducers are supported via its external module connected to the Ethernet network.

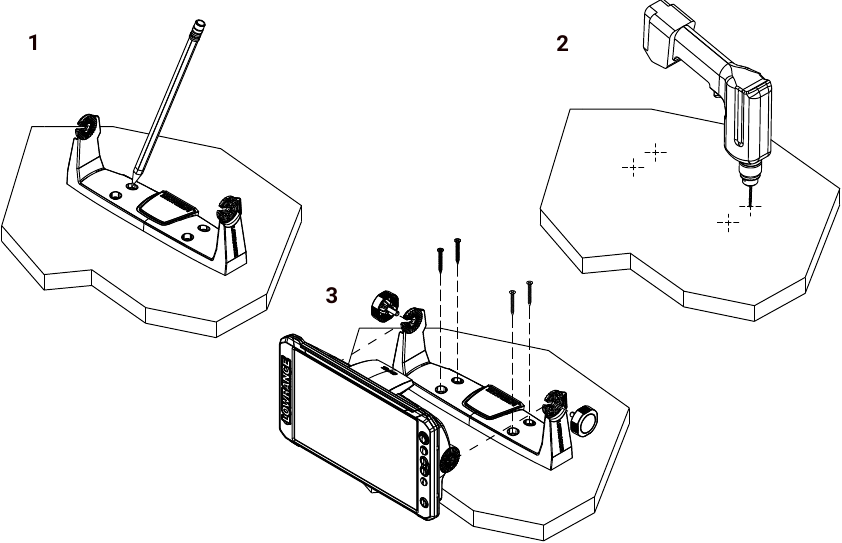

Gimbal bracket mounting
Dimensions

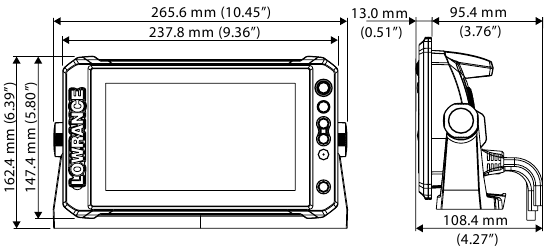

7" unit

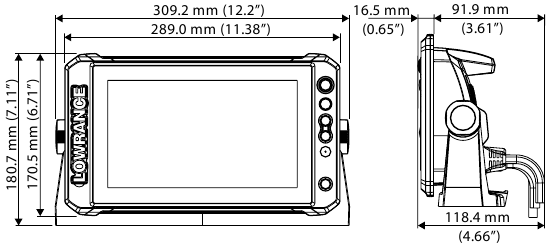

9" unit
Technical specifications
| 7" | 9" | |
| Environmental | ||
| Operating temperature range | -15°C to +55°C (5°F to 131°F) | |
| Storage temperature | -20°C to +60°C (4°F to 140°F) | |
| Waterproof rating | IPX6 and IPX7 | |
| Electrical | ||
| Supply voltage | 12 V DC (10 - 17 V DC min - max) | |
| Fuse rating | 3 A | |
| Power consumption (maximum) | 28 W (2 A at 13.8 V DC) | |
| Display | ||
| Resolution | 800 x 480 pixels | |
| Viewing angles in degrees | 50° top, 60° bottom 70° left and right | |
| Brightness | > 1200 nits | |
| Touch screen | Multitouch | |
| Physical | ||
| Weight (display only) | 0.9 kg (1.9 lbs) | 1.2 kg (2.7 lbs) |
| Compass safe distance | 0.5 m (1.6 ft) | |
| Interface/Connectivity | ||
| NMEA 2000 ® | 1 port (Micro-C connector) | |
| Data card reader | 1x slot (microSD, SDXC) | |
| Ethernet | 1 port (5-pin Ethernet connector, 100Base-T) | |
| Sonar | 1 port (9-pin connector) | |
| Wi-Fi ® internal | 802.11b/g/n | |
| Bluetooth ® | 4.0 with support for Bluetooth® Classic | |
| GPS | 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS | |
