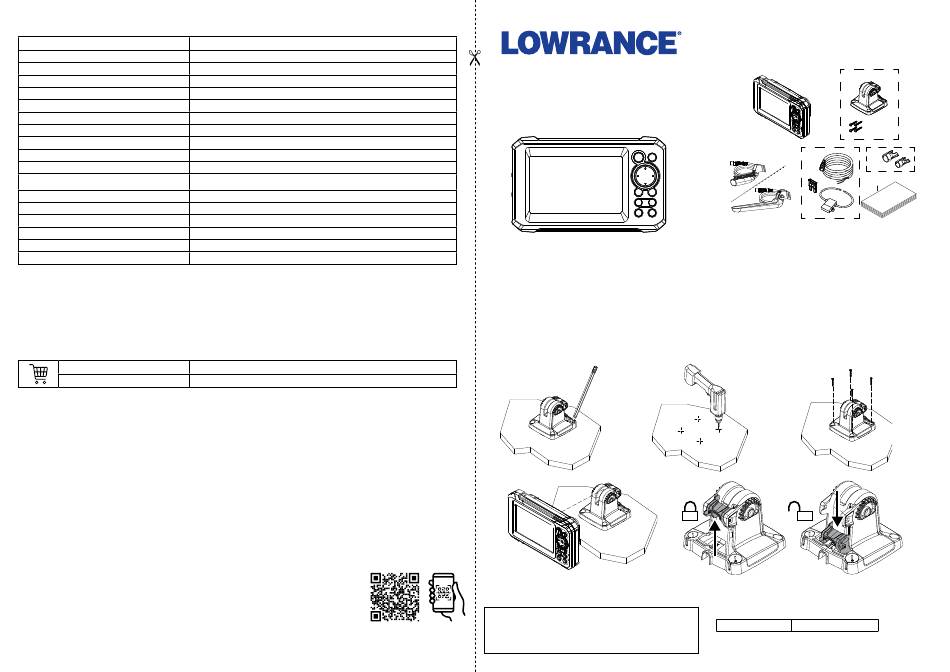

Lowrance EAGLE 5 Installation Manual

Technical specifications
Display
Resolution
Viewing angles in degrees
Electrical
Supply voltage
Power consumption (max)
Recommended fuse rating
Environmental
Operating temperature range
Storage temperature
Waterproof rating
Interface/Connectivity
Sonar
Card reader
Physical
Dimensions
Weight (display only)
Mounting type
Accessories
The following accessories are sold separately and available from your local retailer.
Suncover
Dash gasket kit
Trademarks
®Reg. U.S. Pat. & Tm. Off, and ™ common law marks.
Visit www.navico.com/intellectual-property to review the global trademark rights and accreditations for Navico Group and
other entities.
Navico is a trademark of Navico Group.
• ®
Lowrance is a trademark of Navico Group.
• ®
• EAGLE is a trademark of Navico Group.
®
• SD and microSD are trademarks of SD-3C, LLC.
® ®
©2024 Navico Group. All Rights Reserved. Navico Group is a division of Brunswick Corporation.
800 x 480
80° top/bottom/left/right
12 V DC (10.8 - 18 V DC)
3.48 W (290 mA at 12 V DC)
3 A
-15°C to 55°C (5°F to 131°F)
-20°C to 60°C (4°F to 140°F)
IPX7
1 port (SplitShot and TripleShot compatible)
1 slot (microSD 32 GB maximum)
®
Refer to dimensions section in this document
0.46 kg (1.01 lb)
Panel mount or gimbal mount
000-16249-001
000-16253-001
www.lowrance.com
EAGLE 5
®
Installation Guide
and Mounting Template
*988-13185-001*
Gimbal mounting
1
4
⚠
WARNING: Always wear appropriate eyewear, ear
protection, and dust mask when drilling, cutting, or
sanding. Remember to check the reverse side of all
surfaces whenever drilling or cutting.
In the box
A B
C D
A EAGLE 5 display unit
B Gimbal kit
C SplitShot or TripleShot skimmer transducer
D Power cable kit
E Cable lock collars
F Documentation pack
2 3
A B
Recommended pilot holes
Soft/hard materials Ø 3.8 — 4.8 mm (3/16")
E
F
