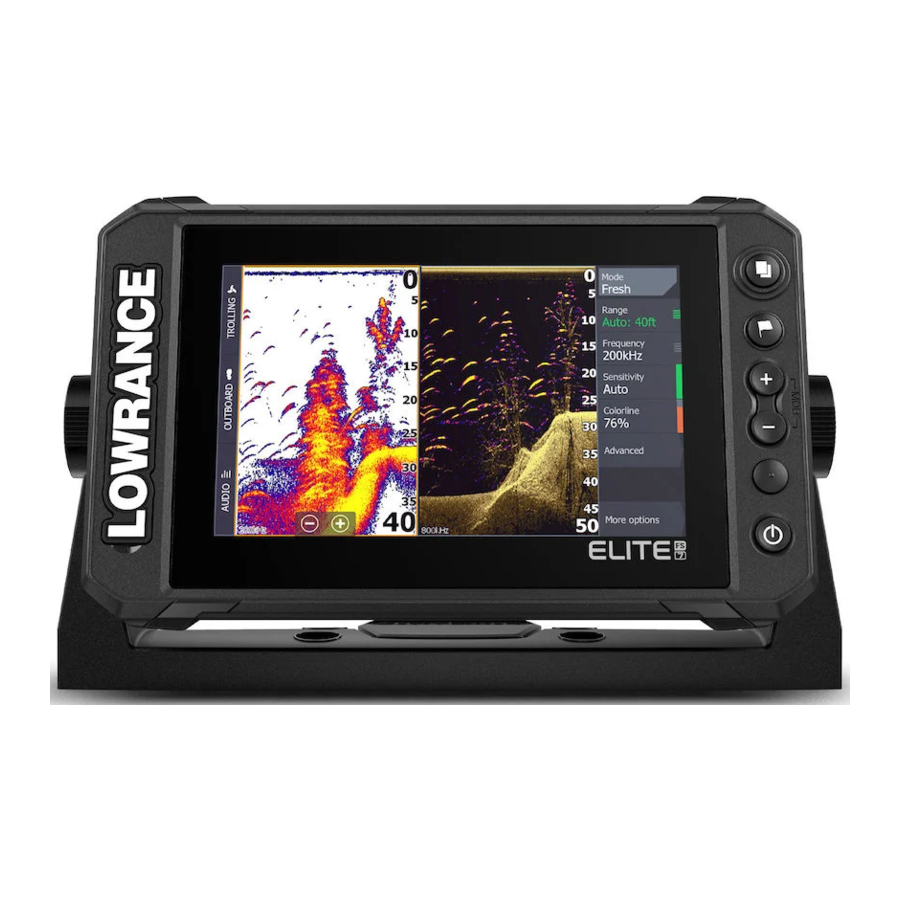

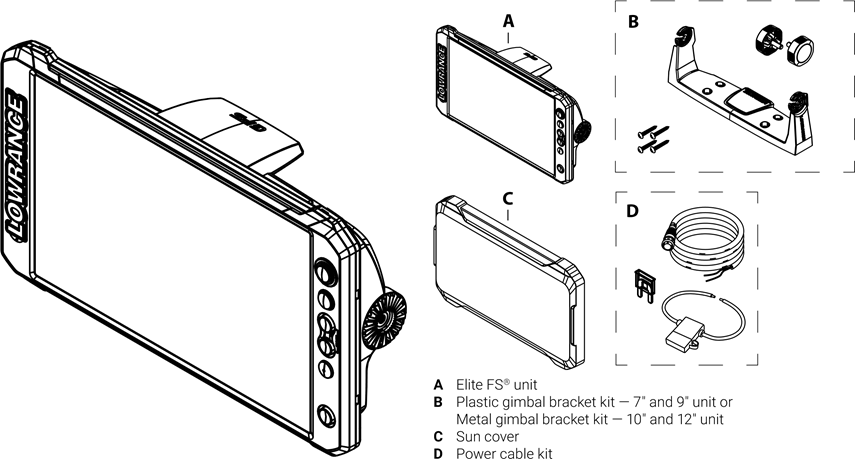

In the box

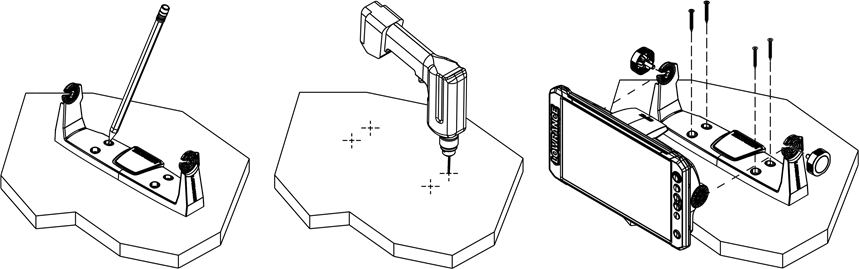

Gimbal bracket mounting
Always wear appropriate eyewear, ear protection, and dust mask when drilling, cutting, or sanding. Remember to check the back side of all surfaces whenever drilling or cutting.
Wiring

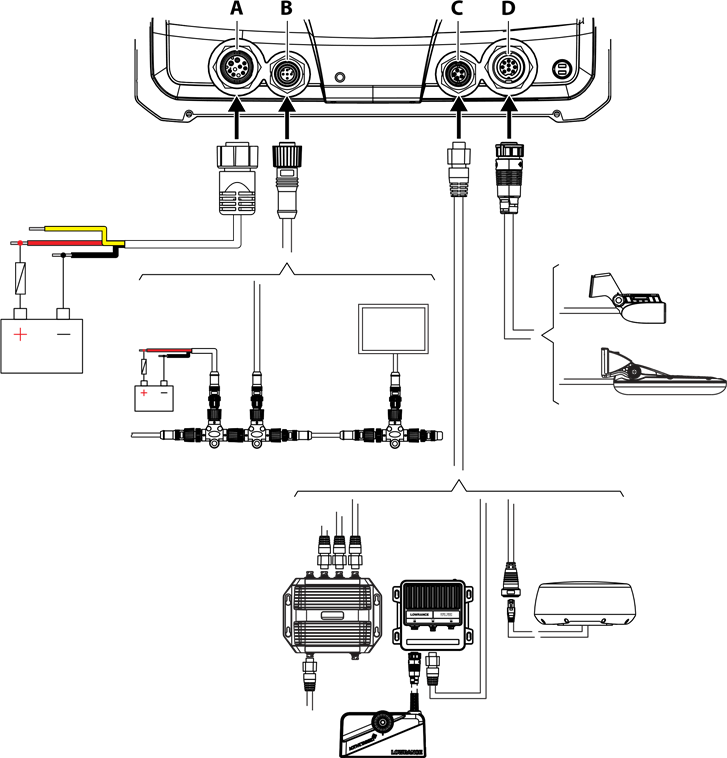

This wiring diagram shows connection examples. Accessories and additional devices are sold separately.
Power, 10-pin connector (A)
The unit is designed to be powered by 12 V DC. It is protected against reverse polarity, under voltage and over voltage (for a limited duration). A fuse or circuit breaker should be fitted to the positive supply.
| Wire color | Purpose |
| Red | + 12 V |
| Black | DC negative |
| Yellow | Wake up |
NMEA 2000®, Micro-C connector (B)
The NMEA 2000® data port enables the receiving and sharing of data from various sources.
Ethernet, 5-pin connector (C)
Ethernet interconnects high bandwidth devices such as radar, sonar modules, and other displays. Connection of network devices can be made directly to the Ethernet port, or via a network expansion device.
Sonar, 9-pin connector (D)
A 7-pin transducer cable can be connected to a 9-pin port using a 7-pin to 9-pin adapter cable. However, if the transducer has a paddle wheel speed sensor, water-speed data won't display on the unit.
Supports:
- Sonar / CHIRP sonar
- DownScan / SideScan
- Active Imaging™ / Active Imaging™ 3-in-1
- TotalScan® / StructureScan®
- LiveSight™ via PSI-1
Note: ActiveTarget® transducers are supported via its external module connected to the Ethernet network.

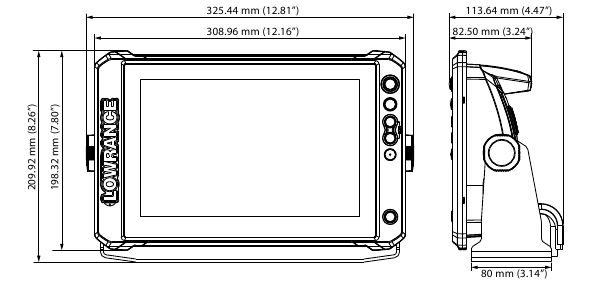

7" unit

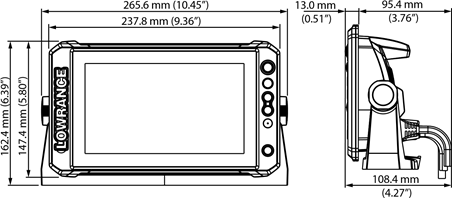

9' unit

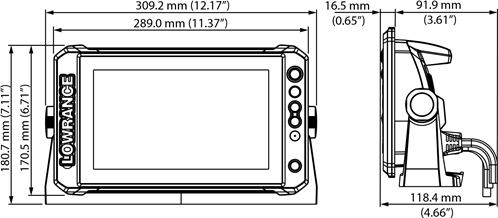

10' unit

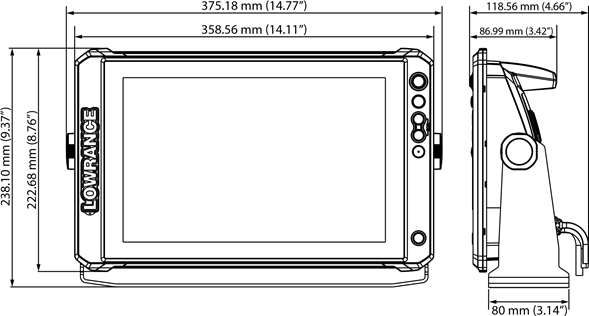

12' unit
Technical specifications
| 7' | 9' | 10' | 12' | |
| Environmental | ||||
| Operating temperature range | -15°C to 55°C (5°F to 131°F) | |||
| Storage temperature | -20°C to 60°C (4°F to 140°F) | |||
| Waterproof rating | IPx6 and IPx7 | |||
| Electrical | ||||
| Supply voltage | 12 V DC (10.8 - 17 V DC min - max) | |||
| Fuse rating | 3 A | |||
| Power consumption (maximum) | 28 W (2 A at 13.8 V DC) | 34.5 W (2.5 A at 13.8 V DC) | ||
| Display | ||||
| Resolution | 800 x 480 | 1280 x 800 | ||
| Viewing angles in degrees | 50° top, 60° bottom, 70° left/right | 85° top/bottom, 85° left/right | ||
| Brightness | > 1200 nits | |||
| Touch screen | Multitouch | |||
| Physical | ||||
| Weight (display only) | 0.9 kg (2 lbs) | 1.2 kg (2.7 lbs) | 1.6 kg (3.5 lbs) | 2.3 kg (5.1 lbs) |
| Compass safe distance | 0.5 m (1.6 ft) | 65 cm (2.1 ft) | ||
| Interface/Connectivity | ||||
| NMEA 2000® | 1 port (Micro-C connector) | |||
| Data card reader | 1x slot (microSD®, SDXCTM) | |||
| Ethernet | 1 port (5-pin Ethernet connector, 100Base-T) | |||
| Sonar | 1 port (9-pin connector) | |||
| Wi-Fi® internal | 802.11b/g/n | |||
| Bluetooth® | 4.0 with support for Bluetooth® Classic | |||
| GPS | 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS | |||
