Lowrance EAGLE EYE Quick Start Manual

EAGLE EYE™
Quick start guide

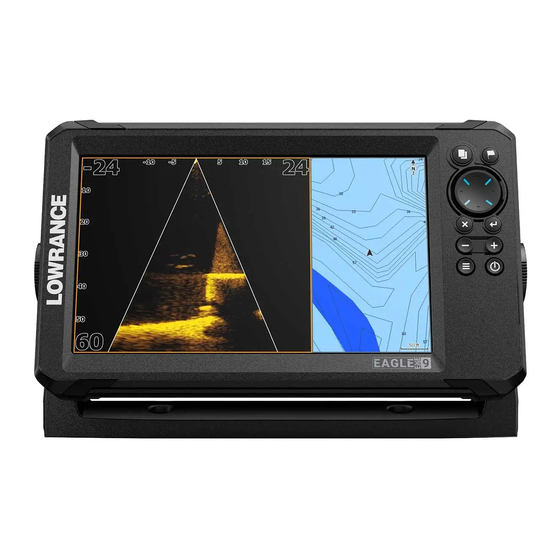

This document describes the basic controls of the Lowrance Eagle Eye™ multi-function display (MFD). For the latest version of
this document and the full operator manual, visit: www.lowrance.com/downloads/eagle.
Note: Refer to the enclosed Installation Manual before you turn on the unit.
¼
Physical control keys
A
B
C
D
E
F
G H
Card reader
Carefully slide a microSD
®
side of the device. To remove the microSD
the card.
A Pages
• Press to activate the home screen.
B Waypoint
• Press to open the new waypoint dialog.
• Press twice to save a waypoint.
• Press and hold to access the find dialog.
C Arrows
On full screen pages:
• Press to position the cursor.
• Press to pan the image in any direction.
On multi-panel pages:
• Press to select a panel.
On menus:
• Press to navigate.
D Exit
On a maximized, multi-panel page:
• Press to return to the multi-panel page.
In menus and dialogs:
• Press to return to the previous menu
level and to exit a dialog.
into the card reader slot on the
card, gently pull
®
E Enter
On multi-panel pages:
• Press to maximize the currently
selected panel.
In menus and dialogs:
• Press to confirm a selection.
F Zoom
• Press to zoom the image.
• Press both keys together to create a
crew overboard (MOB) waypoint at your
position.
G Menu
• Press to display the menu on full screen
pages.
H Power
• Press once to display the System
Controls dialog.
• Press and hold to power the unit on /off.
• Repeat short presses to cycle the
backlight brightness.
System controls
Press the power key once to view the System Controls dialog.
Note: The content of the System Controls dialog depends
¼
on connected equipment and the active panel.
An orange bar displays above active
options in the System Controls dialog.
