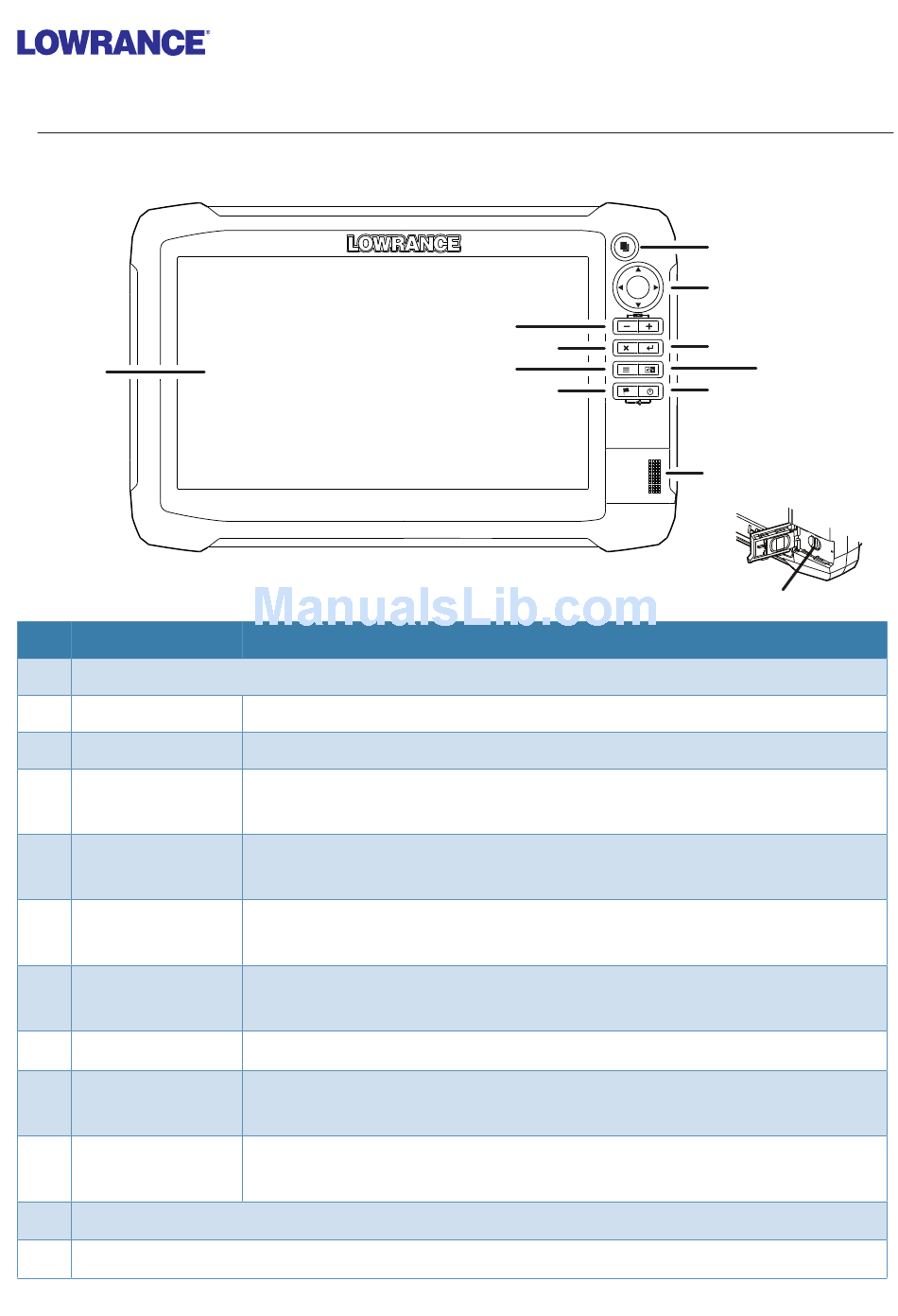

Overview
1
No. Key
1
Touch screen
2
Pages key
3
Cursor keys
Zoom out/
4
Zoom in keys
5
Exit (X) key
6
Menu key
7
Waypoint key
8
Enter key
9
Panel key
10
Power key
Card reader door
11
microSD card readers
12
HDS Gen3 Touch
Quick Start Guide
Function
Activates the home page
Pans the cursor, moves through menu items and adjusts values
Zooms the screen; press keys simultaneously to save a Man
Overboard (MOB) waypoint
Exits dialogs, returns user to the previous menu level and
removes the cursor from the screen
Activates the panel menu; press twice to access the Settings
menu; press and hold to hide the panel menu
Opens the new waypoint dialog; press twice to save a way-
point; press and hold to access the Find menu
Confirms selections and saves settings
Switches the active panel on a multiple-panel display; press
and hold to expand the active panel to a full-page panel
Opens the System Controls dialog, adjusts the backlight level
and powers the unit on/off
4
5
6
7
2
3
8
9
10
11
12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lowrance HDS Gen3 Touch
Summary of Contents for Lowrance HDS Gen3 Touch
- Page 1 HDS Gen3 Touch Quick Start Guide Overview No. Key Function Touch screen Pages key Activates the home page Cursor keys Pans the cursor, moves through menu items and adjusts values Zoom out/ Zooms the screen; press keys simultaneously to save a Man...
-
Page 2: The Power Key
Disables the touchscreen Allows user to adjust panel size when multiple panels are Adjust splits displayed Data overlay Turns on/off data overlay display Edit overlay Allows editing of the size, position and content of overlay data HDS Gen3 Touch | QuickStart Guide... -
Page 3: The Home Page
When you start up the unit for the first time, or after restoring defaults, the configuration dialog appears. Select Configure this device to use the configuration wizard to configure the unit and other networked devices. Select Close to manually configure settings. HDS Gen3 Touch | QuickStart Guide... -
Page 4: Selecting Pages
Selecting pages Tap the page icon Accessing quick splitscreen pages (quick splits) Press and hold the page icon Customizing favorite pages Several panel configurations are available: HDS Gen3 Touch | QuickStart Guide... -
Page 5: Data Overlay
Restoring a page menu ¼ Note: Menu You can also press and hold the key for three seconds to hide a page Menu menu. The menu is restored by pressing the key. Settings menu Data overlay HDS Gen3 Touch | QuickStart Guide... -
Page 6: Using The Cursor
Tap the screen or press the Cursor keys to activate the cursor. Drag your finger in any direction to pan the screen. Select Clear Cursor or press the Exit key to remove the cursor from the page. Multi-touch zooming HDS Gen3 Touch | QuickStart Guide... -
Page 7: Creating A Waypoint
Press the dedicated waypoint key twice to quickly save a waypoint. Sonar Adjusting sonar settings Sensitivity and Colorline are adjusted by dragging the slide bar vertically. The slide bar is accessed by tapping Sensitivity or Colorline on the Sonar menu. HDS Gen3 Touch | QuickStart Guide... -
Page 8: Viewing Sonar History
Fishing modes Consists of preset packages of sonar settings designed for specific fishing conditions. ¼ Note: Use fresh water fishing mode when fishing in less than 60 feet of water. Viewing sonar history Sonar history can be viewed by dragging your finger horizontally across the screen, or across the history preview bar, at the top of the screen.
