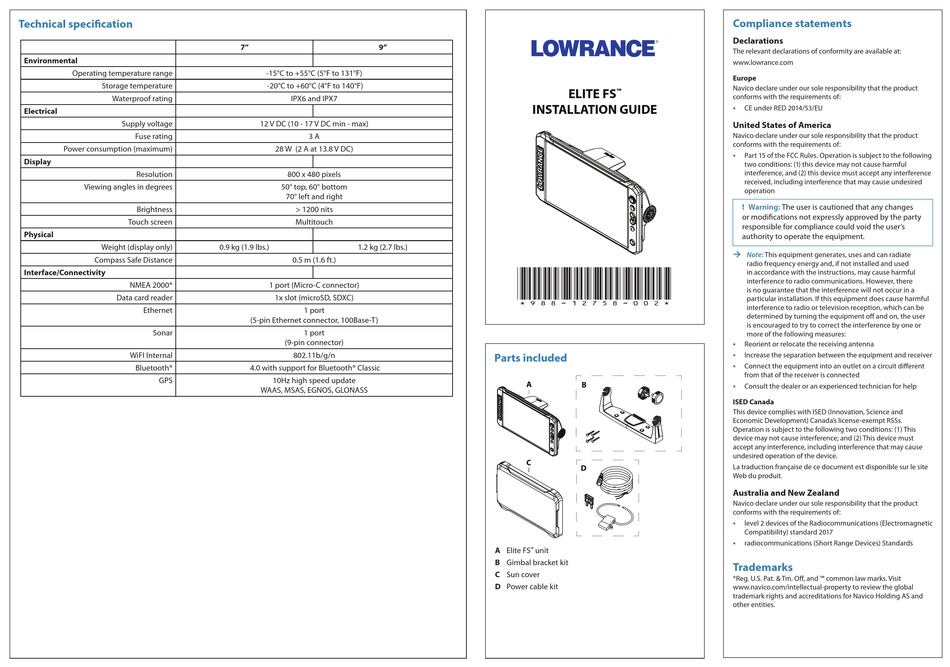

Lowrance ELITE FS Manual
Hide thumbs Also See for ELITE FS:

Advertisement

Technical specification

Environmental
Operating temperature range
Storage temperature
Waterproof rating
Electrical
Supply voltage
Fuse rating
Power consumption (maximum)
Display
Resolution
Viewing angles in degrees
Brightness
Touch screen
Physical
Weight (display only)
Compass Safe Distance
Interface/Connectivity
NMEA 2000®
Data card reader
Ethernet
Sonar
WiFI Internal
Bluetooth®
GPS
7"
9"
-15°C to +55°C (5°F to 131°F)
-20°C to +60°C (4°F to 140°F)
IPX6 and IPX7
12 V DC (10 - 17 V DC min - max)
3 A
28 W (2 A at 13.8 V DC)
800 x 480 pixels
50° top, 60° bottom
70° left and right
> 1200 nits
Multitouch
0.9 kg (1.9 lbs.)
1.2 kg (2.7 lbs.)
0.5 m (1.6 ft.)
1 port (Micro-C connector)
1x slot (microSD, SDXC)
1 port
(5-pin Ethernet connector, 100Base-T)
1 port
(9-pin connector)
802.11b/g/n
4.0 with support for Bluetooth® Classic
10Hz high speed update
WAAS, MSAS, EGNOS, GLONASS
ELITE FS
INSTALLATION GUIDE
*988-12758-002*

Parts included

A
B
C
D
A Elite FS
unit
B Gimbal bracket kit
C Sun cover
D Power cable kit

Compliance statements

Declarations
The relevant declarations of conformity are available at:
www.lowrance.com
Europe
Navico declare under our sole responsibility that the product
conforms with the requirements of:
CE under RED 2014/53/EU
United States of America
Navico declare under our sole responsibility that the product
conforms with the requirements of:
Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause undesired
operation
! Warning:
The user is cautioned that any changes
or modifications not expressly approved by the party
responsible for compliance could void the user's
authority to operate the equipment.
¼
Note:
This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that the interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different
from that of the receiver is connected
Consult the dealer or an experienced technician for help
ISED Canada
This device complies with ISED (Innovation, Science and
Economic Development) Canada's license-exempt RSSs.
Operation is subject to the following two conditions: (1) This
device may not cause interference; and (2) This device must
accept any interference, including interference that may cause
undesired operation of the device.
La traduction française de ce document est disponible sur le site
Web du produit.
Australia and New Zealand
Navico declare under our sole responsibility that the product
conforms with the requirements of:
level 2 devices of the Radiocommunications (Electromagnetic
Compatibility) standard 2017
radiocommunications (Short Range Devices) Standards
Trademarks
®Reg. U.S. Pat. & Tm. Off, and ™ common law marks. Visit
www.navico.com/intellectual-property to review the global
trademark rights and accreditations for Navico Holding AS and
other entities.
