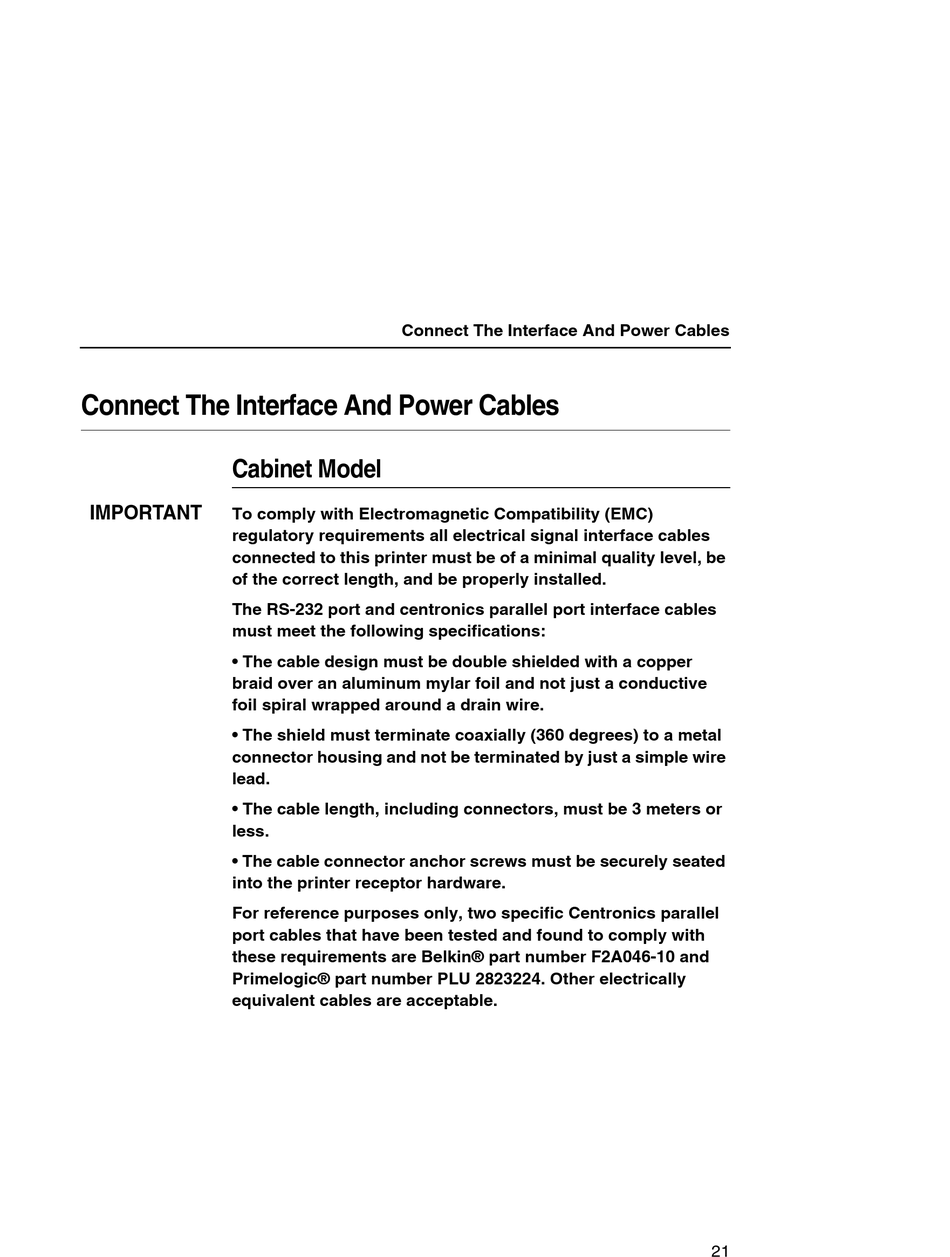

Connect The Interface And Power Cables

Cabinet Model

Connect The Interface And Power Cables
Cabinet Model
IMPORTANT
To comply with Electromagnetic Compatibility (EMC)
regulatory requirements all electrical signal interface cables
connected to this printer must be of a minimal quality level, be
of the correct length, and be properly installed.
The RS-232 port and centronics parallel port interface cables
must meet the following specifications:
• The cable design must be double shielded with a copper
braid over an aluminum mylar foil and not just a conductive
foil spiral wrapped around a drain wire.
• The shield must terminate coaxially (360 degrees) to a metal
connector housing and not be terminated by just a simple wire
lead.
• The cable length, including connectors, must be 3 meters or
less.
• The cable connector anchor screws must be securely seated
into the printer receptor hardware.
For reference purposes only, two specific Centronics parallel
port cables that have been tested and found to comply with
these requirements are Belkin® part number F2A046-10 and
Primelogic® part number PLU 2823224. Other electrically
equivalent cables are acceptable.
