Adjust The Paper Fence – Cabinet Model
Adjust The Paper Fence – Cabinet Model
Left Adjustment
Hole (5)
Paper Fence
Center Post

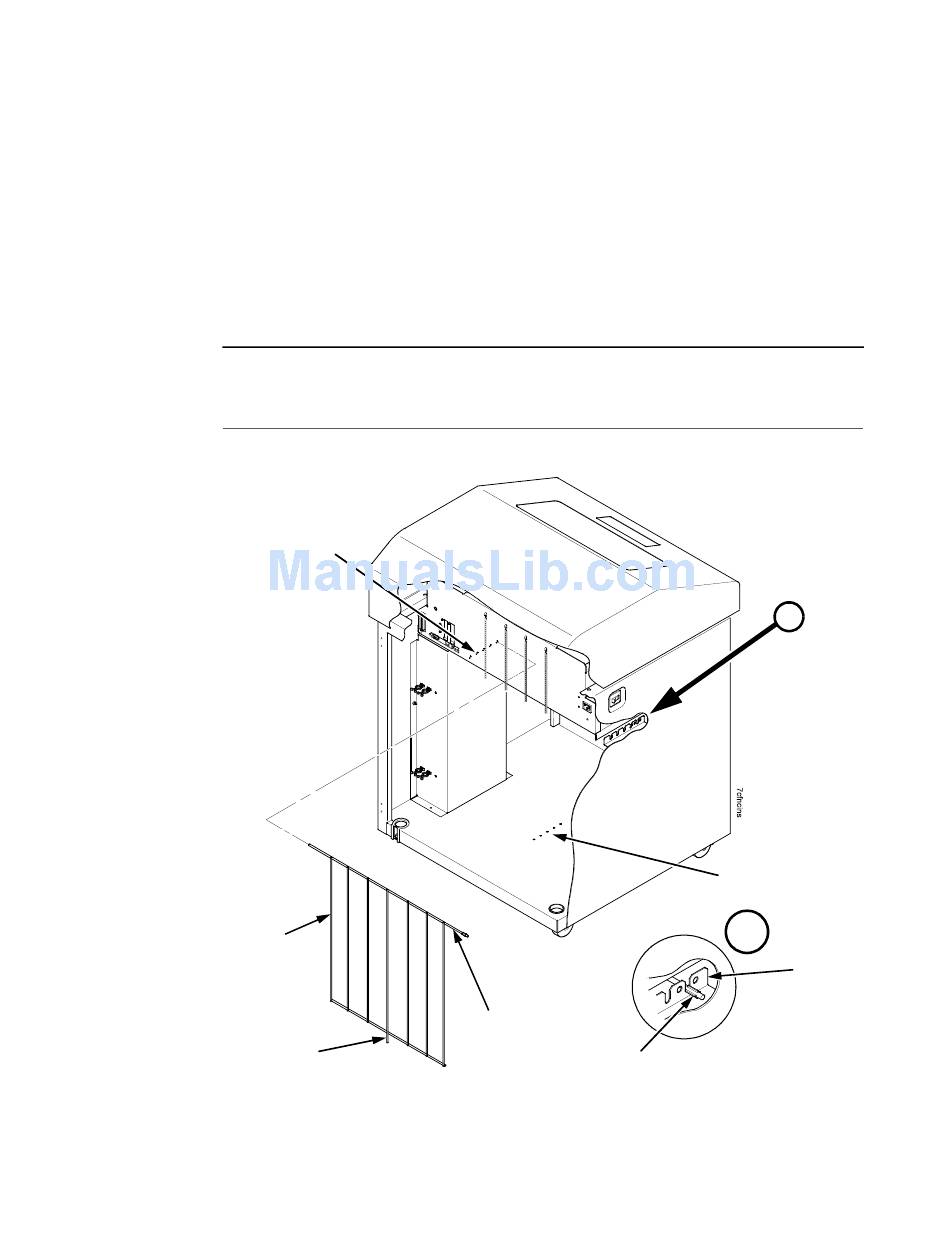

Figure 30. Adjusting the Paper Fence
1. Insert the left side of the paper fence upper bar into one of the
left adjustment holes.
2. Insert the center post into the corresponding bottom adjustment
hole.
40
Paper Fence
Upper Bar
Finned End (of Paper
Fence Upper Bar)
A
Bottom Adjustment
Hole (5)
A
Bracket
