Install Basic Components

The following procedures describe how to attach the printed
overlays to the control panel and install the printer ribbon and
paper.

Attach The Control Panel Overlays

Control Panel Assembly
P5000 Series Pedestal Models

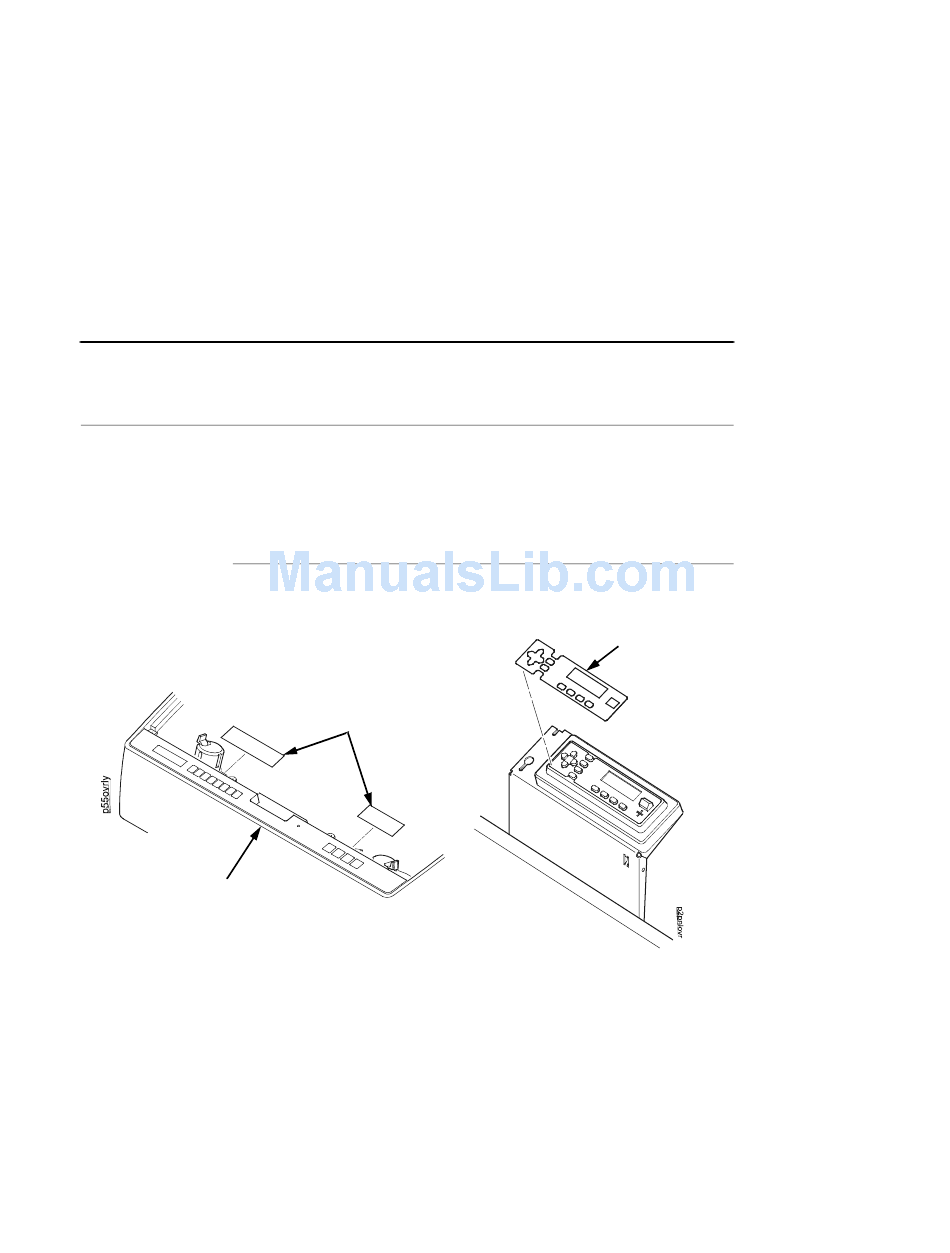

Figure 23.Attaching Control Panel Overlays
1. Choose the overlay labels in the appropriate language.
2. Cabinet models: Open the printer cover, peel the protective
3. Pedestal models: Open the printer cover and insert the
Overlay Labels (2)
backing off the overlay, and press the overlay into place.
overlay labels by sliding them behind the control panel
assembly in the appropriate place.
Attach The Control Panel Overlays
Overlay Label
All Models
