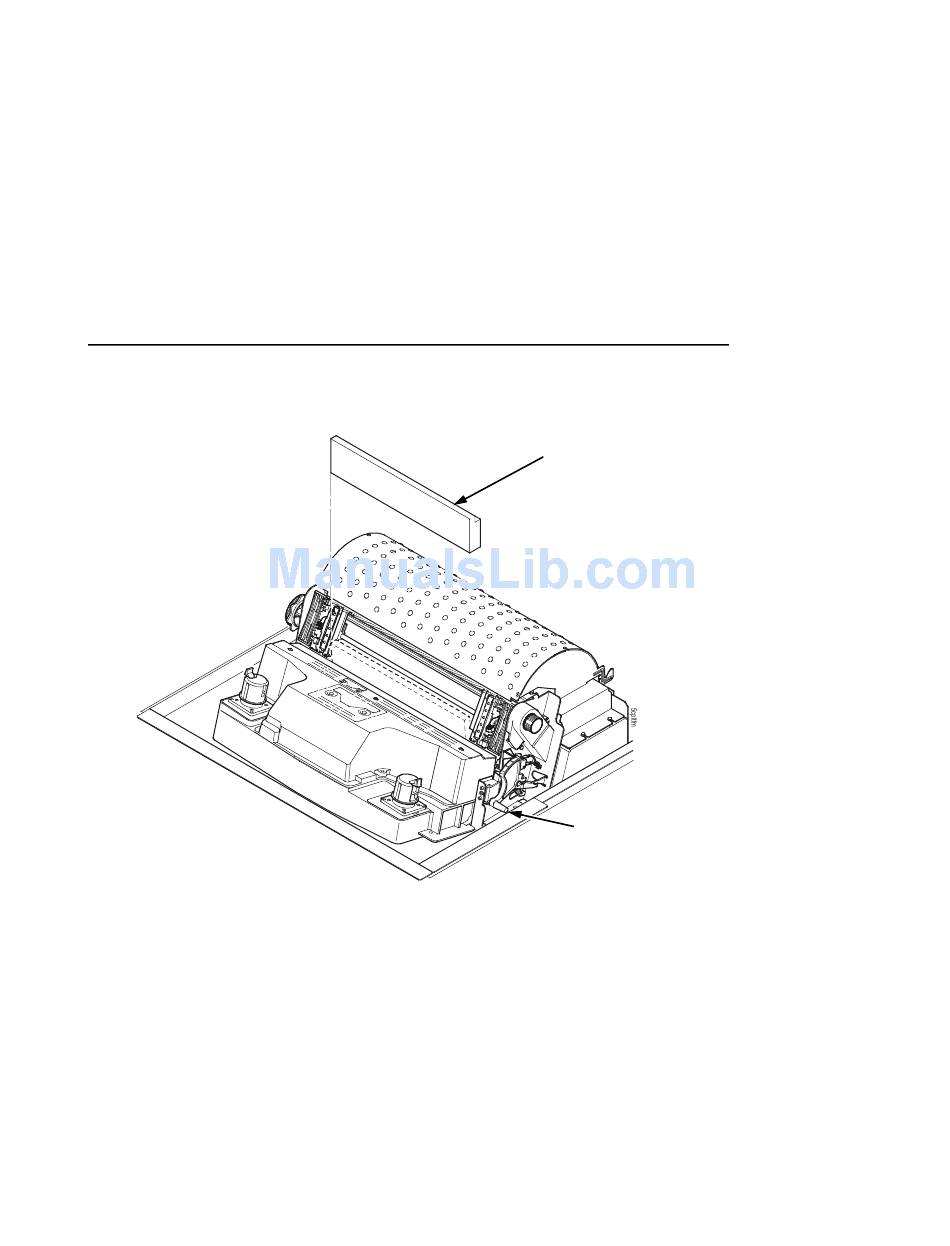

Figure 8. Removing the Platen Protective Foam - P5000 Series Models

15. Rotate the forms thickness lever downward to position "A."

16. Rotate the platen protective foam toward the front of the printer

and out from under the support shaft.

NOTE: The P5220 printer models do not have a platen protective

foam.

Remove Packing Materials

Platen

Protective Foam

Forms Thickness

Lever
