Printronix P5 Quick Setup Manual page 26

Connect The Interface And Power Cables
Network
10/100Base-T

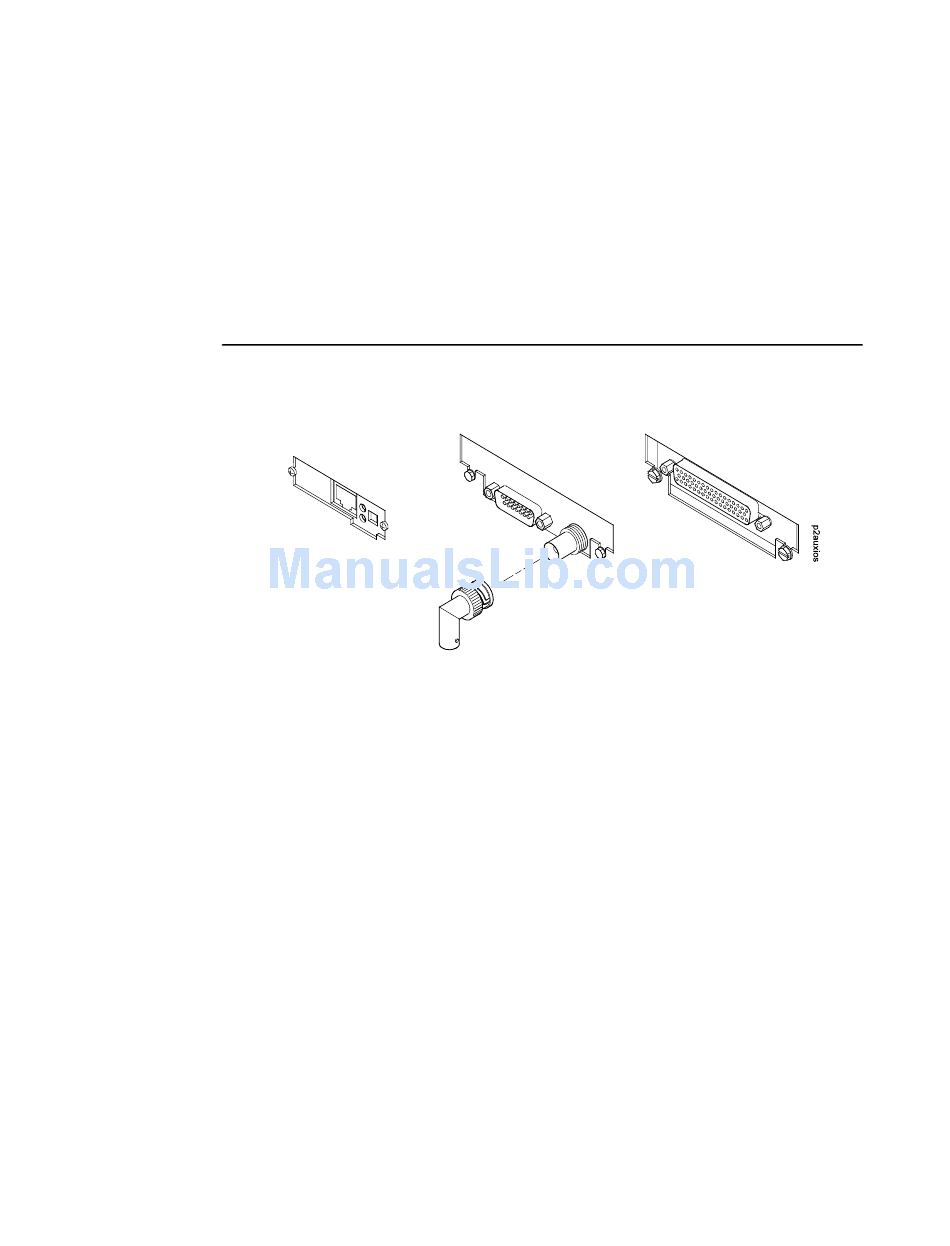

Figure 22. Optional Interfaces for the Auxiliary I/O
1. Remove the cover from the I/O connector you have selected.
2. Attach the I/O cable connector to the printer interface
connector.
3. Guide the AC power cable up through the hole in the lower right
back corner of the cabinet (see Figure 18.)
4. Thread the power cable inside the bracket where the gas
spring is attached.
5. Plug the power cable into the printer AC power connector, then
into the AC power outlet.
26
Coax/Twinax
Dataproducts
Long Line
