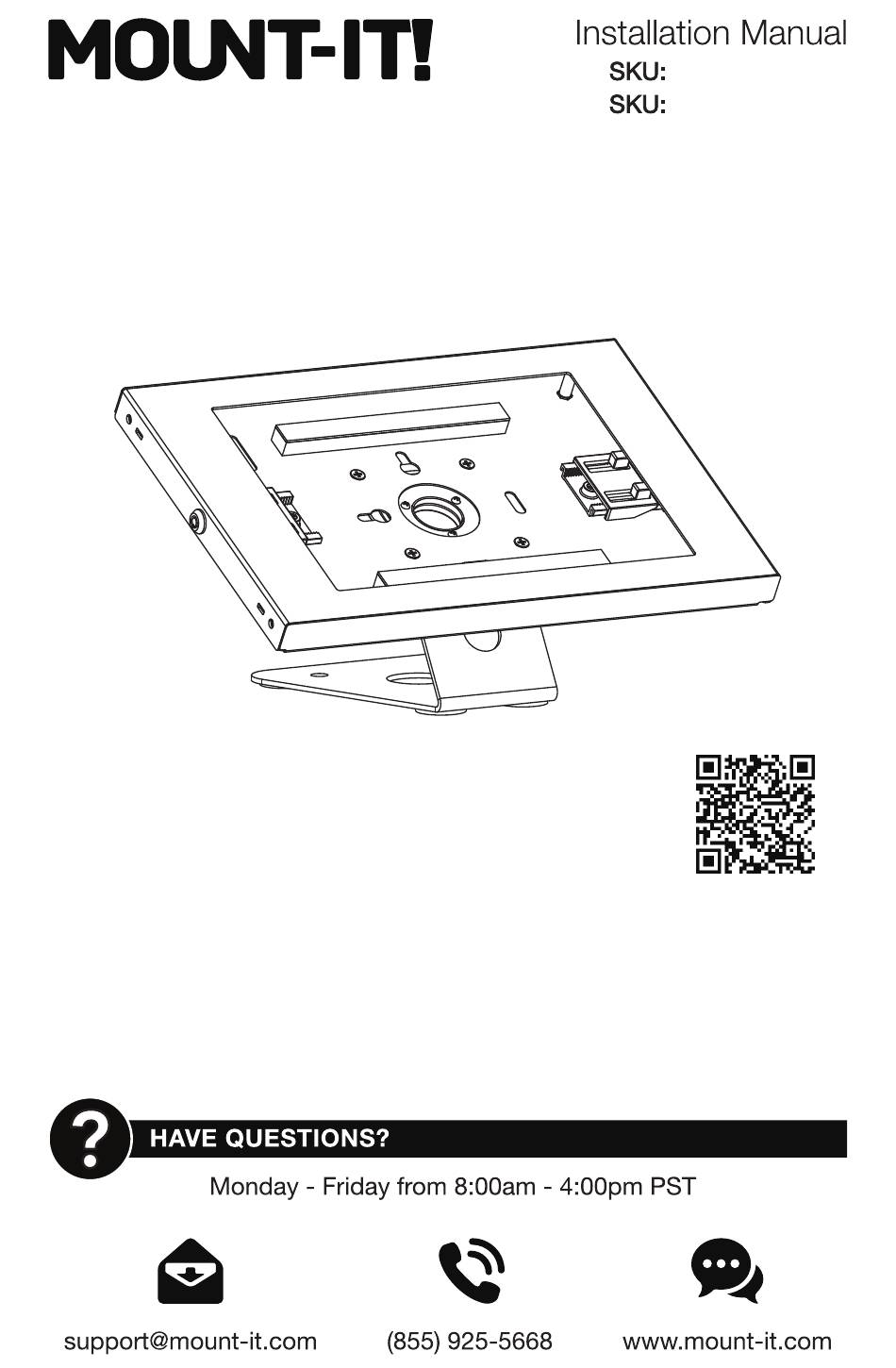

- Page 1 MI-3775B_G10 MI-3775W_G10 Please scan this QR code to visit the product page. ANTI-THEFT COUNTERTOP TABLET STAND...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! Mount-It! A (x1) B (x1) C (x1) D (x4) E (x4) Anti-Theft Tablet Case Mount Rubber Pad M5x6 F (x2) G (x2) H (x1) I (x1) J (x1) ST4.8x38 Concrete Anchor Tablet Adapter 1 Tablet Adapter 2 Tablet Adapter 3...
- Page 3 Step 1 Step 1a Location and Use Options B. Wood Surface Installation A. Countertop Stand Option • To secure the stand base to a wood surface, use a 7/50″ bit and drill holes to a depth of 1.6″ and secure the stand base using 2x Lag Screws (#F).
- Page 4 Step 1b C. Concrete Surface Installation A. Concrete/Brick Wall Installation • To secure the stand base to a concrete surface, use a 5/16″ Bit and drill holes to a depth of 1.8″. Clear any dust and debris from the holes and insert 2x Concrete Anchors (#G). Secure the stand base using •...
- Page 5 Step 2 B. Solid Wood Surface Wall Mounting Option Open the Tablet Case • Using a bubble level to ensure straightness hold the Mount (#B) to the desired location on the wall and mark the center of the mounting holes with a pencil. •...
- Page 6 Step 3 Insert the Tablet Attach the Tablet Case to the Mount • Select the appropriate Tablet Adapter for your tablet by referencing the compatibility guide below. • Attach the back half of the Tablet Case to the end of the Mount (#B) using Bolts (#E) through the 4 bolt holes on the interior of the Case in the orientation shown here.
- Page 7 Step 5 Step 6 Cable Management Rotation • Cables can be run through the back of the case as shown here, and through the base of the mount as • The tablet case can be rotated 90 degrees to alternate between landscape and portrait orientation. needed.
