4. Volume adjustment of the audio assigned channel: directly press the VOL+/VOL- button in the audio
control area to control the volume, or adjust the position of the audio faders of CH1 and CH2 up and down,
the corresponding menu part can also display the current volume. The volume value is in the range of
0-100. As shown in the figure on the right, the volume of the first channel has increased from 44 to 100.
The operation of adjusting the volume of the second channel of mixing is the same as that of adjusting the
volume of the first channel of mixing.
Volume fader MASTER: Represents the master volume fader, you need to push this fader to the top in the
mix follow mode.

How to use listen audio：
Operate the audio control area, press the MUTE button repeatedly to select the
monitoring source, the corresponding menu status bar will change in real time
according to your selection (as shown in the figure below)
The factory default of the monitor source channel is PGM, the channel selection
of the monitor source is IN1, IN2, IN3, IN4, IN5, IN6, PGM, AUX_IN, and the
3.5mm headphone hardware interface is on the side of the switcher
Select PGM for the earphone monitor channel, and adjust the earphone monitor
volume through the red fader of the mixer; select the IN1, IN2, IN3, IN4, IN5, IN6,
AUX_IN audio channel, and the earphone monitor fixed volume cannot be
adjusted.

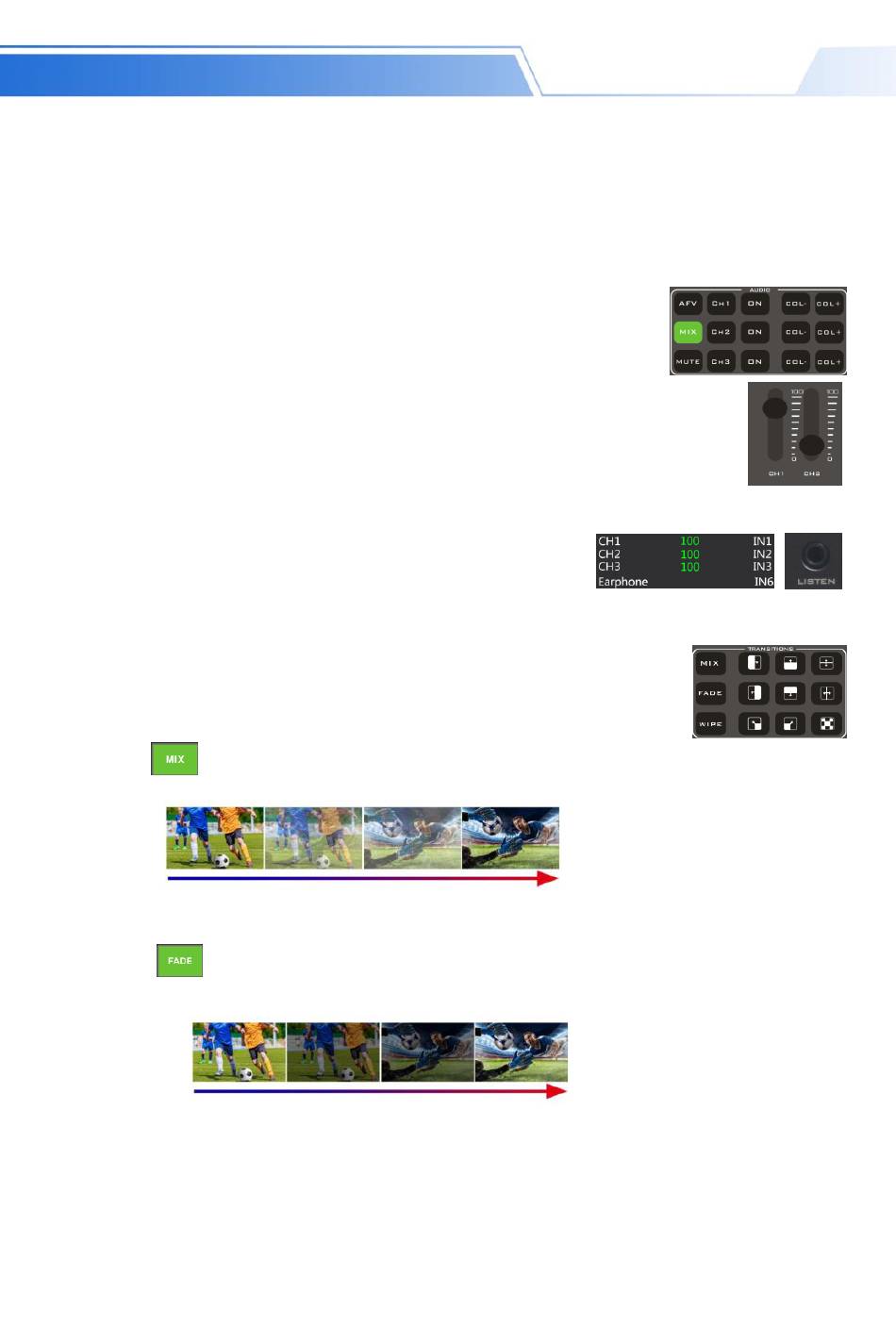

4.1.2.3 Transition Effect Control Area

There are 3 transition modes:
MIX transitions, FADE, and Wipes, where the Wipes
include: up, down, left, and right.

MIX Transition
MIX special effects are transition effects. After setting the transition, the main
output will fade from the original live picture and then transition to the new live
picture until it completely disappears.
Click in the special effect control area (green light is displayed after
pressing), and then click AUTO or CUT or T-bar to switch. The effect is shown
below.
MIX transition effects, superimposed on the A picture and gradually superimposed the B picture, until the
transition to the end, the picture is completely replaced by the B picture

FADE Transition
Click in the special effect control area (green light is displayed after pressing), and then click
AUTO or CUT or T-bar to switch, the effect picture is below.
FADE in and fade out effects, A gradually darkens the picture until it is completely black, and then gradually
changes from black to B picture.
